580.328260 (8650-0) - Craftsman 7,500 Watt Portable Generator Alternator Parts Diagram

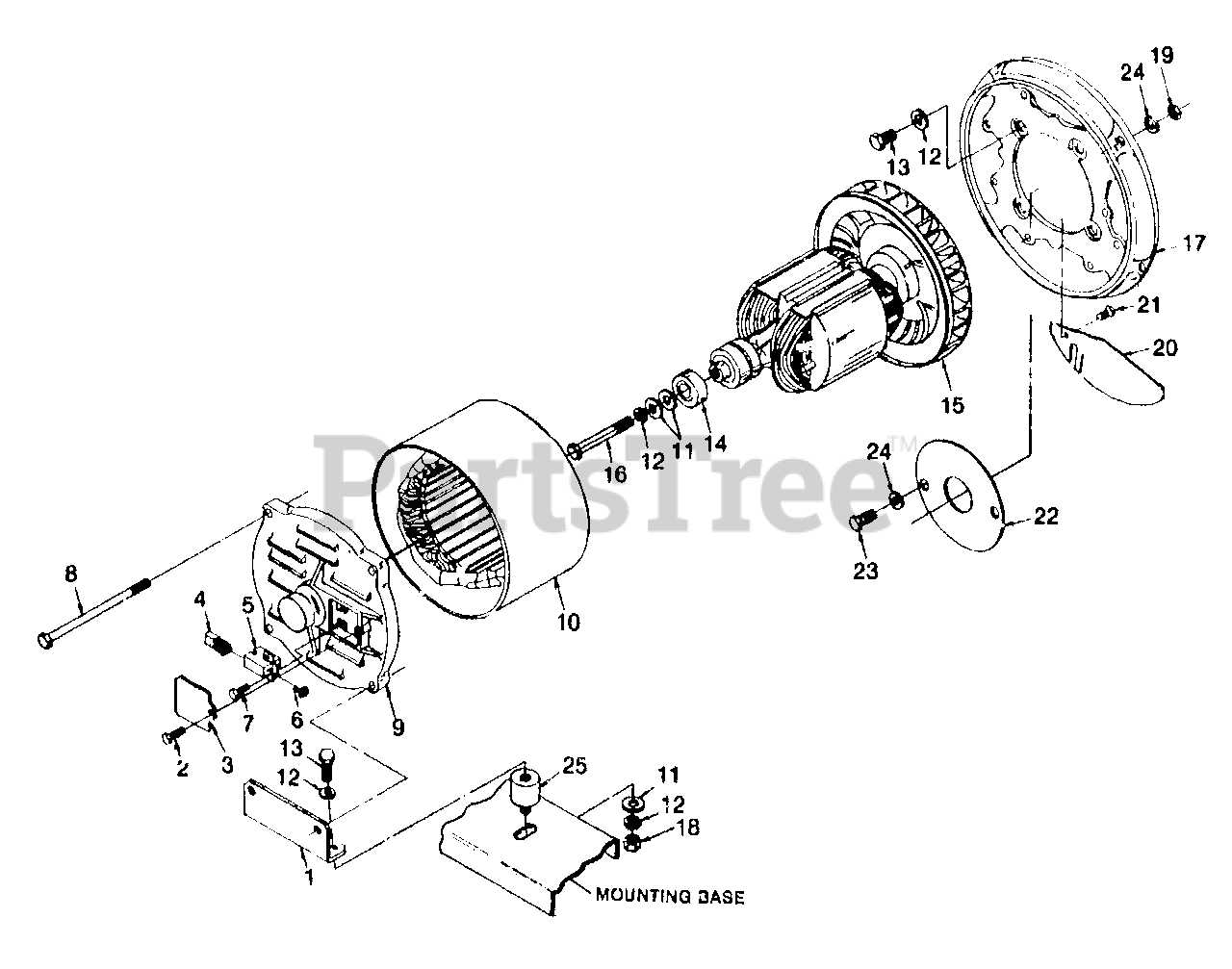

7,500 Watt Portable Generator

Alternator Parts Diagram

  • Title

1

Briggs & Stratton 42384

SUPPORT, Rear Generator

$

$

Currently unavailable

2

Briggs & Stratton 26902

SCREW - No. 8-32 x 1/4"

$

$

Not available

3

Briggs & Stratton 43844

COVER, Inspection
(Superseded to 7043844YP)

$34.99

$

In Stock, Qty 20+

0

4

Briggs & Stratton A24044A

BRUSH, ASSEMBLY
(Superseded to A24044AGS)

$11.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 23877D

HOLDER, Brush
(Superseded to 23877DGS)

$11.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 25105

SCREW - No. 6-32 x 1/4"
(Superseded to 25105GS)

$1.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 24488

SCREW - No. 8-32 x 5/8"

$

$

Currently unavailable

8

Briggs & Stratton 29810

CAPSCREW, Hex Head - 5/16"-24 x 12"

$

$

Currently unavailable

9

Briggs & Stratton 49410

CARRIER, Rear Bearing
(Superseded to 49410AGS)

$

$

Not available

10

Briggs & Stratton 50922

STATOR ASSEMBLY

$

$

Currently unavailable

11

Briggs & Stratton 22131

WASHER, Flat - 3/8"
(Superseded to 22131GS)

$2.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 22237

WASHER, Lock - 3/8"

$

$

Not available

13

Briggs & Stratton 23152

CAPSCREW, Hex Head - 3/8"-16 x 3/4"
(Superseded to 5101614)

$450.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 24049

BEARING

$

$

Not available

15

Briggs & Stratton 59795

ROTOR ASSEMBLY
(Superseded to 7052268YP)

$107.99

$

In Stock, Qty 7

0

16

Briggs & Stratton 50924

CAPSCREW, Hex Head - 3/8"-16 x 11-1/8"

$

$

Currently unavailable

17

Briggs & Stratton 55239

CASTING, Adapter

$

$

Currently unavailable

18

Briggs & Stratton 22241

NUT, Hex - 3/8"-16

$

$

Not available

19

Briggs & Stratton 24114

NUT, Hex - 5/16"-24

$

$

Not available

20

Briggs & Stratton 56619

GUARD, Fan

$

$

Currently unavailable

21

Briggs & Stratton 46852

SCREW - No. 10-32 x 1/4"

$

$

Not available

22

Briggs & Stratton 55277

GUARD, Center

$

$

Not available

23

Briggs & Stratton 22165

CAPSCREW, Hex Head - 5/16"-18 x 1/2"
(Superseded to 5022165)

$80.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 22129

WASHER, Lock - 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

25

Briggs & Stratton 38353

DAMPENER, Vibration
(Superseded to 38353GS)

$39.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 59797

MANUAL, Owner's
(Superseded to 59797GS)

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 47496

DECAL, Warranty

$

$

Currently unavailable
