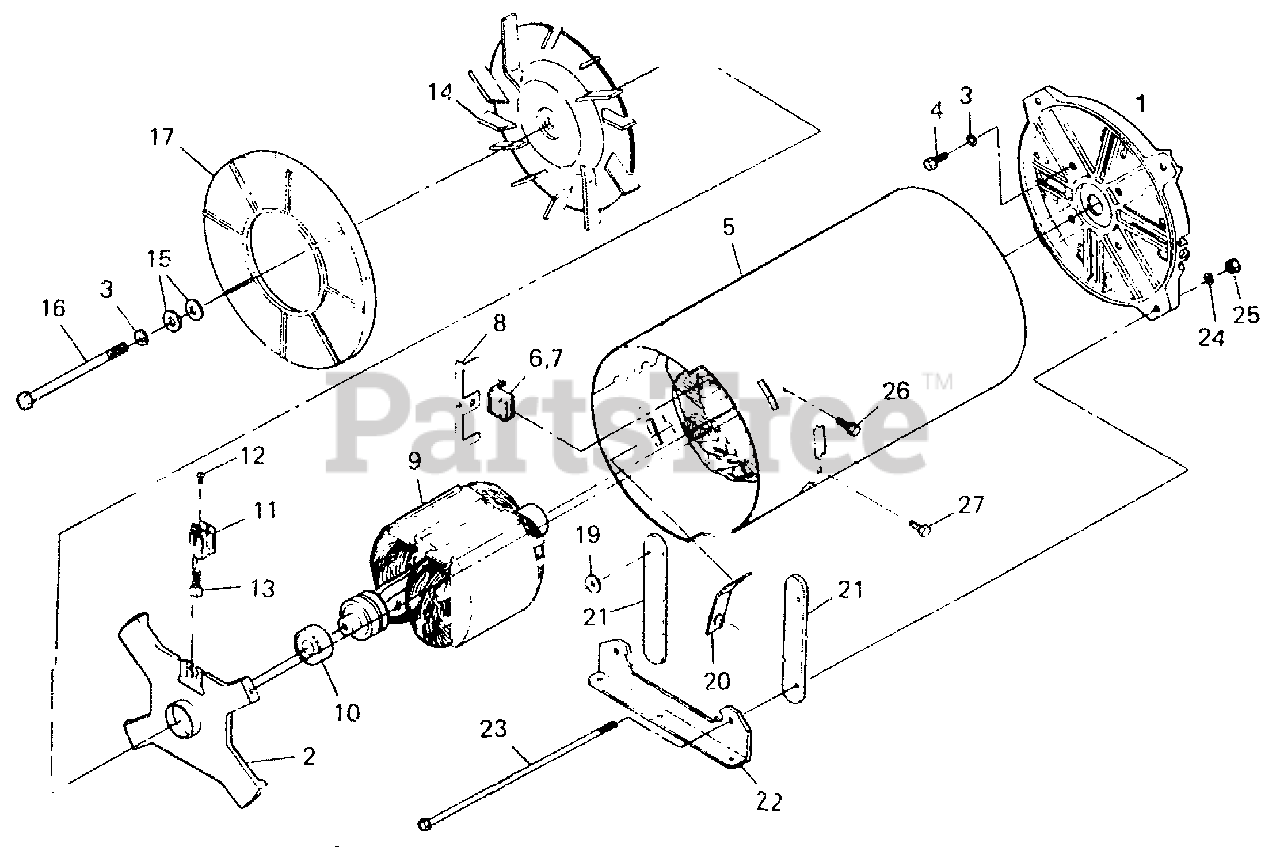

580.328251 (8649-1) - Craftsman 5,000 Watt Portable Generator Alternator Parts Diagram

5,000 Watt Portable Generator

Alternator Parts Diagram

  • Title
1

Briggs & Stratton 45631E

HOUSING, Adapter

$

$

Currently unavailable

2

Briggs & Stratton 44943

PLATE, Bearing Carrier

$

$

Currently unavailable

3

Briggs & Stratton 22129

WASHER, Lock - 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

4

Briggs & Stratton 22336

CAPSCREW, Hex Head - 5/16 24 x 3/4" Long

$

$

Not available

5

Briggs & Stratton 44961W

STATOR ASSEMBLY

$

$

Currently unavailable

6

Briggs & Stratton 22694

RECEPTACLE, White
(Superseded to 22694GS)

$5.99

$

In Stock, only 1 left!

0

7

Briggs & Stratton 43994

RECEPTACLE, Red

$

$

Not available

8

Briggs & Stratton 46079

RETAINER, Receptacle

$

$

Currently unavailable

9

Briggs & Stratton 44391S

ROTOR ASSEMBLY

$

$

Currently unavailable

10

Briggs & Stratton 24049

BEARING, Ball

$

$

Not available

11

Briggs & Stratton 23877D

HOLDER, Brush
(Superseded to 23877DGS)

$11.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 25105

WASHER, Lock and SCREW - No. 6-32 x 1/4" Long
(Superseded to 25105GS)

$1.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton A24044A

BRUSH
(Superseded to A24044AGS)

$11.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 44331

FAN, Alternator

$

$

Not available

15

Briggs & Stratton 22131

WASHER, Flat
(Superseded to 22131GS)

$2.99

$

Usually ships in 2-12 days

0

16

$

$

Currently unavailable

17

Briggs & Stratton 44357

COVER, Fan
(Superseded to 44357GS)

$17.99

$

In Stock, only 1 left!

0

18

Briggs & Stratton 24413

SCREW, Taptite - No. 10-32 x 1/2" Long

$

$

Not available

19

Briggs & Stratton 22145

WASHER, Flat - 5/16"

$

$

Not available

20

Briggs & Stratton 44722

DIODE & PLATE, Battery Charge

$

$

Currently unavailable

21

Briggs & Stratton 44338

BAR, Stator Bolt

$

$

Currently unavailable

22

Briggs & Stratton 44392A

SUPPORT, Rear Alternator

$

$

Currently unavailable

23

Briggs & Stratton 44395B

BOLT, Stator - 8 1/4" Long

$

$

Currently unavailable

24

Briggs & Stratton 22097

WASHER, Lock - 1/4"
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 22127

NUT, Hex - 1/4"

$

$

Not available

26

Briggs & Stratton 24489

SCREW, Taptite - No. 10-32 x 3/8" Long

$

$

Currently unavailable

Briggs & Stratton 60505

MANUAL, Owner's
(Superseded to 60505GS)

Note: Before Ordering call Generac for quantity required.
