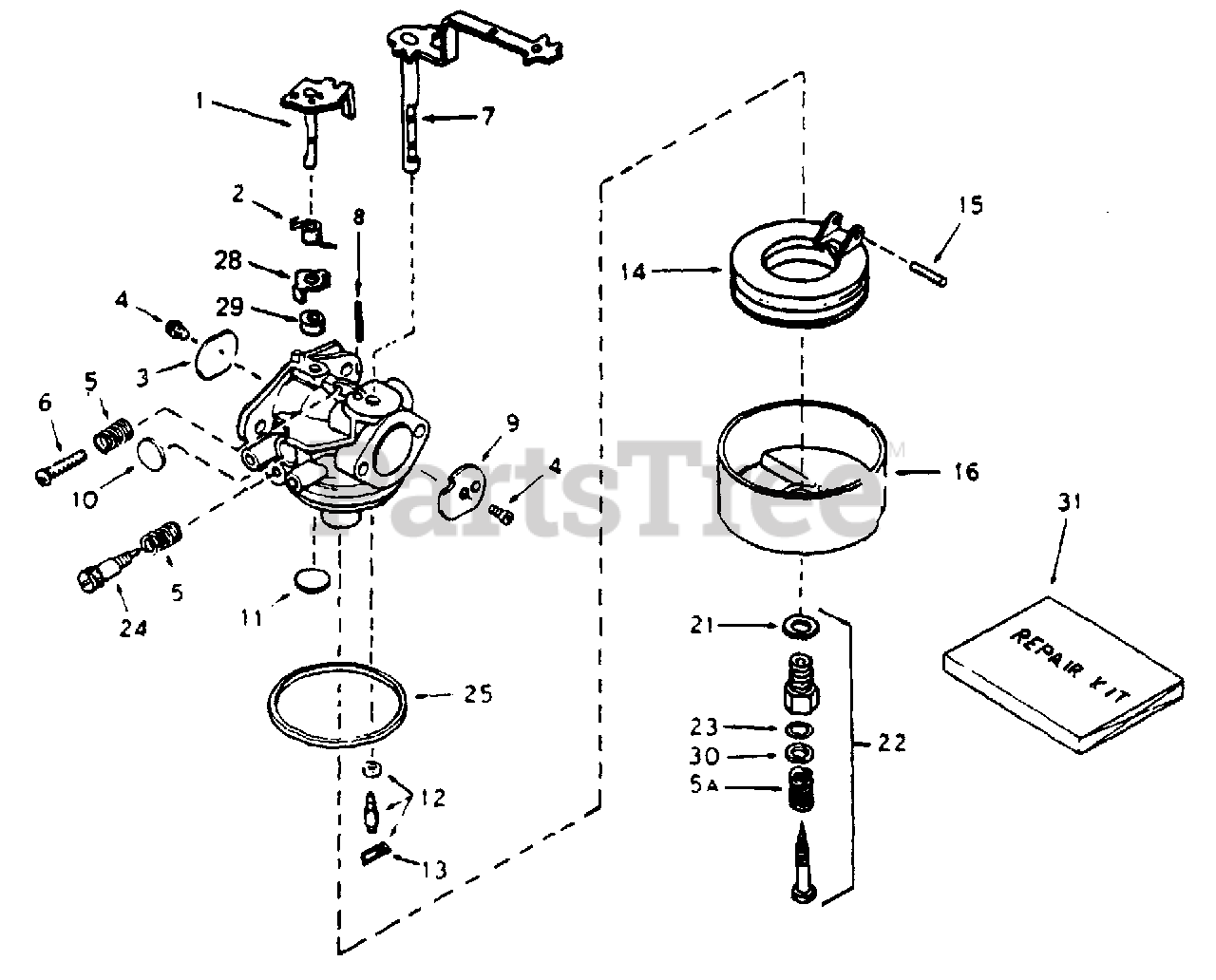

580.328250 (8649-0) - Craftsman 5,000 Watt Portable Generator Carburetor No. 631983 Parts Diagram

5,000 Watt Portable Generator

Carburetor No. 631983 Parts Diagram

  • Title

Briggs & Stratton 631983

Carburetor

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

1

Briggs & Stratton 631776

Shaft & Lever Assembly, Throttle

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

2

Briggs & Stratton 631970

Spring, Throttle return

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

3

Briggs & Stratton 631778

Shutter, Throttle

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

4

Briggs & Stratton 650506

Screw, Rd. hd. 4-40 x 3/16

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

5

Briggs & Stratton 630766

Spring, Idle regulating screw

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

5A

Briggs & Stratton 630738

Spring, Main adjustment screw

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

6

Briggs & Stratton 650417

Screw, Idle regulating

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

7

Briggs & Stratton 631812

Shaft & Lever Assembly, Choke

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

8

Briggs & Stratton 630735

Spring, Choke return

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

9

Briggs & Stratton 631753

Shutter, Choke

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

10

Briggs & Stratton 630748

Plug, Welch

Note: Before ordering call Generac for quantity required. Included in Repair Kit, P/N 631978

$

$

Currently unavailable

11

Briggs & Stratton 631027

Plug, Welch

Note: Before ordering call Generac for quantity required. Included in Repair Kit, P/N 631978

$

$

Currently unavailable

12

Briggs & Stratton 631021

Inlet Needle, Seat & Assembly

Note: Before ordering call Generac for quantity required. (Incl. No. 13) and Included in Repair Kit, P/N 631978

$

$

Currently unavailable

13

Briggs & Stratton 631022

Clip, Inlet needle

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

14

Briggs & Stratton 631023

Float, Carburetor

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

15

Briggs & Stratton 631024

Shaft, Float

Note: Before ordering call Generac for quantity required. Included in Repair Kit, P/N 631978

$

$

Currently unavailable

16

Briggs & Stratton 631867

Bowl, Float

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

21

Briggs & Stratton 27110

Gasket, Bowl-to-body
(Superseded to 7027110YP)

Note: Before ordering call Generac for quantity required.

$11.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 631583

Adjustment Screw Assembly, Main

Note: Before ordering call Generac for quantity required. (Incl. Nos. 5A, 21, 23 & 30) also Included in Repair Kit, P/N 631978

$

$

Currently unavailable

23

Briggs & Stratton 630740

"O" Ring, Adjustment screw

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

24

Briggs & Stratton 630898

Screw, Idle adjustment

Note: Before ordering call Generac for quantity required. Included in Repair Kit, P/N 631978

$

$

Currently unavailable

25

Briggs & Stratton 631028

Gasket, Bowl-to-body

Note: Before ordering call Generac for quantity required. Included in Repair Kit, P/N 631978

$

$

Currently unavailable

28

Briggs & Stratton 631972

Retainer, Seal

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

29

Briggs & Stratton 631971

Seal, Dust

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

30

Briggs & Stratton 630739

Washer, Flat

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

31

Briggs & Stratton 631978

Repair Kit

Note: Before ordering call Generac for quantity required. (Includes items 10-12, 15, 22, 24, & 25)

$

$

Currently unavailable
