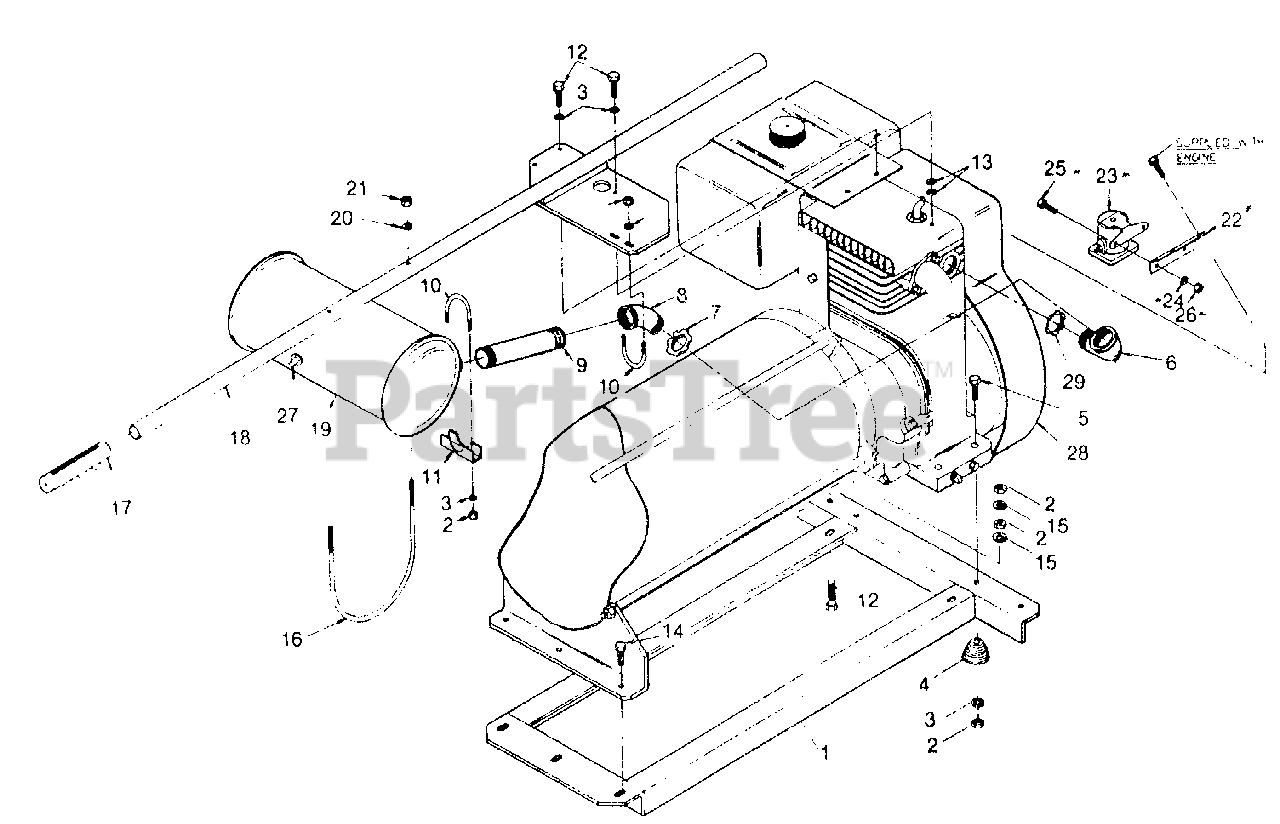

580.328241 (8648-1) - Craftsman 3,750 Watt Portable Generator Mounting Base Parts Diagram

3,750 Watt Portable Generator

Mounting Base Parts Diagram

  • Title

1

Briggs & Stratton 45611

BASE, Mounting

$

$

Currently unavailable

2

Briggs & Stratton 22259

NUT, Hex - 5/16"-18
(Superseded to 22259GS)

$3.49

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 22129

WASHER, Lock - 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

4

Briggs & Stratton 23594

SPRING - Plain

$

$

Currently unavailable

5

Briggs & Stratton 22283

CAPSCREW, Hex Head - 5/16"-18 x 1-1/2"
(Superseded to 22283GS)

$1.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 29381

ELBOW, Reducing - 90 degree

$

$

Currently unavailable

7

Briggs & Stratton 26772

NUT, Pipe Lock - 1"
(Superseded to 26772GS)

$5.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 25472

ELBOW, 45 degree - 1"

$

$

Currently unavailable

9

Briggs & Stratton 25435

NIPPLE, Pipe - 1" x 6"

$

$

Not available

10

Briggs & Stratton 28238

U-BOLT - 1-3/8"

$

$

Currently unavailable

11

Briggs & Stratton 28237

SADDLE, U-Bolt
(Superseded to 7028237YP)

$109.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 22125

CAPSCREW, Hex Head - 5/16"-18 x 1"

$

$

Currently unavailable

13

Briggs & Stratton 22145

WASHER, Flat - 5/16"

$

$

Not available

14

Briggs & Stratton 22142

CAPSCREW, Hex Head - 5/16"-18 x 3/4"
(Superseded to 5022142)

$45.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 27482

WASHER, Shakeproof - 5/16"
(Superseded to 27482GS)

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 27110

U-BOLT - 4-5/8"
(Superseded to 7027110YP)

$11.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 23712

GRIP, Handle

$

$

Currently unavailable

18

Briggs & Stratton 37409

HANDLE, Carrying

$

$

Currently unavailable

19

Briggs & Stratton 48039

MUFFLER, Exhaust

$

$

Currently unavailable

20

Briggs & Stratton 22237

WASHER, Lock - 3/8"

$

$

Not available

21

Briggs & Stratton 22241

NUT, Hex - 3/8"-16

$

$

Not available

22

Briggs & Stratton 24802

BRACKET, Solenoid

$

$

Not available

23

Briggs & Stratton 24492

SOLENOID, Starter

$

$

Currently unavailable

24

Briggs & Stratton 22097

WASHER, Lock - 1/4"
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 22567

CAPSCREW, Hex Head - 1/4"-20 x 1/2"
(Superseded to 7022567YP)

$7.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 22127

NUT, Hex - 1/4"-20

$

$

Not available

27

Briggs & Stratton 26073

PLUG, Pipe - 1/8" NPT

$

$

Currently unavailable

28

Briggs & Stratton 63193

ENGINE - Craftsman
(Superseded to 7063193YP)

Note: Before ordering call Generac for quantity required.

$119.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 26771

NUT, Pipe Lock - 3/4"

$

$

Currently unavailable
