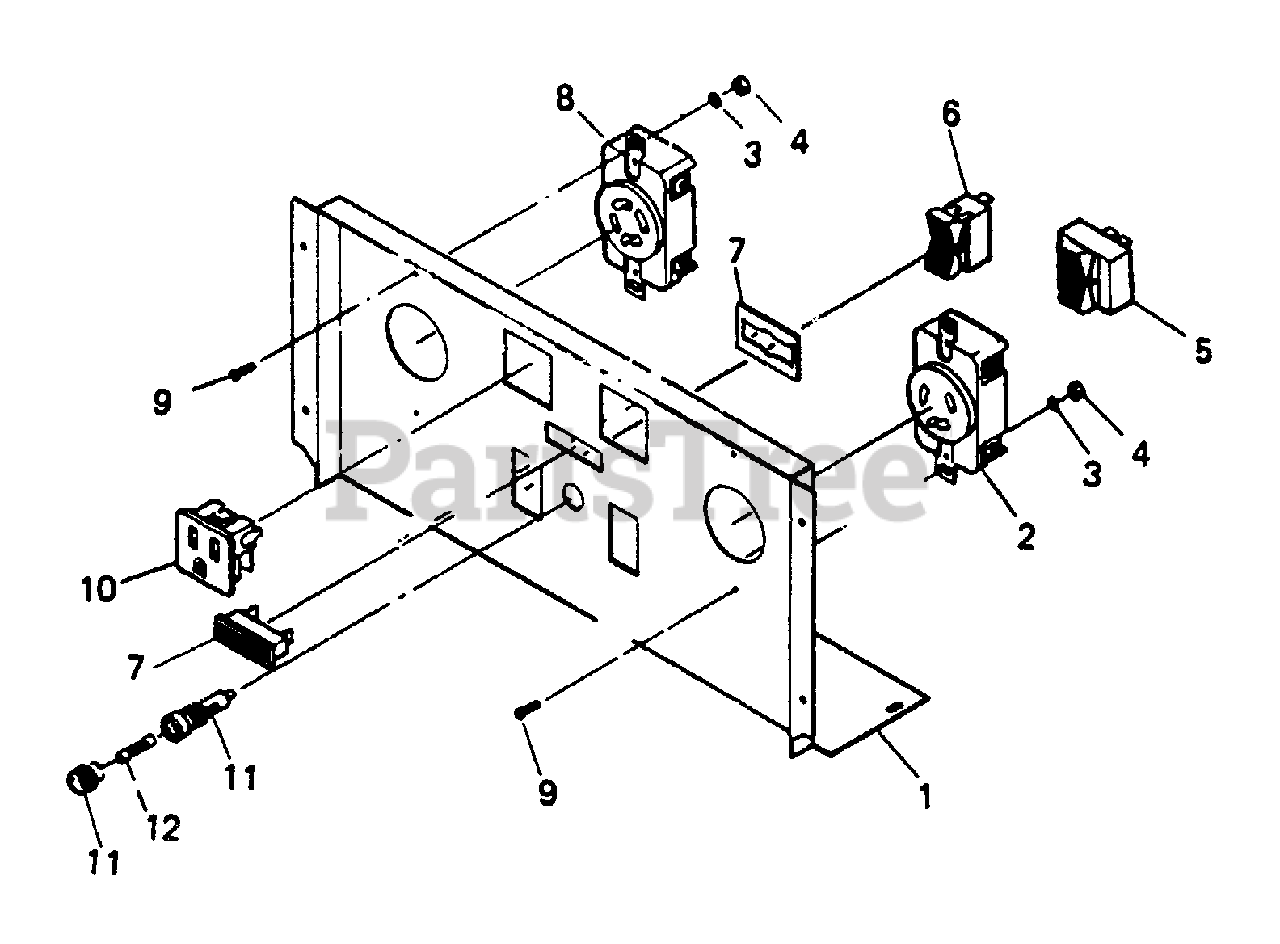

580.328240 (8648-0) - Craftsman 3,750 Watt Portable Generator Panel Parts Diagram

3,750 Watt Portable Generator

Panel Parts Diagram

  • Title

1

Briggs & Stratton 45633

Control Panel
(Superseded to 5045633B)

$16.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 37807

Outlet, 120 Volt, 3-Prong, 30 Amp

$

$

Currently unavailable

3

Briggs & Stratton 22152

Lockwasher, No. 10
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 22158

Hex Nut, No. 10-32
(Superseded to 5022158)

$30.99

$

In Stock, Qty 20+

0

5

Briggs & Stratton 45629

Switch, Full Capacity, 4 PDT

$

$

Currently unavailable

6

Briggs & Stratton 33874

Switch, Start/Stop

$

$

Currently unavailable

7

Briggs & Stratton 27767

Overload Light

$

$

Not available

8

Briggs & Stratton 43482

Outlet, 240 Volt, 4-Prong, 20 Amp
(Superseded to 100522GS)

$34.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 36933

Screw, No. 10-32 x .37" Long

$

$

Not available

10

Briggs & Stratton 22693

Outlet, 120 Volt, 15 Amp
(Superseded to 7022693YP)

$52.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 22669

Fuse Holder

$

$

Currently unavailable

12

Briggs & Stratton 22668

Fuse, 30 Amp

$

$

Currently unavailable

Briggs & Stratton 37806

Connector Plug, 120 Volt, 3-Prong
(Superseded to 100523GS)

Note: Before ordering call Generac for quantity required.

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43483

Connector Plug, 240 Volt, 4-Prong
(Superseded to 100522GS)

Note: Before ordering call Generac for quantity required.

$34.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 38804

Battery Cable, Red

$

$

Currently unavailable

Briggs & Stratton 38805

Battery Cable, Black

$

$

Currently unavailable
