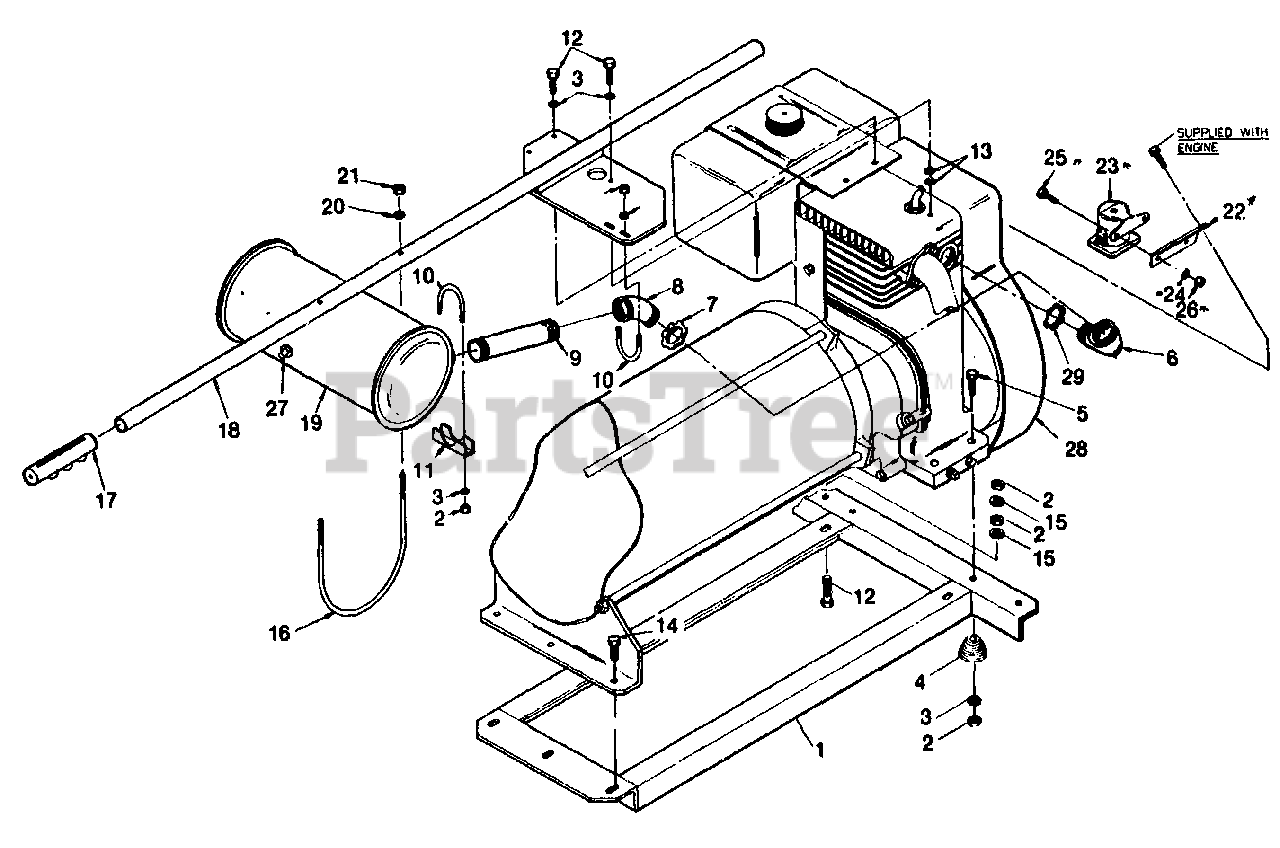

580.328240 (8648-0) - Craftsman 3,750 Watt Portable Generator Mounting Base Parts Diagram

3,750 Watt Portable Generator

Mounting Base Parts Diagram

  • Title

1

Briggs & Stratton 45611

BASE, Mounting

$

$

Currently unavailable

2

Briggs & Stratton 22259

NUT, 5/16-18 Hex
(Superseded to 22259GS)

$3.49

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 22129

WASHER, 5/16 Lock
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

4

Briggs & Stratton 23594

SPRING, Mounting - Plain

$

$

Currently unavailable

5

Briggs & Stratton 22283

CAPSCREW, 5/16-18 x 1-1/12 Hex Head
(Superseded to 22283GS)

$1.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 29381

ELBOW, 90ø Reducing

$

$

Currently unavailable

7

Briggs & Stratton 26772

NUT, 1" Pipe Lock
(Superseded to 26772GS)

$5.49

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 25472

ELBOW, 1" 45ø St.

$

$

Currently unavailable

9

Briggs & Stratton 25435

LPN 1" x 6"

$

$

Not available

10

Briggs & Stratton 28238

U-BOLT, 1-3/8"

$

$

Currently unavailable

11

Briggs & Stratton 28237

SADDLE
(Superseded to 7028237YP)

$109.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 22125

CAPSCREW, 5/16-18 x 1" Hex Head

$

$

Currently unavailable

13

Briggs & Stratton 22145

WASHER, 5/16 Flat

$

$

Not available

14

Briggs & Stratton 22142

CAPSCREW, 5/16-18 x 3/4 Hex Head
(Superseded to 5022142)

$45.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 27482

SHAKEPROOF, 5/16
(Superseded to 27482GS)

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 27110

U-BOLT, 4-5/8"
(Superseded to 7027110YP)

$11.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 23712

HANDLE GRIP

$

$

Currently unavailable

18

Briggs & Stratton 37409

CARRYING HANDLE

$

$

Currently unavailable

19

Briggs & Stratton 43951

MUFFLER

Note: Craftsman Units Only

$

$

Currently unavailable

19

Briggs & Stratton 48039

MUFFLER-DIRECTIONAL

Note: For "Long-Run" Units

$

$

Currently unavailable

20

Briggs & Stratton 22237

WASHER, 3/8 Lock

$

$

Not available

21

Briggs & Stratton 22241

NUT, 3/8-16 Hex

$

$

Not available

22

Briggs & Stratton 24802

BRACKET, Solenoid Mounting

$

$

Not available

23

Briggs & Stratton 24492

SOLENOID, Starter

$

$

Currently unavailable

24

Briggs & Stratton 22097

WASHER, 1/4 Lock
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 22567

CAPSCREW, 1/4-20 x 1/2 Hex Head
(Superseded to 7022567YP)

$7.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 22127

NUT, 1/4-20 Hex

$

$

Not available

27

Briggs & Stratton 26073

PLUG, 1/8 NPT Pipe

$

$

Currently unavailable

28

Briggs & Stratton 60559

ENGINE HM 80 E.S. Craftsman Long Run E.S.

$

$

Currently unavailable

28

Briggs & Stratton 58496

ENGINE HM 100 E.S. Craftsman Long Run E.S.

$

$

Currently unavailable

29

Briggs & Stratton 26771

NUT, 3/4" Pipe Lock

$

$

Currently unavailable
