580.328240 (8648-0) - Craftsman 3,750 Watt Portable Generator Craftsman 4-Cycle Engine 8HP Electric Start Parts Diagram

3,750 Watt Portable Generator

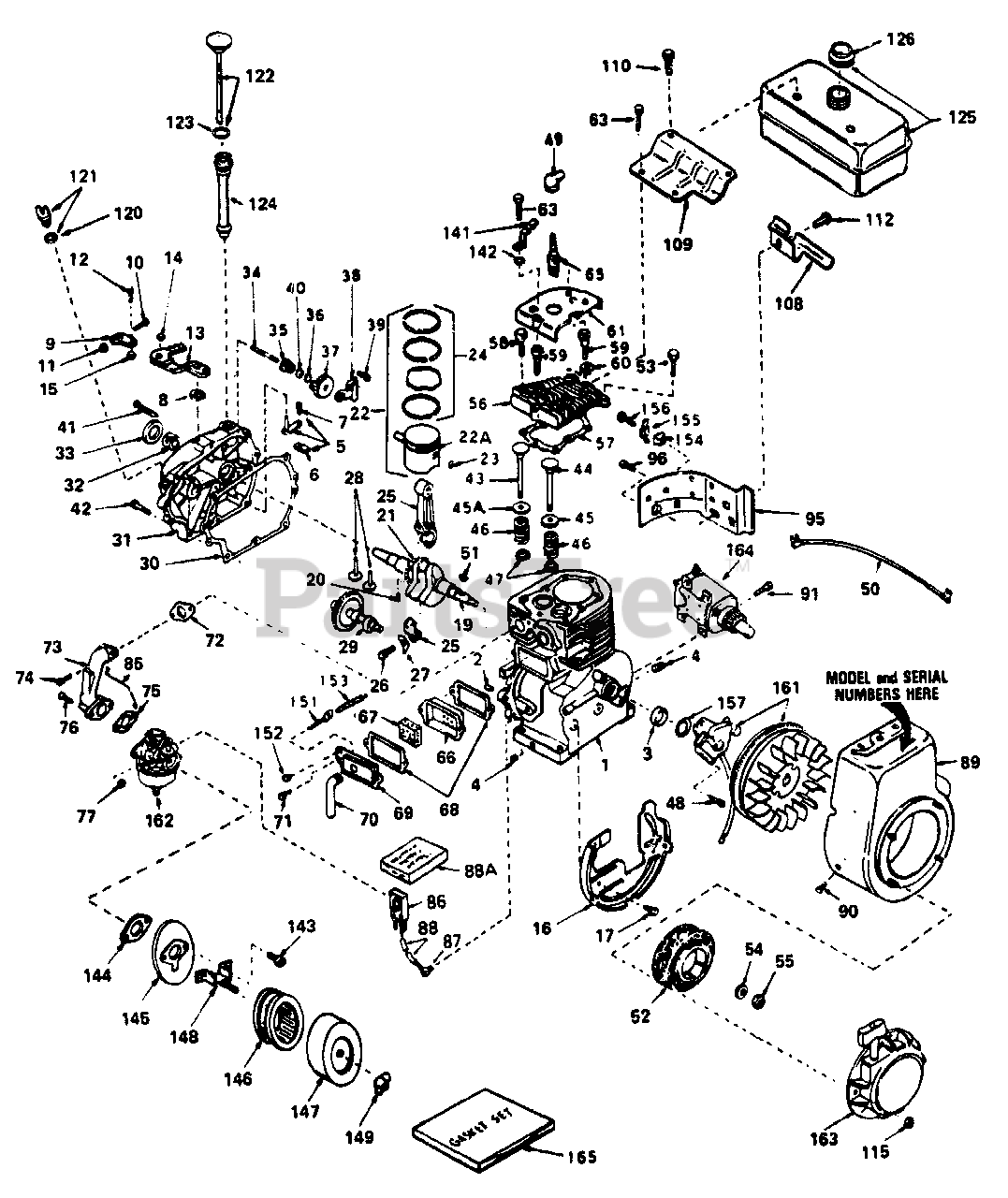

Craftsman 4-Cycle Engine 8HP Electric Start Parts Diagram

  • Title

1

Briggs & Stratton 34348A

Cylinder Assy.

Note: Before ordering call Generac for quantity required. (Incl. Nos. 2, 3, 4 & 45A)

$

$

Currently unavailable

2

Briggs & Stratton 27662

Pin, Dowel

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

3

Briggs & Stratton 32630

Seal, Oil

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

4

Briggs & Stratton 27642

Plug, Oil drain

Note: Before ordering call Generac for quantity required.

$

$

Not available

5

Briggs & Stratton 30699C

Rod Assy., Governor

Note: Before ordering call Generac for quantity required. (Incl. Nos. 6 & 7)

$

$

Currently unavailable

6

Briggs & Stratton 30700

Yoke, Governor

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

7

Briggs & Stratton 650494

Screw, Fil. hd. Sems, 6-40 x 5/16

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

8

Briggs & Stratton 29642

Ring, Retaining

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

9

Briggs & Stratton 29916

Clamp, Governor lever

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

10

Briggs & Stratton 29826

Screw, Hex washer hd., 10-32 x 3/4

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

11

Briggs & Stratton 29216

Locknut, Hex caps, 10-32
(Superseded to 7029216YP)

Note: Before ordering call Generac for quantity required.

$78.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 650648

Screw, Hex washer hd., 8-32 x 5/16

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

13

Briggs & Stratton 33454

Governor Lever Assy.

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

14

Briggs & Stratton 29918

Lockwasher, No. 8 E.T.

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

15

Briggs & Stratton 30322

Nut & Lockwasher Assy., 8-32

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

16

Briggs & Stratton 29636

Baffle, Blower housing

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

17

Briggs & Stratton 650681

Screw, Hex washer hd. Durlok, 1/4-20 x 5/8

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

19

Briggs & Stratton 33453A

Crankshaft Assy.

Note: Before ordering call Generac for quantity required. (Incl. Nos. 20 & 21)

$

$

Currently unavailable

20

Briggs & Stratton 29783

Pin, Crankshaft gear
(Superseded to 7029783YP)

Note: Before ordering call Generac for quantity required.

$6.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 33245

Gear, Crankshaft

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

22

Briggs & Stratton 34562

Piston, Pin & Ring Assy. (Std.)

Note: Before ordering call Generac for quantity required. (Incl. Nos. 22A, 23 & 24)

$

$

Currently unavailable

22

Briggs & Stratton 34553

Piston, Pin & Ring Assy. (.010 oversize)

Note: Before ordering call Generac for quantity required. (Incl. Nos. 22A, 23 & 24)

$

$

Currently unavailable

22

Briggs & Stratton 34554

Piston, Pin & Ring Assy. (.020 oversize)

Note: Before ordering call Generac for quantity required. (Incl. Nos. 22A, 23 & 24)

$

$

Currently unavailable

22A

Briggs & Stratton 34329A

Piston & Pin Assy. (Std.)

Note: Before ordering call Generac for quantity required. (Incl. No. 23)

$

$

Currently unavailable

22A

Briggs & Stratton 34330A

Piston & Pin Assy. (.010 oversize)

Note: Before ordering call Generac for quantity required. (Incl. No. 23)

$

$

Currently unavailable

22A

Briggs & Stratton 34331A

Piston & Pin Assy. (.020 oversize)

Note: Before ordering call Generac for quantity required. (Incl. No. 23)

$

$

Currently unavailable

23

Briggs & Stratton 27888

Ring, Piston pin retaining
(Superseded to 7027888YP)

Note: Before ordering call Generac for quantity required.

$3.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 34332

Ring Set, Piston (Std.)

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

24

Briggs & Stratton 34333

Ring Set, Piston (.010 oversize)

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

24

Briggs & Stratton 34334

Ring Set, Piston (.020 oversize)

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

25

Briggs & Stratton 32591C

Rod Assy., Connecting

Note: Before ordering call Generac for quantity required. (Incl. Nos. 26 & 27)

$

$

Currently unavailable

26

Briggs & Stratton 650662B

Screw, Connecting rod

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

27

Briggs & Stratton 34242

Dipper, Oil

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

28

Briggs & Stratton 34034

Lifter, Valve

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

29

Briggs & Stratton 34143

Camshaft (Mech. Compression Release)

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

30

Briggs & Stratton 33253

Gasket, Cylinder cover

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

31

Briggs & Stratton 33367A

Cover, Cylinder

Note: Before ordering call Generac for quantity required. (Incl. Nos. 32, 33, 34 & 121)

$

$

Currently unavailable

32

Briggs & Stratton 33368

Bushing, Crankshaft

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

33

Briggs & Stratton 31950

Seal, Oil

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

34

Briggs & Stratton 31845

Shaft, Mechanical governor

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

35

Briggs & Stratton 30688A

Spool, Governor

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

36

Briggs & Stratton 29193

Ring, Retaining
(Superseded to 7029193YP)

Note: Before ordering call Generac for quantity required.

$7.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 30691

Gear Assy., Governor

Note: Before ordering call Generac for quantity required. (Incl. No. 40)

$

$

Currently unavailable

38

Briggs & Stratton 33369

Bracket, Governor gear

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

39

Briggs & Stratton 28783

Screw, Hex washer hd. shakeproof, 10-32 x 19/32

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

40

Briggs & Stratton 30690A

Washer, Flat

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

41

Briggs & Stratton 650488

Screw, Hex hd. Sems, 1/4-20 x 1-1/4

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

42

Briggs & Stratton 650493

Screw, Hex hd. Sems, 1/4-20 x 1-3/4

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

43

Briggs & Stratton 34036

Valve, Intake (Std.)

Note: Before ordering call Generac for quantity required. (Incl. No. 47)

$

$

Currently unavailable

43

Briggs & Stratton 34038

Valve, Intake (1/32" oversize)

Note: Before ordering call Generac for quantity required. (Incl. No. 47)

$

$

Currently unavailable

44

Briggs & Stratton 27878A

Valve, Exhaust (Std.)

Note: Before ordering call Generac for quantity required. (Incl. No. 47)

$

$

Currently unavailable

44

Briggs & Stratton 27880A

Valve, Exhaust (1/32" oversize)

Note: Before ordering call Generac for quantity required. (Incl. No. 47)

$

$

Currently unavailable

45

Briggs & Stratton 27882

Cap, Upper valve spring

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

45A

Briggs & Stratton 34689

Seal Assy., Intake valve

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

46

Briggs & Stratton 27881

Spring, Valve

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

47

Briggs & Stratton 32581

Cap, Lower valve spring

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

48

Briggs & Stratton 650489

Screw, Hex hd. Sems, 1/14-20 x 5/8

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

49

Briggs & Stratton 27276

Cover, Spark plug

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

50

Briggs & Stratton 30831

Wire, Ground

Note: Before ordering call Generac for quantity required. (Incl. No. 155)

$

$

Currently unavailable

51

Briggs & Stratton 32589

Key, Flywheel

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

52

Briggs & Stratton 33~62

Hub & Screen Assy., Starter

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

53

Briggs & Stratton 650788

Screw, Hex hd. thr'd forming, 5/16-18 x 3/4

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

54

Briggs & Stratton 650490

Washer, Belleville

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

55

Briggs & Stratton 8116

Nut, Hex, 1/2-20

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

56

Briggs & Stratton 34030

Head, Cylinder

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

57

Briggs & Stratton 34041

Gasket, Cylinder head

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

58

Briggs & Stratton 6021A

Screw, Hex flange hd., 5/16-18 x 1-1/2

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

59

Briggs & Stratton 650727

Screw, Special hex hd. tapped, 5/16-18 x 1-3/4

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

60

Briggs & Stratton 650891

Washer, Flat

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

61

Briggs & Stratton 33272

Cover, Cylinder head

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

63

Briggs & Stratton 650713

Screw, Hex hd., 5/16-18 x 5/8

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

65

Briggs & Stratton 33636

Plug, Spark

Note: Before ordering call Generac for quantity required. (Champion J-8 or equivalent) Except for Canada

$

$

Currently unavailable

65

Briggs & Stratton 34251

Resistor Spark Plug

Note: Before ordering call Generac for quantity required. (Canadian Regulations require RJ-17LM resistor spark plug)

$

$

Currently unavailable

66

Briggs & Stratton 28423

Body, Breather

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

67

Briggs & Stratton 28424

Element, Breather

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

68

Briggs & Stratton 27896

Gasket, Breather cover

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

69

Briggs & Stratton 28425

Cover, Valve spring
(Superseded to 7035947YP)

Note: Before ordering call Generac for quantity required.

$28.99

$

In Stock, only 1 left!

0

70

Briggs & Stratton 27627

Tube, Breather

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

71

Briggs & Stratton 650128

Screw, Fil. hd. Sems, 10-24 x 1/2

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

72

Briggs & Stratton 27915

Gasket, Intake
(Superseded to 7027915YP)

Note: Before ordering call Generac for quantity required.

$137.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 34707

Pipe, Intake

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

74

Briggs & Stratton 650378

Screw, Fil. hd. Sems, 5/16-18 x 1-1/8

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

75

Briggs & Stratton 33661

Gasket, Carburetor

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

76

Briggs & Stratton 30088A

Screw, Fil. hd. Sems, 1/4-28 x 1

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

77

Briggs & Stratton 29752

Nut & Lockwasher, 1/4-28

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

85

Briggs & Stratton 33878

Link, Governor lever-to-throttle

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

86

Briggs & Stratton 33715

Fuel, Pump

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

87

Briggs & Stratton 33713

Fitting, Fuel line elbow

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

88

Briggs & Stratton 29774

Fuel line

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

88A

Briggs & Stratton 33010

Repair Kit, Fuel pump

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

89

Briggs & Stratton 33376B

Housing Blower

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

90

Briggs & Stratton 29747A

Screw, Hex hd. Sems, 5/16-24 x 3/4

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

91

Briggs & Stratton 30688

Screw, Hex hd. Sems, 1/4-20 x 1/2

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

95

Briggs & Stratton 33273

Extension, Blower housing

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

96

Briggs & Stratton 850128

Screw, Fil. hd. Sems, 10-24 x 1/2

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

108

Briggs & Stratton 34155

Plate, Fuel tank mtg.

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

109

Briggs & Stratton 34154

Bracket, Fuel tank mtg.
(Superseded to 34154GS)

Note: Before ordering call Generac for quantity required.

$1.99

$

Usually ships in 2-12 days

0

110

Briggs & Stratton 660665

Screw, Hex washer hd. Sems, selftap, 1/4-14 x 7/8

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

112

Briggs & Stratton 650661

Screw, Hex washer hd. Durlok, 1/4-20 x 6/8

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

115

Briggs & Stratton 29752

Nut & Lockwasher, 1/4-28

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

120

Briggs & Stratton 29673

Gasket, Oil fill plug

Note: Before ordering call Generac for quantity required.

$

$

Not available

121

Briggs & Stratton 27625

Plug, Oil filler

Note: Before ordering call Generac for quantity required. (Incl. No. 120)

$

$

Currently unavailable

122

Briggs & Stratton 34122A

Dipstick, Oil

Note: Before ordering call Generac for quantity required. (Incl. No. 123)

$

$

Currently unavailable

123

Briggs & Stratton 33690

"O" Ring

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

124

Briggs & Stratton 33691A

Tube, Oil filler

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

125

Briggs & Stratton 34156

Tank Assy., Fuel

Note: Before ordering call Generac for quantity required. (Incl. No. 126)

$

$

Currently unavailable

126

Briggs & Stratton 32387A

Cap, Fuel filler

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

141

Briggs & Stratton 30747

Clip, Shorting
(Superseded to 5030747)

Note: Before ordering call Generac for quantity required.

$193.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 16645

Washer, Lock 5/16"

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

143

Briggs & Stratton 28820

Screw, Fil. hd. Sems, 10-32 x 1/2
(Superseded to 7045199YP)

Note: Before ordering call Generac for quantity required.

$222.99

$

Usually ships in 2-12 days

0

144

Briggs & Stratton 27272

Gasket, Air cleaner

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

145

Briggs & Stratton 33266

Bracket, Air cleaner

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

146

Briggs & Stratton 33268

Element, Air cleaner

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

147

Briggs & Stratton 33269A

Cover Air cleaner

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

148

Briggs & Stratton 33267

Bracket, Air cleaner

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

149

Briggs & Stratton 650613

Nut, Wing, 1/4-20

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

151

Briggs & Stratton 30845A

Bolt, Governor spring adjusting

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

152

Briggs & Stratton 33450

Nut, Lock, 10-32

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

153

Briggs & Stratton 30886A

Spring, Governor bolt

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

154

Briggs & Stratton 28645

Grommet, Plastic

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

155

Briggs & Stratton 33356

Tab, Ground terminal

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

156

Briggs & Stratton 650643

Screw, Pan hd. self-tap, 8-18 x 3/8

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

157

Briggs & Stratton 33878

Gasket, Stator

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

161

Briggs & Stratton 610848

Magneto

Note: Before ordering call Generac for quantity required. (The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.)

$

$

Currently unavailable

162

Briggs & Stratton 632008

Carburetor

Note: Before ordering call Generac for quantity required. (Incl. No. 75)

$

$

Currently unavailable

163

Briggs & Stratton 590479

Starter, Rewing

Note: Before ordering call Generac for quantity required.

$10.99

$

Usually ships in 2-12 days

0

164

Briggs & Stratton 33605

Motor, Starter (12 Volt)

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

165

Briggs & Stratton 33279C

Gasket Set

Note: Before ordering call Generac for quantity required. Includes items 30, 57, 68, 72, 75, 120, & 144

$

$

Currently unavailable
