580.328231 (8647-1) - Craftsman 2,600 Watt Portable Generator Rewind Starter No. 590420A Parts Diagram

2,600 Watt Portable Generator

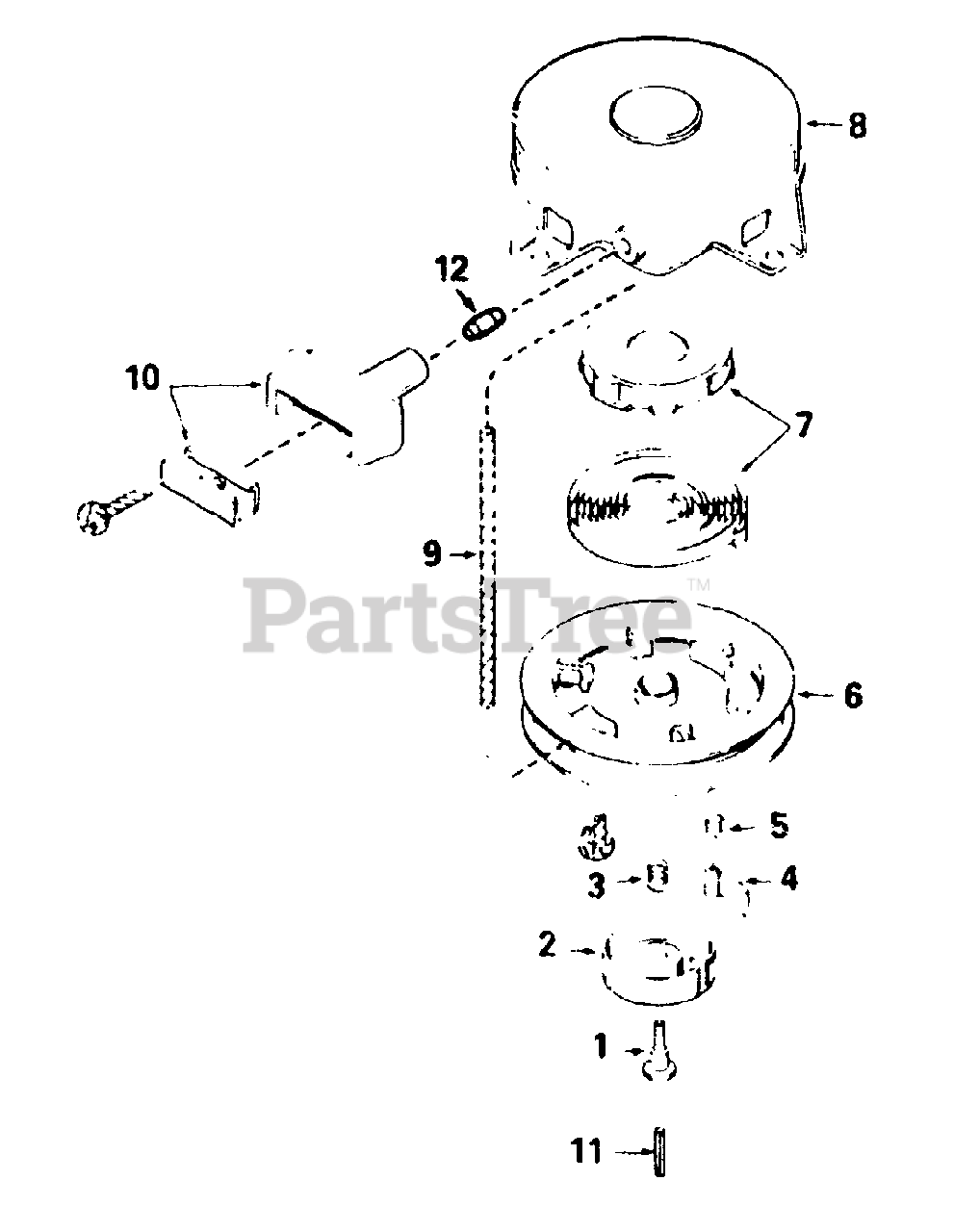

Rewind Starter No. 590420A Parts Diagram

  • Title

Briggs & Stratton 590420A

Starter, Rewind

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

1

Briggs & Stratton 590409A

Screw, Retainer

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

2

Briggs & Stratton 590410

Retainer, R.H.

Note: Before ordering call Generac for quantity required.

$12.99

$

In Stock, only 2 left!

0

3

Briggs & Stratton 590411

Spring, Brake

Note: Before ordering call Generac for quantity required.

$45.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 590148

Dog, Starter

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

5

Briggs & Stratton 590412

Spring, R.H. dog

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

6

Briggs & Stratton 590413A

Pulley

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

7

Briggs & Stratton 590414

Spring & Keeper Assy.

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

8

Briggs & Stratton 590536

Housing Assy., Starter
(Superseded to 590535)

Note: (Incl. No. 1) Before ordering call Generac for quantity required.

$12.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 590535

Rope, Starter

Note: Before ordering call Generac for quantity required.

$12.99

$

In Stock, only 1 left!

0

10

Briggs & Stratton 590387

Handle Assy., Starter

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

11

Briggs & Stratton 590459

Pin, Centering

Note: Before ordering call Generac for quantity required.

$

$

Not available

12

Briggs & Stratton 34985

Stop & Staple, Rope

Note: (Not used on all models) Before ordering call Generac for quantity required.

$

$

Currently unavailable
