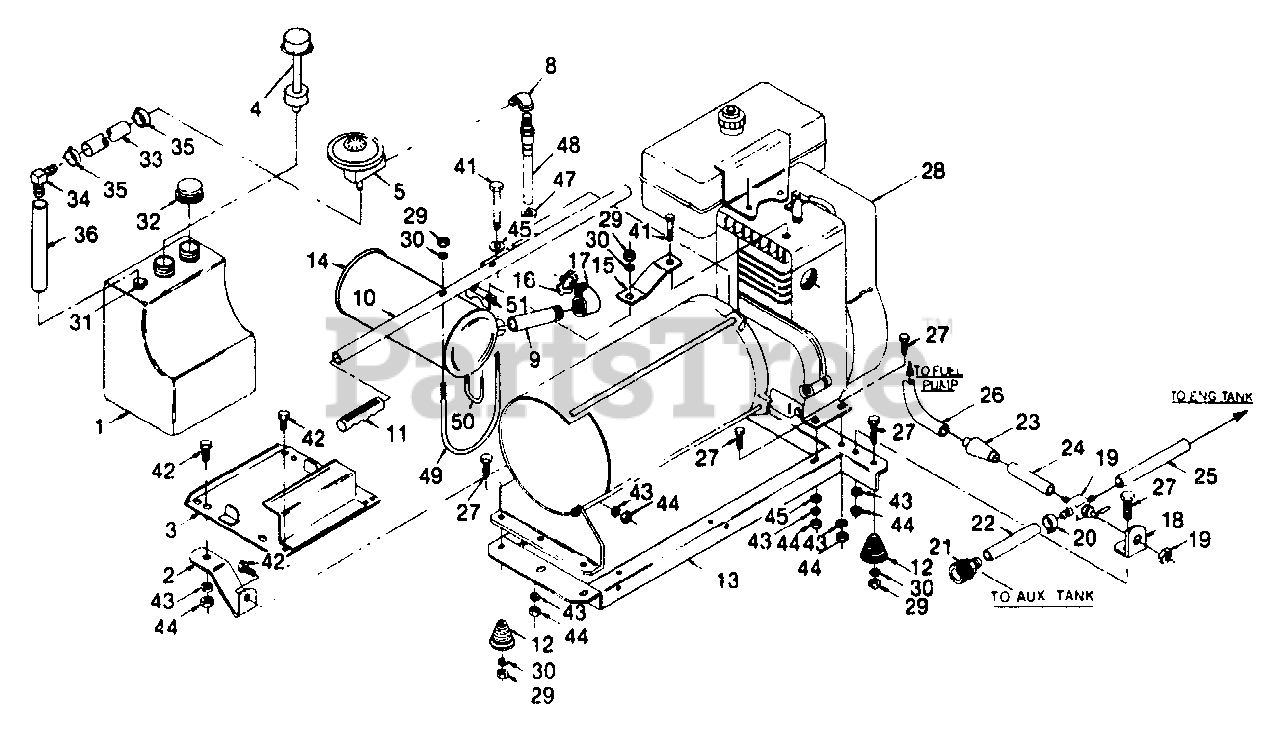

580.328231 (8647-1) - Craftsman 2,600 Watt Portable Generator Mounting Base Parts Diagram

2,600 Watt Portable Generator

Mounting Base Parts Diagram

  • Title

1

Briggs & Stratton 8084

TANK, Oil Makeup

$

$

Currently unavailable

2

Briggs & Stratton 8827

SUPPORT, Oil Makeup Tank Tray

$

$

Currently unavailable

3

Briggs & Stratton 9344

TRAY, Oil Makeup Tank
(Superseded to 1673452SM)

$3.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 4385

SWITCH, Low Oil Level Shutdown

$

$

Currently unavailable

5

Briggs & Stratton 6509

PUMP, Oil Makeup

$

$

Currently unavailable

8

Briggs & Stratton 0961

ELBOW, Oil Makeup Probe

$

$

Currently unavailable

9

Briggs & Stratton 8051

NIPPLE, Exhaust - 3/4" NPT x 4 3/4" Long

$

$

Currently unavailable

10

Briggs & Stratton 8406

HANDLE, Carrying

$

$

Currently unavailable

11

Briggs & Stratton 3712

GRIP, Handle

$

$

Currently unavailable

12

Briggs & Stratton 3594

SPRING, Mounting Base

$

$

Currently unavailable

13

Briggs & Stratton 45612

BASE, Mounting

$

$

Currently unavailable

14

Briggs & Stratton 7608

MUFFLER, Spark Arrest

$

$

Currently unavailable

15

Briggs & Stratton 7607

SUPPORT, Spark Arrest Muffler

$

$

Currently unavailable

16

Briggs & Stratton 6771

NUT, Pipe Lock

$

$

Currently unavailable

17

Briggs & Stratton 6307

ELBOW - 3/4"

$

$

Currently unavailable

18

Briggs & Stratton 7498

SUPPORT, Dual Fuel Selector Valve

$

$

Currently unavailable

19

Briggs & Stratton 7797

VALVE, Dual Fuel Selector

$

$

Currently unavailable

20

Briggs & Stratton 8031C

CLAMP, Hose

$

$

Currently unavailable

21

Briggs & Stratton 0288

CONNECTOR, Straight

$

$

Currently unavailable

22

Briggs & Stratton 7662C

HOSE, Fuel

$

$

Currently unavailable

23

Briggs & Stratton 7294

FILTER, Fuel

$

$

Currently unavailable

24

Briggs & Stratton 7662B

HOSE, Fuel

$

$

Currently unavailable

25

Briggs & Stratton 7662AC

HOSE, Fuel

$

$

Currently unavailable

26

Briggs & Stratton 7662AE

HOSE, Fuel

$

$

Currently unavailable

27

Briggs & Stratton 2142

CAPSCREW, Hex Head - 5/16"-18 x 3/4"

$

$

Currently unavailable

28

Briggs & Stratton 3192

ENGINE - Craftsman Model 143.756092

Note: Before ordering call Generac for quantity required.

$

$

Currently unavailable

29

Briggs & Stratton 2259

NUT, Hex - 5/16"-18

$

$

Currently unavailable

30

Briggs & Stratton 2129

WASHER, Lock - 5/16"

$

$

Currently unavailable

31

Briggs & Stratton 5472

CLAMP

$

$

Currently unavailable

32

Briggs & Stratton 0449

CAP, Oil Makeup Tank Filler

$

$

Currently unavailable

33

Briggs & Stratton 7662Q

HOSE, Oil Makeup Tank to Pump

$

$

Currently unavailable

34

Briggs & Stratton 9099

FITTING, Barbed

$

$

Currently unavailable

35

Briggs & Stratton 8031E

CLAMP Hose

$

$

Currently unavailable

36

Briggs & Stratton 7662N

HOSE, Oil Pickup

$

$

Currently unavailable

41

Briggs & Stratton 2532

CAPSCREW, Hex Head - 5/16"-18 x 2-1/2"

$

$

Currently unavailable

42

Briggs & Stratton 2287

CAPSCREW, Hex Head - 1/4"-20 x 3/4"

$

$

Currently unavailable

43

Briggs & Stratton 2097

WASHER, Lock - 1/4"

$

$

Currently unavailable

44

Briggs & Stratton 2127

NUT, Hex - 1/4-20"

$

$

Currently unavailable

45

Briggs & Stratton 2145

WASHER, Flat - 5/16"

$

$

Currently unavailable

46

Briggs & Stratton 2203

CAPSCREW, Hex Head - 1/4"-230 x 1 1/4"

$

$

Currently unavailable

47

Briggs & Stratton 6900

GASKET, Oil Makeup Probe

$

$

Currently unavailable

48

Briggs & Stratton 52981

PROBE, Oil Makeup

$

$

Currently unavailable

49

Briggs & Stratton 36797

U-BOLT - 5/16"-18 x 3-1/4" Diameter

$

$

Currently unavailable

50

Briggs & Stratton 26858

U-BOLT - 5/16"-18 x 1' 1/8" Diameter

$

$

Not available

51

Briggs & Stratton 26859

SADDLE, U-Bolt

$

$

Currently unavailable
