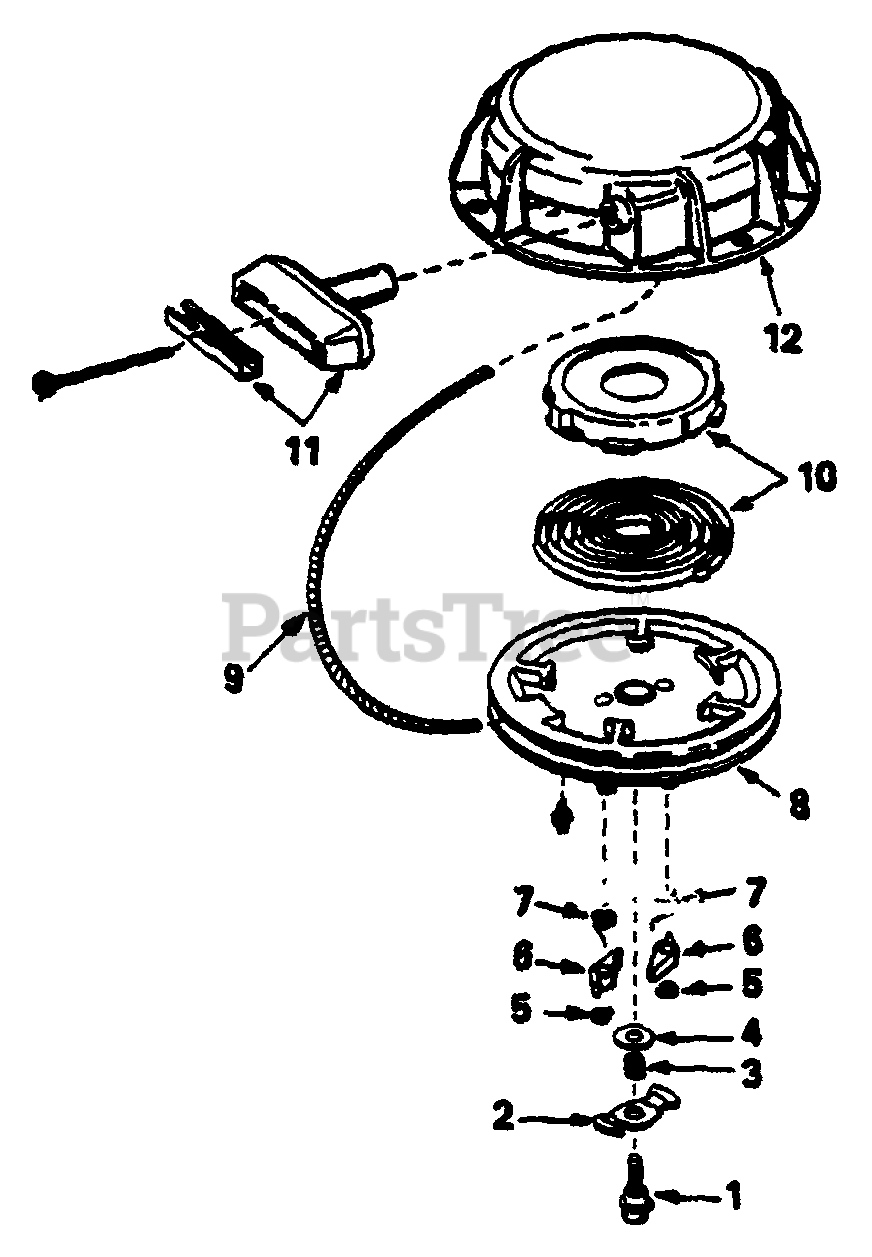

580.328191 (8762-1) - Craftsman 3,500 Watt Portable Generator Rewind Starter No. 590479 Parts Diagram

3,500 Watt Portable Generator

Rewind Starter No. 590479 Parts Diagram

  • Title

Briggs & Stratton 590479

Starter, Rewind

Note: Contact Generac for quantity required

$10.99

$

Usually ships in 2-12 days

0

1

Briggs & Stratton 590480

Screw, Center

Note: Contact Generac for quantity required

$13.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 590481

Cam, Dog

Note: Contact Generac for quantity required

$9.49

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 590482

Spring, Brake

Note: Contact Generac for quantity required

$10.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 32024

Washer, Brake

Note: Contact Generac for quantity required

$

$

Currently unavailable

5

Briggs & Stratton 590483

Ring, Retainer

Note: Contact Generac for quantity required

$11.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 590484

Dog

Note: Contact Generac for quantity required

$11.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 590485

Spring, Dog

Note: Contact Generac for quantity required

$10.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 590486

Pulley & Bearing Assy.
(Superseded to 593875)

Note: Contact Generac for quantity required

$55.99

$

In Stock, only 3 left!

0

9

Briggs & Stratton 590456

Rope, Starter

Note: Contact Generac for quantity required

$

$

Currently unavailable

10

Briggs & Stratton 590487

Spring & Keeper Assy.

Note: Contact Generac for quantity required

$

$

Currently unavailable

11

Briggs & Stratton 590387

Handle Assy., Starter

Note: Contact Generac for quantity required

$

$

Currently unavailable

12

Briggs & Stratton 590488

Housing Assy., Starter

Note: Contact Generac for quantity required

$

$

Currently unavailable
