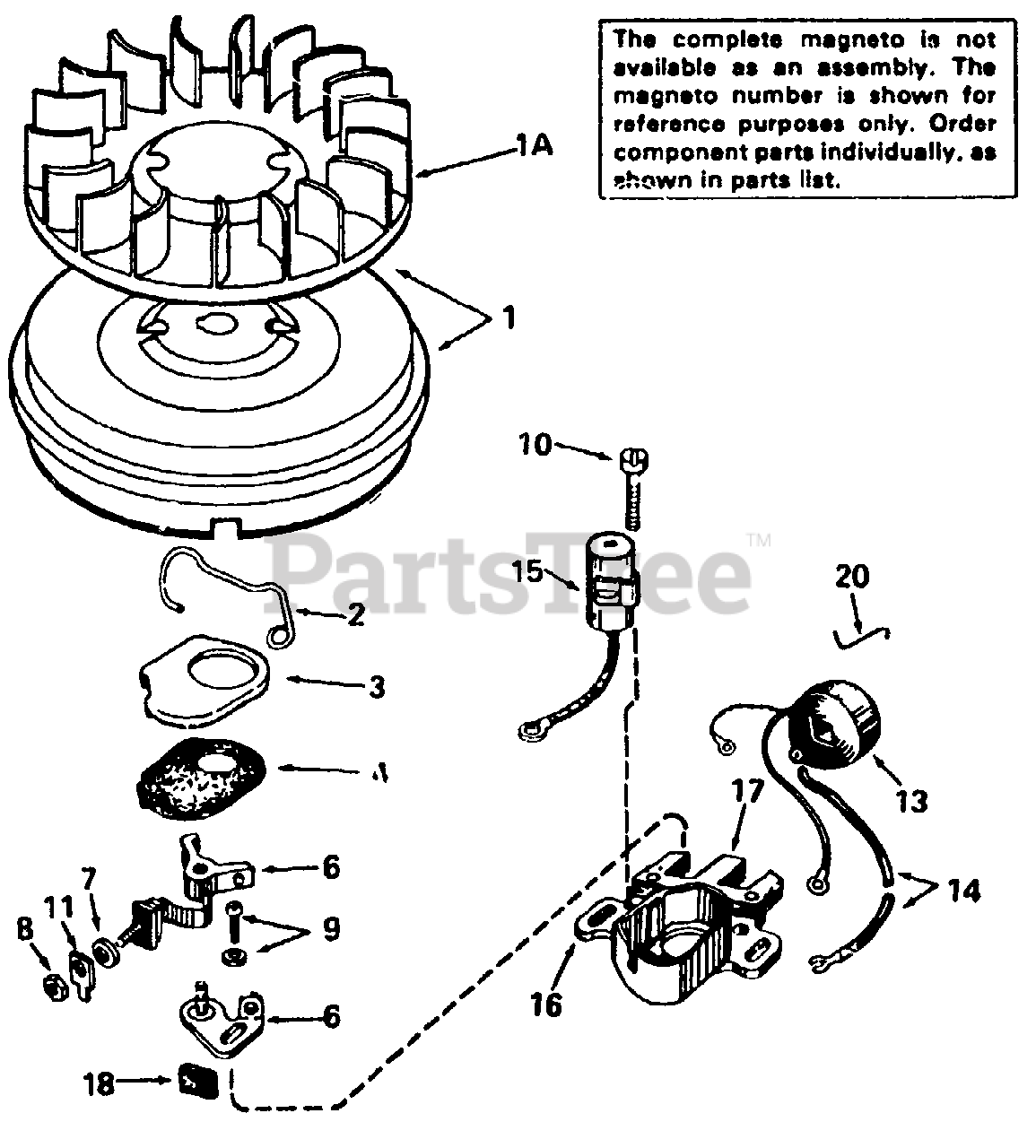

580.328190 (8762-0) - Craftsman 3,500 Watt Portable Generator Magneto No. 610842 Parts Diagram

3,500 Watt Portable Generator

Magneto No. 610842 Parts Diagram

  • Title

Briggs & Stratton 610842

Magneto

Note: Contact Generac for Quantity required. The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.

$

$

Currently unavailable

1

Briggs & Stratton 610841

Flywheel

Note: (incl. No. 1A). Contact Generac for Quantity required.

$

$

Currently unavailable

1A

Briggs & Stratton 610934

Fan

Note: Contact Generac for Quantity required.

$

$

Currently unavailable

2

Briggs & Stratton 30551

Spring, Breaker box dust cover

Note: Contact Generac for Quantity required.

$1498.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 610947

Cover, Dust

Note: Contact Generac for Quantity required.

$

$

Currently unavailable

4

Briggs & Stratton 610957

Gasket, Dust cover

Note: Contact Generac for Quantity required.

$

$

Currently unavailable

6

Briggs & Stratton 30547A

Breaker Assembly

Note: Contact Generac for Quantity required.

$

$

Currently unavailable

7

Briggs & Stratton 610385

Washer, Terminal

Note: Contact Generac for Quantity required.

$

$

Currently unavailable

8

Briggs & Stratton 610408

Nut, Terminal

Note: Contact Generac for Quantity required.

$

$

Currently unavailable

9

Briggs & Stratton 29181

Screw and Washer Assembly, Breaker

Note: Contact Generac for Quantity required.

$

$

Currently unavailable

10

Briggs & Stratton 610593

Screw, Condenser fastening

Note: Contact Generac for Quantity required.

$

$

Currently unavailable

11

Briggs & Stratton 33356

Tab, Ground terminal

Note: Contact Generac for Quantity required.

$

$

Currently unavailable

13

Briggs & Stratton 30560A

Coil Assembly

Note: (incl. No. 14). Contact Generac for Quantity required.

$

$

Currently unavailable

14

Briggs & Stratton 30554

Wire, Ignition lead

Note: Contact Generac for Quantity required.

$2697.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 30548B

Condenser

Note: Contact Generac for Quantity required.

$

$

Currently unavailable

16

Briggs & Stratton 30545

Core and Plate Group

Note: Contact Generac for Quantity required.

$1637.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 30561B

Stator Assembly

Note: (incl. Nos. 2, 3, 4, 6 thru 16, 18 & 20). Contact Generac for Quantity required.

$

$

Currently unavailable

18

Briggs & Stratton 30549

Felt, Cam wiper

Note: Contact Generac for Quantity required.

$

$

Currently unavailable

20

Briggs & Stratton 31311

Clip, Coil locking

Note: Contact Generac for Quantity required.

$

$

Currently unavailable
