580.328190 (8762-0) - Craftsman 3,500 Watt Portable Generator Craftsman 4-Cycle Engine Model Nbr. 143.726032 Parts Diagram

3,500 Watt Portable Generator

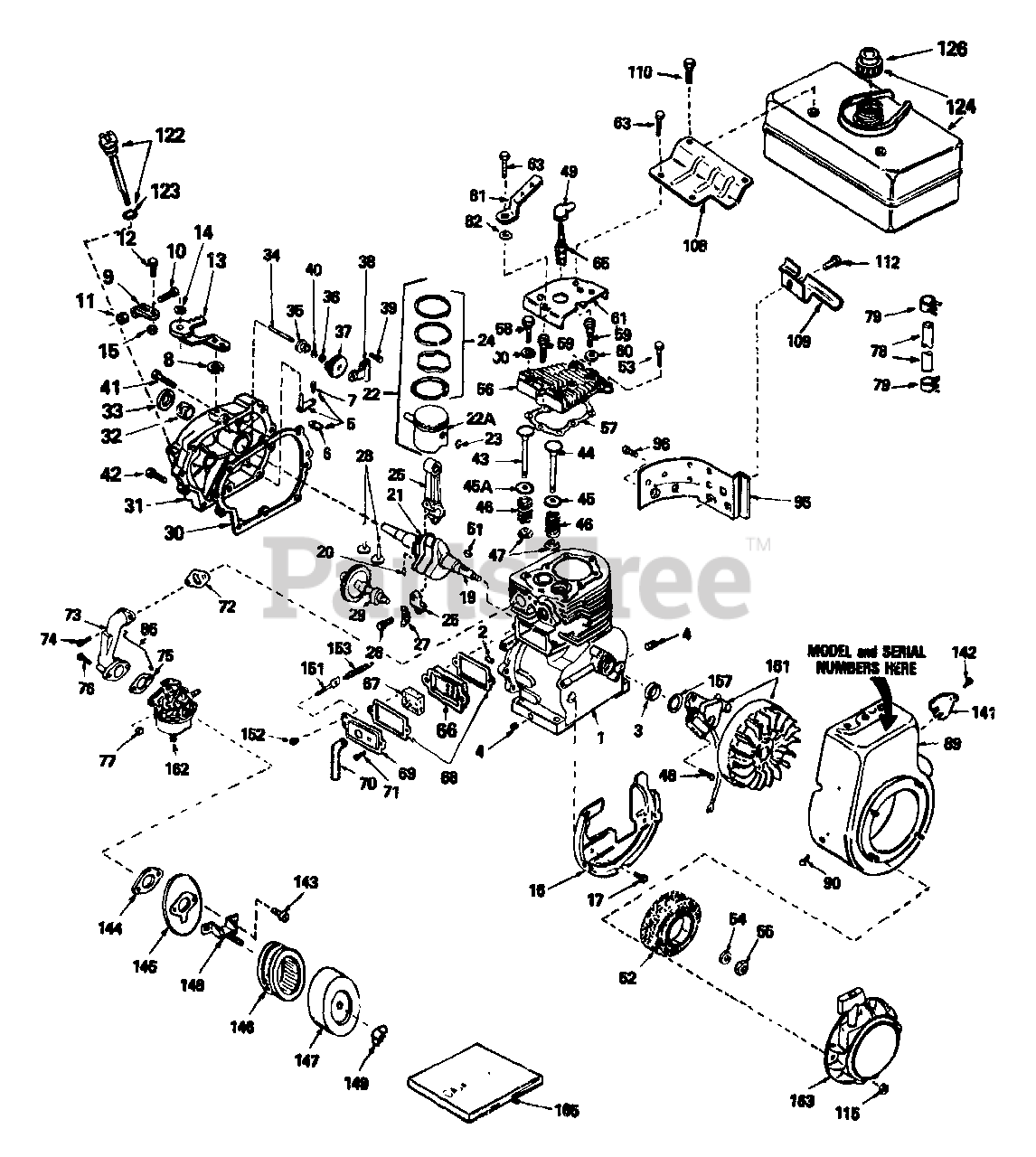

Craftsman 4-Cycle Engine Model Nbr. 143.726032 Parts Diagram

  • Title

1

Briggs & Stratton 34348A

Cylinder Assy.,

Note: (Incl. Nos. 2, 3, 4, & 45A) - Contact Generac for quantity required

$

$

Currently unavailable

2

Briggs & Stratton 27652

Pin, Dowel
(Superseded to 7027652YP)

Note: Contact Generac for quantity required

$106.99

$

In Stock, Qty 5

0

3

Briggs & Stratton 32630

Seal, Oil

Note: Contact Generac for quantity required

$

$

Currently unavailable

4

Briggs & Stratton 27642

Plug, Oil drain

Note: Contact Generac for quantity required

$

$

Not available

5

Briggs & Stratton 30699C

Rod Assy., Governor

Note: (Incl. Nos. 6 & 7) - Contact Generac for quantity required

$

$

Currently unavailable

6

Briggs & Stratton 30700

Yoke, Governor

Note: Contact Generac for quantity required

$

$

Currently unavailable

7

Briggs & Stratton 650494

Screw, Fil. hd. Sems, 6-40 x 5/16

Note: Contact Generac for quantity required

$

$

Currently unavailable

8

Briggs & Stratton 29642

Ring, Retaining

Note: Contact Generac for quantity required

$

$

Currently unavailable

9

Briggs & Stratton 29916

Clamp, Governor lever

Note: Contact Generac for quantity required

$

$

Currently unavailable

10

Briggs & Stratton 29826

Screw, Hex washer hd., 10-32 x 3/4

Note: Contact Generac for quantity required

$

$

Currently unavailable

11

Briggs & Stratton 29216

Locknut, Hex "Keps" 10-32
(Superseded to 7029216YP)

Note: Contact Generac for quantity required

$78.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 650548

Screw, Hex washer hd., 8-32 x 5/16

Note: Contact Generac for quantity required

$

$

Currently unavailable

13

Briggs & Stratton 33454

Governor Lever Assy.

Note: Contact Generac for quantity required

$

$

Currently unavailable

14

Briggs & Stratton 29918

Lockwasher, No. 8

Note: Contact Generac for quantity required

$

$

Currently unavailable

15

Briggs & Stratton 30322

Locknut, Hex "Keps", 8-32

Note: Contact Generac for quantity required

$

$

Currently unavailable

16

Briggs & Stratton 29536

Baffle, Blower housing
(Superseded to 7029536YP)

Note: Contact Generac for quantity required

$279.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 650561

Screw, Hex washer hd. Durlok. 1/4-20 x 5/8

Note: Contact Generac for quantity required

$

$

Currently unavailable

19

Briggs & Stratton 33453A

Crankshaft Assy.

Note: (Incl. Nos. 20 & 21) - Contact Generac for quantity required

$

$

Currently unavailable

20

Briggs & Stratton 29783

Pin, Crankshaft gear
(Superseded to 7029783YP)

Note: Contact Generac for quantity required

$6.49

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 33245

Gear, Crankshaft

Note: Contact Generac for quantity required

$

$

Currently unavailable

22

Briggs & Stratton 34552

Piston, Pin & Ring Assy. (Std.)

Note: (Incl. Nos. 22A, 23 & 24) - Contact Generac for quantity required

$

$

Currently unavailable

22

Briggs & Stratton 34553

Piston, Pin & Ring Assy. (.010 oversize)

Note: (Incl. Nos. 22A, 23 & 24) - Contact Generac for quantity required

$

$

Currently unavailable

22

Briggs & Stratton 34554

Piston, Pin & Ring Assy. (.020 oversize)

Note: (Incl. Nos. 22A, 23 & 24) - Contact Generac for quantity required

$

$

Currently unavailable

22A

Briggs & Stratton 34329A

Piston & Pin Assy. (Std.)

Note: (Incl. No. 23) - Contact Generac for quantity required

$

$

Currently unavailable

22A

Briggs & Stratton 34330A

Piston & Pin Assy. (.010 oversize)

Note: (Incl. No. 23) - Contact Generac for quantity required

$

$

Currently unavailable

22A

Briggs & Stratton 34331A

Piston & Pin Assy. (.020 oversize)

Note: (Incl. No. 23) - Contact Generac for quantity required

$

$

Currently unavailable

23

Briggs & Stratton 27888

Ring, Piston pin retaining
(Superseded to 7027888YP)

Note: Contact Generac for quantity required

$3.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 34332

Ring Set, Piston (Std.)

Note: Contact Generac for quantity required

$

$

Currently unavailable

24

Briggs & Stratton 34333

Ring Set, Piston (.010 oversize)

Note: Contact Generac for quantity required

$

$

Currently unavailable

24

Briggs & Stratton 34334

Ring Set, Piston (.020 oversize)

Note: Contact Generac for quantity required

$

$

Currently unavailable

25

Briggs & Stratton 32591C

Rod Assy., Connecting

Note: (Incl. Nos. 26 & 27) - Contact Generac for quantity required

$

$

Currently unavailable

26

Briggs & Stratton 650662B

Bolt, Connecting rod

Note: Contact Generac for quantity required

$

$

Currently unavailable

27

Briggs & Stratton 34242

Dipper, Oil

Note: Contact Generac for quantity required

$

$

Currently unavailable

28

Briggs & Stratton 34034

Lifter, Valve

Note: Contact Generac for quantity required

$

$

Currently unavailable

29

Briggs & Stratton 34143

Camshaft (Mech. Compression Release)

Note: Contact Generac for quantity required

$

$

Currently unavailable

30

Briggs & Stratton 33253A

Gasket, Cylinder cover

Note: (Incl. No. 41) - Contact Generac for quantity required

$

$

Currently unavailable

31

Briggs & Stratton 33367A

Cover, Cylinder

Note: (Incl. Nos. 32, 33 & 34) - Contact Generac for quantity required

$

$

Currently unavailable

32

Briggs & Stratton 33368

Bushing, Crankshaft

Note: Contact Generac for quantity required

$

$

Currently unavailable

33

Briggs & Stratton 31950

Seal, Oil

Note: Contact Generac for quantity required

$

$

Currently unavailable

34

Briggs & Stratton 31845

Shaft, Mechanical governor

Note: Contact Generac for quantity required

$

$

Currently unavailable

35

Briggs & Stratton 30588A

Spool, Governor

Note: Contact Generac for quantity required

$

$

Currently unavailable

36

Briggs & Stratton 29193

Ring, Retaining
(Superseded to 7029193YP)

Note: Contact Generac for quantity required

$7.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 30591

Gear Assy., Governor

Note: (Incl. No. 40) - Contact Generac for quantity required

$

$

Currently unavailable

38

Briggs & Stratton 33369

Bracket, Governor gear

Note: Contact Generac for quantity required

$

$

Currently unavailable

39

Briggs & Stratton 650836

Screw, Hex washer hd. thread forming, 10-24 x 1/2

Note: Contact Generac for quantity required

$

$

Currently unavailable

40

Briggs & Stratton 30590A

Washer, Flat

Note: Contact Generac for quantity required

$

$

Currently unavailable

41

Briggs & Stratton 650833

Screw, Hex washer hd. Powerlok, 1/4-20 x 1-3/16

Note: Contact Generac for quantity required

$

$

Currently unavailable

42

Briggs & Stratton 650832

Screw, Hex washer hd. Powerlok, 1/4-20 x 11/16

Note: Contact Generac for quantity required

$

$

Currently unavailable

43

Briggs & Stratton 34035

Valve, Intake (Std.)

Note: (Incl. No. 47) - Contact Generac for quantity required

$

$

Currently unavailable

43

Briggs & Stratton 34036

Valve, Intake (1/32" oversize)

Note: (Incl. No. 47) - Contact Generac for quantity required

$

$

Currently unavailable

44

Briggs & Stratton 27878A

Valve, Exhaust (Std.)

Note: (Incl. No. 47) - Contact Generac for quantity required

$

$

Currently unavailable

44

Briggs & Stratton 27880A

Valve Exhaust (1/32" oversize)

Note: (Incl. No. 47) - Contact Generac for quantity required

$

$

Currently unavailable

45

Briggs & Stratton 27882

Cap, Upper valve spring

Note: Contact Generac for quantity required

$

$

Currently unavailable

45A

Briggs & Stratton 34689

Seal Assy., Intake valve

Note: Contact Generac for quantity required

$

$

Currently unavailable

46

Briggs & Stratton 27881

Spring, Valve

Note: Contact Generac for quantity required

$

$

Currently unavailable

47

Briggs & Stratton 32581

Cap, Lower valve spring

Note: Contact Generac for quantity required

$

$

Currently unavailable

48

Briggs & Stratton 650489

Screw, Hex hd. Sems, 1/4-20 x 5/8

Note: Contact Generac for quantity required

$

$

Currently unavailable

49

Briggs & Stratton 27276

Cover, Spark plug

Note: Contact Generac for quantity required

$

$

Currently unavailable

51

Briggs & Stratton 32589

Key, Flywheel

Note: Contact Generac for quantity required

$

$

Currently unavailable

52

Briggs & Stratton 33662

Hub & Screen Assy., Starter

Note: Contact Generac for quantity required

$

$

Currently unavailable

53

Briggs & Stratton 650788

Screw, Hex hd. spinlock thr'd forming, 5/16-18 x 3/4

Note: Contact Generac for quantity required

$

$

Currently unavailable

54

Briggs & Stratton 650815

Washer, Belleville

Note: Contact Generac for quantity required

$

$

Currently unavailable

55

Briggs & Stratton 8116

Nut, Hex 1/2-20

Note: Contact Generac for quantity required

$

$

Currently unavailable

56

Briggs & Stratton 34030

Head, Cylinder

Note: Contact Generac for quantity required

$

$

Currently unavailable

57

Briggs & Stratton 34041

Gasket, Cylinder head

Note: Contact Generac for quantity required - Indicates Parts Included in Gasket Set, Ref. No. 165.

$

$

Currently unavailable

58

Briggs & Stratton 6021A

Screw, Hex flange hd., 5/16-18 x 1-1/2

Note: Contact Generac for quantity required

$

$

Currently unavailable

59

Briggs & Stratton 650727

Screw, Special hex hd. tapped, 5/16-18 x 1-3/4

Note: Contact Generac for quantity required

$

$

Currently unavailable

60

Briggs & Stratton 650691

Washer, Flat

Note: Contact Generac for quantity required

$

$

Currently unavailable

61

Briggs & Stratton 33272

Cover, Cylinder head

Note: Contact Generac for quantity required

$

$

Currently unavailable

63

Briggs & Stratton 650713

Screw, Hex hd., 5/16-18 x 5/8

Note: Contact Generac for quantity required

$

$

Currently unavailable

65

Briggs & Stratton 33836

Plug, Spark (Champion J-8 or equivalent) Except for Canada

Note: Contact Generac for quantity required

$

$

Currently unavailable

65

Briggs & Stratton 34251

Resistor Spark Plug

Note: (Canadian Regulations require RJ-17LM resistor spark plug); Contact Generac for quantity required

$

$

Currently unavailable

66

Briggs & Stratton 28423

Body, Breather

Note: Contact Generac for quantity required

$

$

Currently unavailable

67

Briggs & Stratton 28424

Element, Breather

Note: Contact Generac for quantity required

$

$

Currently unavailable

68

Briggs & Stratton 27896

Gasket, Breather cover

Note: Contact Generac for quantity required-Indicates Parts Included in Gasket Set, Ref. No. 165.

$

$

Currently unavailable

69

Briggs & Stratton 28425

Cover, Valve spring
(Superseded to 7035947YP)

Note: Contact Generac for quantity required

$28.99

$

In Stock, only 1 left!

0

70

Briggs & Stratton 27627

Tube, Breather

Note: Contact Generac for quantity required

$

$

Currently unavailable

71

Briggs & Stratton 650128

Screw, Fil. hd. Sems, 10-24 x 1/2

Note: Contact Generac for quantity required

$

$

Currently unavailable

72

Briggs & Stratton 27915

Gasket, Intake
(Superseded to 7027915YP)

Note: Contact Generac for quantity required-Indicates Parts Included in Gasket Set, Ref. No. 165.

$137.99

$

Usually ships in 2-12 days

0

73

Briggs & Stratton 34707

Pipe, Intake

Note: Contact Generac for quantity required

$

$

Currently unavailable

74

Briggs & Stratton 650378

Screw, Fil. hd. Sems, 5/16-18 x 1-1/8

Note: Contact Generac for quantity required

$

$

Currently unavailable

75

Briggs & Stratton 33263

Gasket, Carburetor

Note: Contact Generac for quantity required - Indicates Parts Included in Gasket Set, Ref. No. 165.

$

$

Currently unavailable

76

Briggs & Stratton 30088A

Screw, Fil. hd. Sems, 1/4-28 x 1

Note: Contact Generac for quantity required

$

$

Currently unavailable

77

Briggs & Stratton 29752

Nut & Lockwasher, 1/4-28

Note: Contact Generac for quantity required

$

$

Currently unavailable

78

Briggs & Stratton 30705

Line, Fuel

Note: Contact Generac for quantity required

$

$

Currently unavailable

79

Briggs & Stratton 26460

Clamp, Fuel line

Note: Contact Generac for quantity required

$

$

Currently unavailable

81

Briggs & Stratton 30747

Clip, Spark plug shorting
(Superseded to 5030747)

Note: Contact Generac for quantity required

$193.99

$

Usually ships in 2-12 days

0

82

Briggs & Stratton 16645

Washer, Lock

Note: Contact Generac for quantity required

$

$

Currently unavailable

85

Briggs & Stratton 33878

Link, Governor lever-to-throttle

Note: Contact Generac for quantity required

$

$

Currently unavailable

89

Briggs & Stratton 33375B

Housing, Blower

Note: Contact Generac for quantity required

$

$

Currently unavailable

90

Briggs & Stratton 29747A

Screw, Hex hd. Sems, 5/16-24 x 3/4

Note: Contact Generac for quantity required

$

$

Currently unavailable

95

Briggs & Stratton 33273

Extension, Blower housing

Note: Contact Generac for quantity required

$

$

Currently unavailable

96

Briggs & Stratton 650128

Screw, Fil. hd. Sems, 10-24 x 1/2

Note: Contact Generac for quantity required

$

$

Currently unavailable

108

Briggs & Stratton 34154

Plate, Fuel tank mtg.
(Superseded to 34154GS)

Note: Contact Generac for quantity required

$1.99

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 34156

Bracket, Fuel tank mtg.

Note: Contact Generac for quantity required

$

$

Currently unavailable

110

Briggs & Stratton 650665

Screw, Hex washer hd. Sems, self-tap, 1/4-14 x 7/8

Note: Contact Generac for quantity required

$

$

Currently unavailable

112

Briggs & Stratton 650561

Screw, Hex washer hd. Durlok, 1/4-20 x 5/8

Note: Contact Generac for quantity required

$

$

Currently unavailable

115

Briggs & Stratton 29752

Nut & Lockwasher, 1/4-28

Note: Contact Generac for quantity required

$

$

Currently unavailable

122

Briggs & Stratton 33463

Dipstick, Oil

Note: (Incl. No. 123) - Contact Generac for quantity required

$

$

Currently unavailable

123

Briggs & Stratton 29673

Gasket, Dipstick

Note: Contact Generac for quantity required-Indicates Parts Included in Gasket Set, Ref. No. 165.

$

$

Not available

124

Briggs & Stratton 34156

Tank Assy., Fuel

Note: (Incl. No. 126) - Contact Generac for quantity required

$

$

Currently unavailable

126

Briggs & Stratton 33032

Cap, Fuel filler

Note: Contact Generac for quantity required

$

$

Currently unavailable

141

Briggs & Stratton 33013

Cover, Starter bubble

Note: Contact Generac for quantity required

$

$

Currently unavailable

142

Briggs & Stratton 650760

Screw, Pan hd. taptite, 8-32 x 7/16

Note: Contact Generac for quantity required

$

$

Currently unavailable

143

Briggs & Stratton 28820

Screw, Fil. hd. Sems, 10-32 x 1/2
(Superseded to 7045199YP)

Note: Contact Generac for quantity required

$222.99

$

Usually ships in 2-12 days

0

144

Briggs & Stratton 27272

Gasket, Air cleaner

Note: Contact Generac for quantity required - Indicates Parts Included in Gasket Set, Ref. No. 165.

$

$

Currently unavailable

145

Briggs & Stratton 33266

Bracket, Air cleaner

Note: Contact Generac for quantity required

$

$

Currently unavailable

146

Briggs & Stratton 33268

Element, Air cleaner

Note: Contact Generac for quantity required

$

$

Currently unavailable

147

Briggs & Stratton 33269A

Cover, Air cleaner

Note: Contact Generac for quantity required

$

$

Currently unavailable

148

Briggs & Stratton 33267

Bracket, Air cleaner

Note: Contact Generac for quantity required

$

$

Currently unavailable

149

Briggs & Stratton 650513

Nut, Wing, 1/4-20

Note: Contact Generac for quantity required

$

$

Currently unavailable

151

Briggs & Stratton 30845A

Bolt, Gov. spring adjusting

Note: Contact Generac for quantity required

$

$

Currently unavailable

152

Briggs & Stratton 33450

Nut, Lock, 10-32

Note: Contact Generac for quantity required

$

$

Currently unavailable

153

Briggs & Stratton 30886A

Spring, Extension

Note: Contact Generac for quantity required

$

$

Currently unavailable

157

Briggs & Stratton 33876

Gasket, Stator

Note: Contact Generac for quantity required

$

$

Currently unavailable

161

Briggs & Stratton 610842

Magneto

Note: (The complete magneto is not available as an assembly. The magneto number is shown for reference purposes only. Order component parts individually, as shown in parts list.) - Contact Generac for quantity required

$

$

Currently unavailable

162

Briggs & Stratton 631979

Carburetor

Note: (Incl. No. 75) - Contact Generac for quantity required

$

$

Currently unavailable

163

Briggs & Stratton 590479

Starter, Rewind

Note: Contact Generac for quantity required

$10.99

$

Usually ships in 2-12 days

0

165

Briggs & Stratton 33279D

Gasket Set

Note: (Incl. Items 30, 57, 68, 72, 75, 123, 144) - Contact Generac for quantity required

$

$

Currently unavailable
