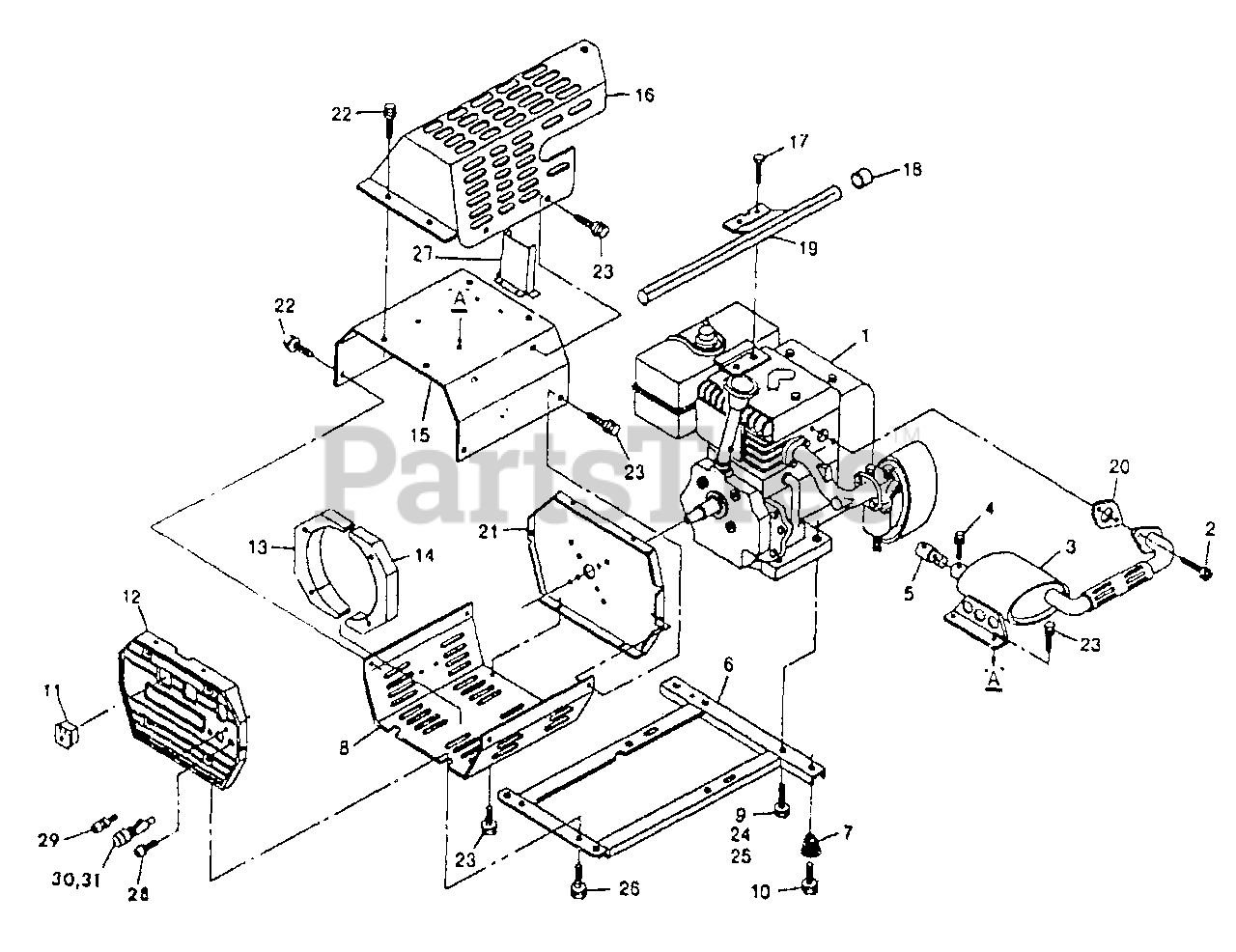

580.328182 (8746-1) - Craftsman 2,100 Watt Portable Generator Sheet Metal And Base Parts Diagram

2,100 Watt Portable Generator

Sheet Metal And Base Parts Diagram

  • Title

1

Briggs & Stratton 63002

ENGINE - Craftsman Model No. 143.742052

$

$

Not available

2

Briggs & Stratton 60706

CAPSCREW, Socket Head - 5/16"-18 x 3/4"

Note: Contact Generac for quantity required.

$

$

Currently unavailable

3

Briggs & Stratton 62281

MUFFLER, Exhaust

Note: (Includes Items 4, 5)

$

$

Currently unavailable

4

Briggs & Stratton 22774

SCREW, Sheet Metal - No. 8 x 3/8"

$

$

Currently unavailable

5

Briggs & Stratton 59604

SCREEN, Spark Arrestor

$

$

Currently unavailable

6

Briggs & Stratton 58898A

BASE, Mounting

$

$

Currently unavailable

7

Briggs & Stratton 23594

SPRING, Mounting

$

$

Currently unavailable

8

Briggs & Stratton 58876A

WRAPPER, Lower

$

$

Currently unavailable

9

Briggs & Stratton 22129

WASHER, Lock - 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 24910

SCREW (Taptite) - 5/16" - 18 x 1/2"

$

$

Not available

11

Briggs & Stratton 58888

RECEPTACLE - 120 Volts, 15 Ampere

$

$

Not available

12

Briggs & Stratton 63112A

PANEL., End

$

$

Currently unavailable

13

Briggs & Stratton 58887B

BAFFLE, Foam - Left

$

$

Currently unavailable

14

Briggs & Stratton 58887A

BAFFLE, Foam - Right

$

$

Currently unavailable

15

Briggs & Stratton 58875A

WRAPPER, Upper

$

$

Currently unavailable

16

Briggs & Stratton 63004

COVER, Head and Muffler

$

$

Currently unavailable

17

Briggs & Stratton 24246

CAPSCREW, Hex Head - 5/16"-18 x 2 3/4"

$1.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 46476

CAP PLUG - 1" Square
(Superseded to 46476GS)

$2.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 63006

HANDLE, Carrying

$

$

Currently unavailable

20

Briggs & Stratton 58894

GASKET, Exhaust
(Superseded to 58894GS)

$3.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 60209

ADAPTER, Sheet Metal

$

$

Currently unavailable

22

Briggs & Stratton 59635

SCREW (Plastite) - No. 8 x 3/8"

$

$

Currently unavailable

23

Briggs & Stratton 56892

SCREW (Crimptite) - No. 10 x 3/8"
(Superseded to 56892GS)

Note: Contact Generac for quantity required.

$3.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 22259

NUT, Hex - 5/16"-18
(Superseded to 22259GS)

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 22142

CAPSCREW, Hex Head - 5/16"-18 x 3/4"
(Superseded to 5022142)

$45.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 59634

SCREW (Plastite) - 1/4" x 1"

$

$

Not available

27

Briggs & Stratton 63003

SHIELD, Dipstick Heat

$

$

Not available

28

Briggs & Stratton 25367

POST, Terminal - Red
(Superseded to 25367GS)

$21.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 25368

POST, Terminal - Black

$

$

Not available

30

Briggs & Stratton 22668

FUSE - 30 Ampere

$

$

Currently unavailable

31

Briggs & Stratton 32300

HOLDER, Fuse
(Superseded to 191302GS)

$

$

Not available

Briggs & Stratton 63130C

KIT, Decal

Note: Contact Generac for quantity required.

$

$

Currently unavailable

Briggs & Stratton 63132

MANUAL, Owner's

Note: Contact Generac for quantity required.

$

$

Not available

Briggs & Stratton A25383

CABLE, Battery Charging

Note: Contact Generac for quantity required.

$

$

Currently unavailable
