580.328182 (8746-1) - Craftsman 2,100 Watt Portable Generator Magneto No. 611038 Parts Diagram

2,100 Watt Portable Generator

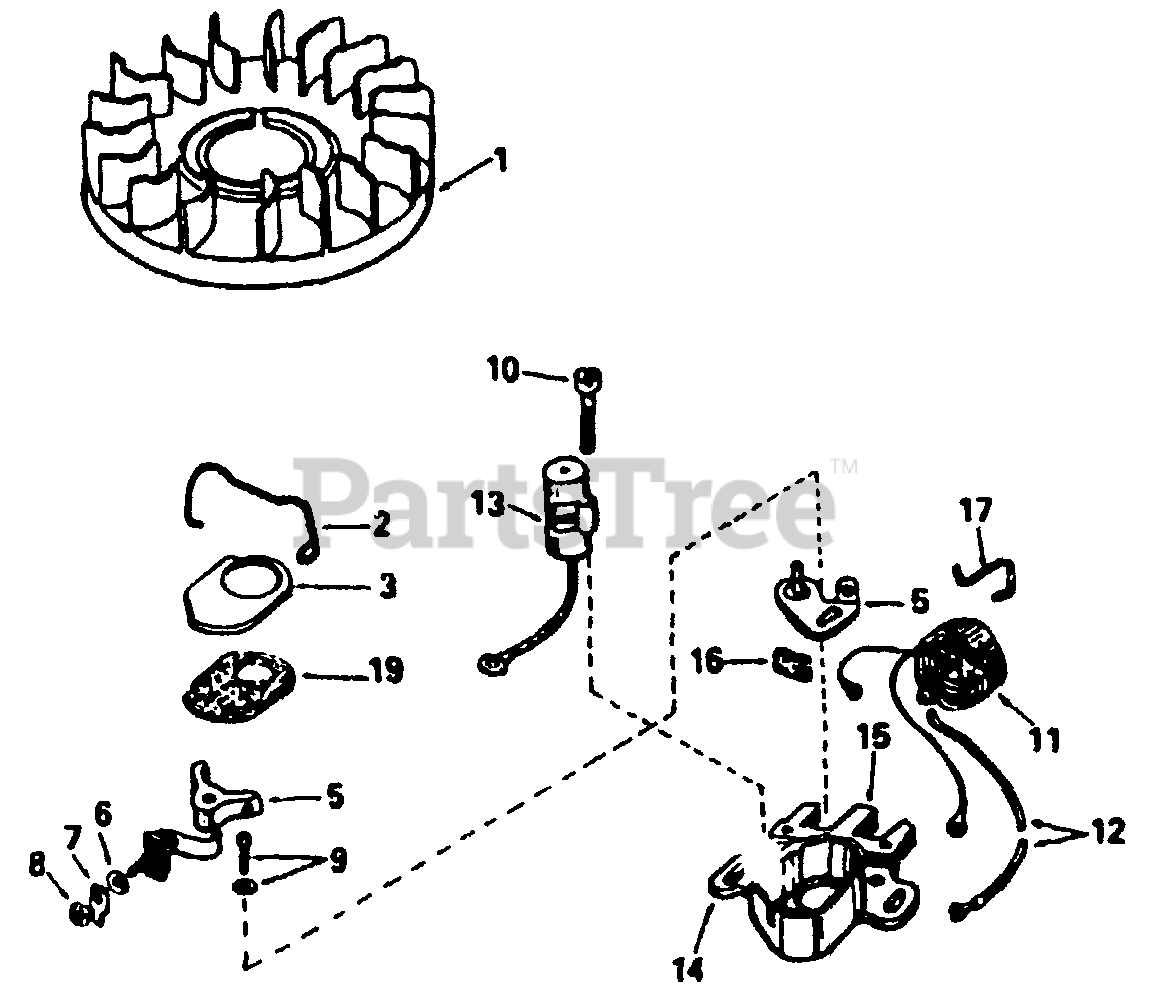

Magneto No. 611038 Parts Diagram

  • Title

Briggs & Stratton 611038

Magneto

Note: Contact Generac for quantity required.

$

$

Currently unavailable

1

Briggs & Stratton 611037

Flywheel

Note: Contact Generac for quantity required.

$

$

Currently unavailable

2

Briggs & Stratton 30551

Spring, Breaker box dust cover

Note: Contact Generac for quantity required.

$1498.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 610947

Cover, Dust

Note: Contact Generac for quantity required.

$

$

Currently unavailable

5

Briggs & Stratton 30547A

Contact Assembly, Breaker

Note: Contact Generac for quantity required.

$

$

Currently unavailable

6

Briggs & Stratton 610385

Washer, Terminal

Note: Contact Generac for quantity required.

$

$

Currently unavailable

7

Briggs & Stratton 33356

Tab, Ground terminal

Note: Contact Generac for quantity required.

$

$

Currently unavailable

8

Briggs & Stratton 610408

Nut, Terminal

Note: Contact Generac for quantity required.

$

$

Currently unavailable

9

Briggs & Stratton 29181

Screw & Washer, Breaker

Note: Contact Generac for quantity required.

$

$

Currently unavailable

10

Briggs & Stratton 610593

Screw, Condenser

Note: Contact Generac for quantity required.

$

$

Currently unavailable

11

Briggs & Stratton 30580A

Coil Assy.

Note: (Incl. No. 12) Contact Generac for quantity required.

$

$

Currently unavailable

12

Briggs & Stratton 30554

Wire, Lead

Note: Contact Generac for quantity required.

$2697.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 30648B

Condenser

Note: Contact Generac for quantity required.

$

$

Currently unavailable

14

Briggs & Stratton 30645

Core & Plate

Note: Contact Generac for quantity required.

$

$

Currently unavailable

15

Briggs & Stratton 30561B

Stator Assy.

Note: (Incl. Nos. 2, thru 11, 13, 14, 16, 17 & 19) Contact Generac for quantity required.

$

$

Currently unavailable

16

Briggs & Stratton 30549

Felt, Cam wiper

Note: Contact Generac for quantity required.

$

$

Currently unavailable

17

Briggs & Stratton 31311

Clip, Coil locking

Note: Contact Generac for quantity required.

$

$

Currently unavailable

19

Briggs & Stratton 610967

Gasket, Dust cover

Note: Contact Generac for quantity required.

$

$

Currently unavailable
