580.328182 (8746-1) - Craftsman 2,100 Watt Portable Generator Carburetor No. 632230 Parts Diagram

2,100 Watt Portable Generator

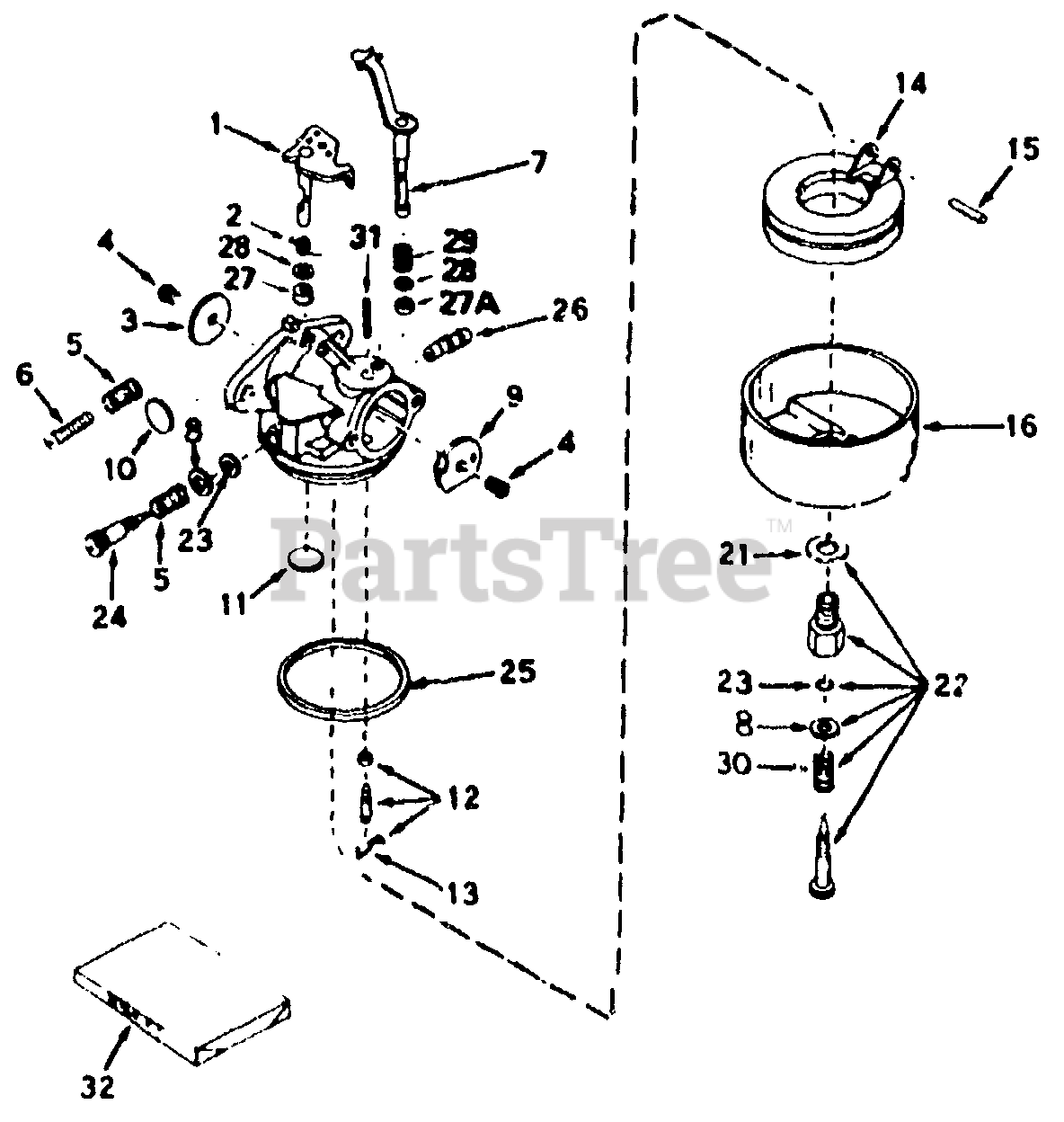

Carburetor No. 632230 Parts Diagram

  • Title

Briggs & Stratton 632230

Carburetor

Note: Contact Generac for quantity required.

$

$

Currently unavailable

1

Briggs & Stratton 31834

Shaft & Lever Assy., Throttle

Note: Contact Generac for quantity required.

$

$

Currently unavailable

2

Briggs & Stratton 631767

Spring, Throttle return

Note: Contact Generac for quantity required.

$

$

Currently unavailable

3

Briggs & Stratton 631036

Shutter, Throttle

Note: Contact Generac for quantity required.

$

$

Currently unavailable

4

Briggs & Stratton 650506

Screw, Rd. washer hd., 4-40 x 3/16

Note: Contact Generac for quantity required.

$

$

Currently unavailable

5

Briggs & Stratton 630766

Spring, Idle regulating screw

Note: Contact Generac for quantity required.

$

$

Currently unavailable

6

Briggs & Stratton 860417

Screw, Idle regulating

Note: Contact Generac for quantity required.

$

$

Currently unavailable

7

Briggs & Stratton 31836

Shaft & Lever Assy., Choke

Note: Contact Generac for quantity required.

$

$

Currently unavailable

8

Briggs & Stratton 630739

Washer

Note: Contact Generac for quantity required.

$

$

Currently unavailable

9

Briggs & Stratton 631890

Shutter, Choke

Note: Contact Generac for quantity required.

$

$

Currently unavailable

10

Briggs & Stratton 630748

Plug, Welch

Note: Included in Repair Kit, P/N 632235. Contact Generac for quantity required.

$

$

Currently unavailable

11

Briggs & Stratton 631027

Plug, Welch

Note: Included in Repair Kit, P/N 632235. Contact Generac for quantity required.

$

$

Currently unavailable

12

Briggs & Stratton 631021

Inlet Needle, Seat & Clip Assy.

Note: (Incl. No. 13) and Included in Repair Kit, P/N 632235. Contact Generac for quantity required.

$

$

Currently unavailable

13

Briggs & Stratton 631022

Clip, Inlet Needle

Note: Contact Generac for quantity required.

$

$

Currently unavailable

14

Briggs & Stratton 632019

Float, Carburetor

Note: Contact Generac for quantity required.

$

$

Currently unavailable

15

Briggs & Stratton 631024

Shaft, Float

Note: Included in Repair Kit, P/N 632235. Contact Generac for quantity required.

$

$

Currently unavailable

16

Briggs & Stratton 631867

Bowl, Float

Note: Contact Generac for quantity required.

$

$

Currently unavailable

21

Briggs & Stratton 27110

Gasket, Bowl-to-body
(Superseded to 7027110YP)

Note: Contact Generac for quantity required.

$11.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 632234

Adjustment Screw Assy., Main

Note: (Incl. Nos. 8, 21, 23 & 30) also Included in Repair Kit, P/N 632235. Contact Generac for quantity required.

$

$

Currently unavailable

23

Briggs & Stratton 630740

"O" Ring, Adjustment screw

Note: Included in Repair Kit, P/N 632235. Contact Generac for quantity required.

$

$

Currently unavailable

24

Briggs & Stratton 631078

Screw, Idle adjustment

Note: Included in Repair Kit, P/N 632235. Contact Generac for quantity required.

$

$

Currently unavailable

25

Briggs & Stratton 631028

Gasket, Bowl-to-body

Note: Included in Repair Kit, P/N 632235. Contact Generac for quantity required.

$

$

Currently unavailable

26

Briggs & Stratton 632164

Fitting, Fuel Inlet

Note: Contact Generac for quantity required.

$

$

Currently unavailable

27

Briggs & Stratton 631971

Seal, Dust

Note: Contact Generac for quantity required.

$

$

Currently unavailable

27A

Briggs & Stratton 631183

Soal, Dust

Note: Contact Generac for quantity required.

$

$

Currently unavailable

28

Briggs & Stratton 631184

Washer, Dust seal

Note: Contact Generac for quantity required.

$

$

Currently unavailable

29

Briggs & Stratton 632042

Spring, Choke return

Note: Contact Generac for quantity required.

$

$

Currently unavailable

30

Briggs & Stratton 630738

Spring, Main adjustment screw

Note: Contact Generac for quantity required.

$

$

Currently unavailable

31

Briggs & Stratton 630735

Spring, Choke stop

Note: Contact Generac for quantity required.

$

$

Currently unavailable

32

Briggs & Stratton 632235

Repair Kit

Note: (Includes item Nos. 10, 11, 12, 15, 22, 23, 24, & 25) Contact Generac for quantity required.

$

$

Currently unavailable
