580.328172 (8760-2) - Craftsman 1,350 Watt Portable Generator Sheet Metal & Base Parts Diagram

1,350 Watt Portable Generator

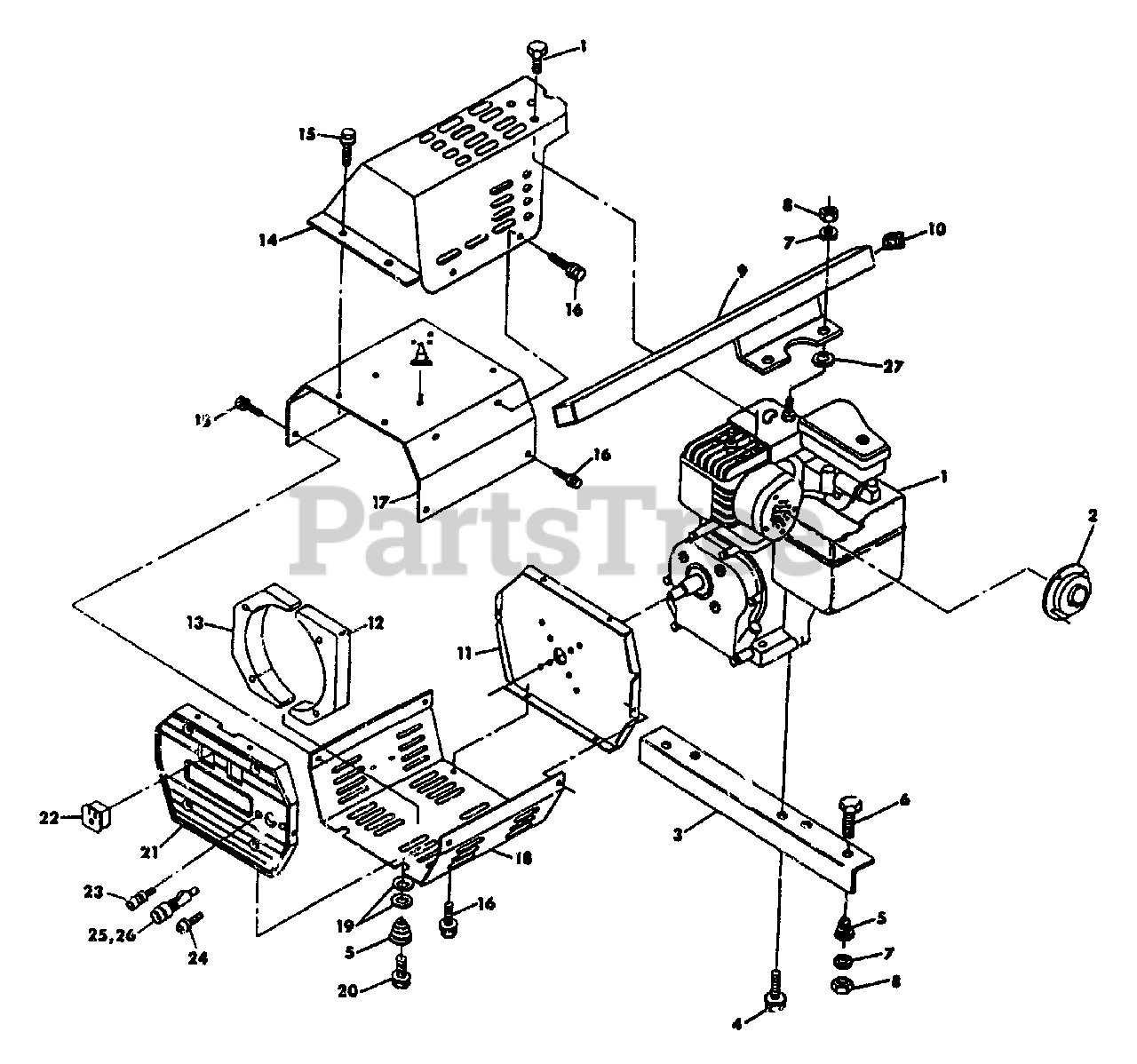

Sheet Metal & Base Parts Diagram

  • Title

1

Briggs & Stratton 63190

ENGINE - Briggs & Stratton 3 HP

$

$

Currently unavailable

2

Briggs & Stratton 61491

KIT, Spark Arrestor Screen

Note: Contact Generac for quantity required

$

$

Currently unavailable

3

Briggs & Stratton 24509

SUPPORT, Engine

$

$

Currently unavailable

4

Briggs & Stratton 59637

SCREW (Taptite) - 3/8"-16 x 3/4"

$

$

Not available

5

Briggs & Stratton 23594

SPRING, Mounting

$

$

Currently unavailable

6

Briggs & Stratton 22142

CAPSCREW, Hex Head 5/16"-18 x 3/4"
(Superseded to 5022142)

$45.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 22129

WASHER, Lock - 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

8

Briggs & Stratton 22259

NUT, Hex - 5/16"-18
(Superseded to 22259GS)

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 62439

HANDLE, Carrying
(Superseded to 7062439YP)

$77.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 46476

PLUG - Plastic
(Superseded to 46476GS)

$2.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 60209A

ADAPTER, Sheet Metal

$

$

Currently unavailable

12

Briggs & Stratton 58887A

BAFFLE, Generator Air - RH

$

$

Currently unavailable

13

Briggs & Stratton 58887B

BAFFLE, Generator Air - LH

$

$

Currently unavailable

14

Briggs & Stratton 58873

COVER, Head

$

$

Not available

15

Briggs & Stratton 59635

SCREW (Plastite) - No. 8 x 3/8"

$

$

Currently unavailable

16

Briggs & Stratton 56892

SCREW (Crimptite) - No. 10 x 3/8"
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 58875A

WRAPPER, Generator Upper

$

$

Currently unavailable

18

Briggs & Stratton 58876A

WRAPPER, Generator Lower

$

$

Currently unavailable

19

22473

WASHER, Flat - 1/4"

$

$

Not available

20

Briggs & Stratton 59634

SCREW (Plastite) - No. 1/4" x 1"

$

$

Not available

21

Briggs & Stratton 63112A

PANEL, End

$

$

Currently unavailable

22

Briggs & Stratton 58888

RECEPTACLE - 120 VAC

$

$

Not available

23

Briggs & Stratton 25368

TERMINAL, Battery Charge - Black

$

$

Not available

24

Briggs & Stratton 25367

TERMINAL, Battery Charge - Red
(Superseded to 25367GS)

$21.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 22668

FUSE, Battery Charge - 30 Ampere

$

$

Currently unavailable

26

Briggs & Stratton 32300

HOLDER, Fuse
(Superseded to 191302GS)

$

$

Not available

27

-----

WASHER, Flat - 5/16"

$

$

Not available

Briggs & Stratton 63130B

KIT, Decal

$

$

Currently unavailable

Briggs & Stratton 63196

MANUAL, Owner's
(Superseded to 63196GS)

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton A25383

CABLE, Battery Charge

$

$

Currently unavailable
