580.328160 (8759-0) - Craftsman 750 Watt Portable Generator Recoil Starter Parts Diagram

750 Watt Portable Generator

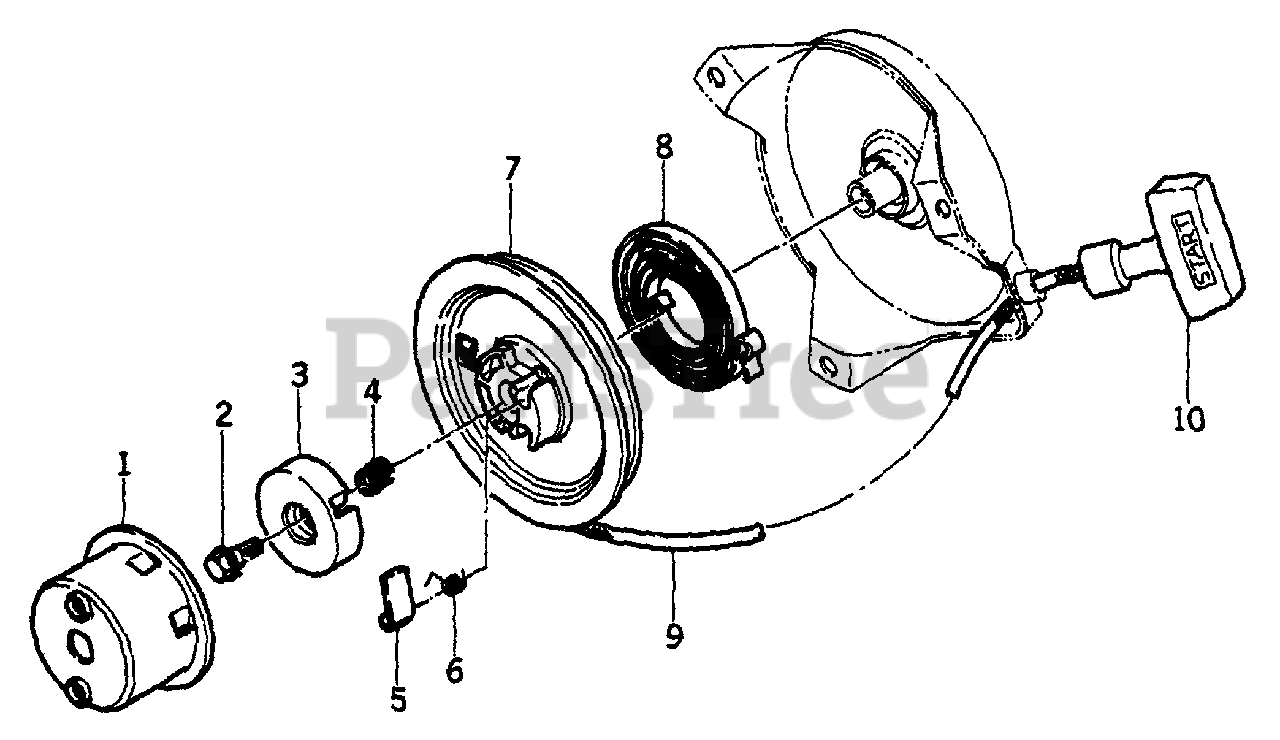

Recoil Starter Parts Diagram

  • Title

Briggs & Stratton 14261892

ASSEMBLY, Recoil Starter

Note: (Includes Items 1-10) Contact Generac for quantity required

$

$

Currently unavailable

1

Briggs & Stratton 23161892

PULLEY

Note: Contact Generac for quantity required

$

$

Currently unavailable

2

Briggs & Stratton 23261892

BOLT

Note: Contact Generac for quantity required

$

$

Currently unavailable

3

Briggs & Stratton 23361892

RETAINER

Note: Contact Generac for quantity required

$

$

Currently unavailable

4

Briggs & Stratton 23461892

SPRING

Note: Contact Generac for quantity required

$

$

Currently unavailable

5

Briggs & Stratton 23561892

PAWL, Recoil

Note: Contact Generac for quantity required

$

$

Currently unavailable

6

Briggs & Stratton 23661892

SPRING, Return

Note: Contact Generac for quantity required

$

$

Currently unavailable

7

Briggs & Stratton 23761892

REEL, Recoil

Note: Contact Generac for quantity required

$

$

Currently unavailable

8

Briggs & Stratton 23861892

SPRING, Recoil

Note: Contact Generac for quantity required

$

$

Currently unavailable

9

Briggs & Stratton 23961892

ROPE - 4 x 1120 mm

Note: Contact Generac for quantity required

$

$

Currently unavailable

10

Briggs & Stratton 24061892

HANDLE, Recoil Starter

Note: Contact Generac for quantity required

$

$

Currently unavailable
