580.328160 (8759-0) - Craftsman 750 Watt Portable Generator Generator Parts Diagram

750 Watt Portable Generator

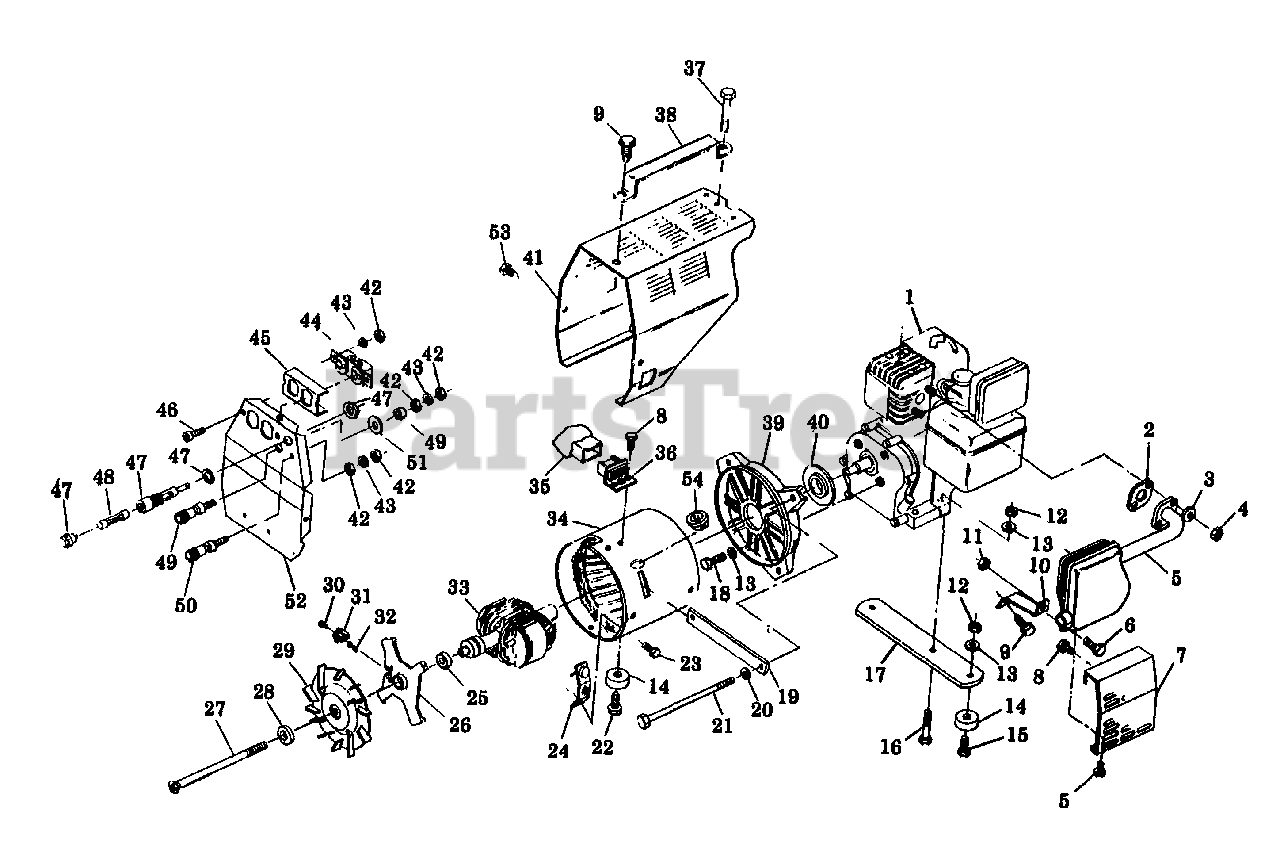

Generator Parts Diagram

  • Title

1

Briggs & Stratton 61892

ENGINE - 1.6 Horsepower

$

$

Currently unavailable

2

Briggs & Stratton 63042

GASKET, Exhaust
(Superseded to 7063042YP)

$199.99

$

Usually ships in 2-12 days

0

3

22473

WASHER, Flat - M6

$

$

Not available

4

Briggs & Stratton 49813

NUT, Hex - M6-1.00
(Superseded to 49813GS)

$2.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 61893

MUFFLER, Spark Arrest

$

$

Not available

6

Briggs & Stratton 43116

CAPSCREW, Hex Head - M6-1.00 x 12 mm
(Superseded to 43116GS)

$3.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 63027

SHIELD, Heat

$

$

Currently unavailable

8

Briggs & Stratton 56892

SCREW (Crimptite) - No. 10-24 x 3/8"
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 58442

SCREW (Crimptite) - 1/4"-20

$

$

Currently unavailable

10

Briggs & Stratton 63018

SUPPORT, Exhaust Muffler

$

$

Currently unavailable

11

Briggs & Stratton 52857

NUT, Flanged - M6-1.00
(Superseded to 52857GS)

$3.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 22259

NUT, Hex - 5/16"-18
(Superseded to 22259GS)

$3.49

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 22129

WASHER, Lock - 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

14

Briggs & Stratton 63015

MOUNT, Vibration

$

$

Currently unavailable

15

Briggs & Stratton 22142

CAPSCREW, Hex Head - 5/16"-18 x 3/4"
(Superseded to 5022142)

$45.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 22283

CAPSCREW, Hex Head - 5/16"-18 x 1 1/2"
(Superseded to 22283GS)

$1.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 63012

SUPPORT, Engine

$

$

Currently unavailable

18

Briggs & Stratton 22336

CAPSCREW, Hex Head - 5/16"-24 x 3/4"

$

$

Not available

19

Briggs & Stratton 44338

BAR, Stator

$

$

Currently unavailable

20

Briggs & Stratton 22097

WASHER, Lock - 1/4"
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 44395J

CAPSCREW, Hex Head - 1/4"-20 x 5"

$

$

Currently unavailable

22

Briggs & Stratton 29026

SCREW (Taptite) - 1/4"-20 x 1/2"

$

$

Currently unavailable

23

Briggs & Stratton 24489

SCREW (Taptite) No. 10-32 x 3/8"

$

$

Currently unavailable

24

Briggs & Stratton 44722

DIODE ASSEMBLY

$

$

Currently unavailable

25

Briggs & Stratton 24049

BEARING, Ball

$

$

Not available

26

Briggs & Stratton 44943

PLATE, Bearing Carrier

$

$

Currently unavailable

27

Briggs & Stratton 63010

BOLT, Rotor

$

$

Currently unavailable

28

Briggs & Stratton 63011

WASHER - Special

$

$

Not available

29

Briggs & Stratton 44331

FAN

$

$

Not available

30

Briggs & Stratton 25105

SCREW (Sims) - No. 6-32 x 1/4"
(Superseded to 25105GS)

$1.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 23877D

HOLDER, Brush
(Superseded to 23877DGS)

$11.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton A24044A

BRUSH
(Superseded to A24044AGS)

$11.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 63016

ROTOR ASSEMBLY
(Superseded to 7063016YP)

$211.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 63017

STATOR ASSEMBLY

$

$

Currently unavailable

35

Briggs & Stratton 28293

BRIDGE ASSEMBLY

$

$

Currently unavailable

36

Briggs & Stratton 51721

SUPPORT, Rectifier

$

$

Currently unavailable

37

Briggs & Stratton 51767

SCREW, Hex Head Machine - M6-1.00 x 45 mm
(Superseded to 51767GS)

$3.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 63013

HANDLE, Carrying

$

$

Currently unavailable

39

Briggs & Stratton 62257

HOUSING, Adapter

$

$

Currently unavailable

40

Briggs & Stratton 62258

RING, Adapter

$

$

Currently unavailable

41

Briggs & Stratton 63026

WRAPPER, Generator

$

$

Currently unavailable

42

Briggs & Stratton 22471

NUT, Hex - No. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

43

Briggs & Stratton 22264

WASHER, Lock - No. 8

$

$

Not available

44

Briggs & Stratton 63025

RECEPTACLE - Duplex 115 VAC
(Superseded to 63025GS)

$12.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 63024

INSULATOR

$

$

Currently unavailable

46

Briggs & Stratton 28985

SCREW, Pan Head Machine - No. 8-32 x 3/8"

$

$

Currently unavailable

47

Briggs & Stratton 32300

HOLDER, Fuse
(Superseded to 191302GS)

$

$

Not available

48

Briggs & Stratton 22668

FUSE - 30 Ampere

$

$

Currently unavailable

49

Briggs & Stratton 25367

POST, Terminal - Red
(Superseded to 25367GS)

$21.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 25388

POST, Terminal - Black

$

$

Currently unavailable

51

Briggs & Stratton 30798

WASHER, Fiber

$

$

Currently unavailable

52

Briggs & Stratton 63021

PANEL, End - SEARS

$

$

Currently unavailable

53

Briggs & Stratton 63036

SCREW (Crimptite) - No. 8-18 x 3/8"
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 23484D

BUSHING

$

$

Currently unavailable

Briggs & Stratton A25383

CABLE, Battery Charging

$

$

Currently unavailable

Briggs & Stratton 63034

MANUAL, Owner's

$

$

Not available

Briggs & Stratton 63120A

KIT, Generator Set Decal

$

$

Currently unavailable
