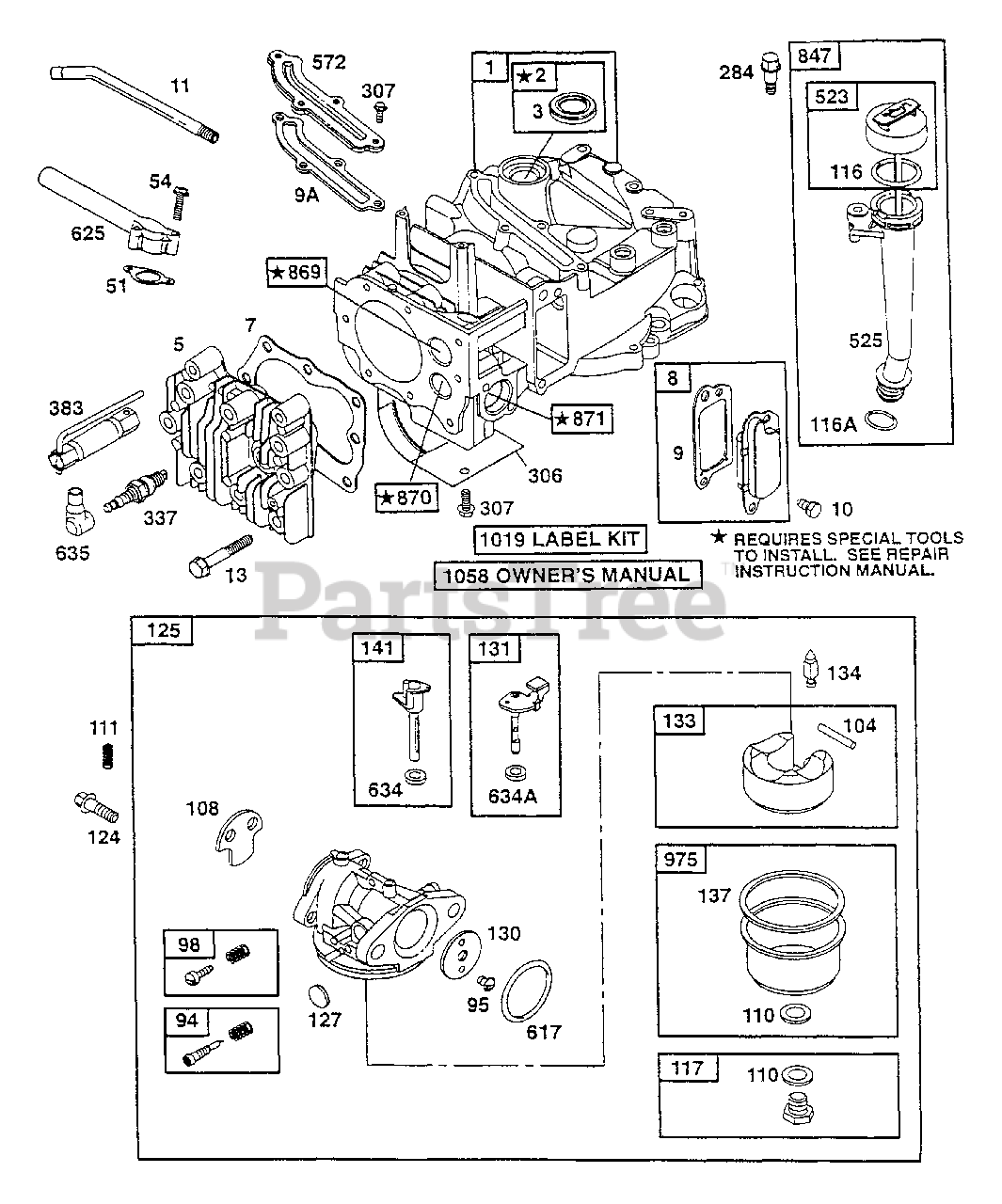

580.327700 (0647-0) - Craftsman 2,000 Watt Portable Generator 4-Cycle Engine I Parts Diagram

2,000 Watt Portable Generator

4-Cycle Engine I Parts Diagram

  • Title

1

Briggs & Stratton 493260

Cylinder Assembly
(Superseded to 592645)

$295.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 293708

Bushing
(Superseded to 796961)

$21.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 299819

Oil Seal
(Superseded to 299819S)

$5.49

$

In Stock, Qty 13

0

5

Briggs & Stratton 214368

Cylinder Head
(Superseded to 594989)

$55.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 272916

Cylinder Head Gasket
(Superseded to 692249)

$8.49

$

In Stock, Qty 20+

0

8

Briggs & Stratton 495786

Breather Assembly
(Superseded to 590395)

$14.99

$

In Stock, only 1 left!

0

9

Briggs & Stratton 272481

Breather Gasket
(Superseded to 699833)

$5.49

$

Usually ships in 2-12 days

0

9A

Briggs & Stratton 272238

Breather Gasket
(Superseded to 691879)

$6.99

$

In Stock, only 1 left!

0

10

Briggs & Stratton 94650

Hex Screw

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 231933

Breather Tube
(Superseded to 691781)

$10.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 94547

Hex Screw
(Superseded to 690912)

$3.99

$

In Stock, Qty 19

0

51

Briggs & Stratton 272199

Intake Gasket
(Superseded to 272199S)

$4.99

$

In Stock, only 1 left!

0

54

Briggs & Stratton 94526

Hex. Screw
(Superseded to 691650)

$2.99

$

Usually ships in 2-12 days

0

94

Briggs & Stratton 493765

Idle Adjust Valve

$14.99

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 94098

Slotted Screw
(Superseded to 691636)

$3.99

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 398185

Slotted Screw

$7.99

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 231371

Float Hinge Pin
(Superseded to 797622)

$3.99

$

In Stock, Qty 10

0

108

Briggs & Stratton 224449

Choke Valve
(Superseded to 692567)

$9.49

$

Usually ships in 2-12 days

0

110

-----

Bowl Washer

Note: Included in Carb & Gasket Kit

$

$

Not available

111

Briggs & Stratton 262715

Lever Spring
(Superseded to 590931)

$5.49

$

In Stock, Qty 11

0

116

Briggs & Stratton 280393

Cap Seal
(Superseded to 691031)

$5.49

$

In Stock, Qty 20+

0

116A

Briggs & Stratton 280966

O-ring Seal
(Superseded to 692296)

$4.99

$

In Stock, only 1 left!

0

117

Briggs & Stratton 498978

Main Jet

Note: Standard; 497466 Main Jet (High Altitude)

$

$

Not available

124

Briggs & Stratton 94525

Hex. Screw
(Superseded to 691688)

$4.49

$

In Stock, only 1 left!

0

125

Briggs & Stratton 499059

Carburetor

$

$

Not available

127

-----

Welch Plug

Note: Sold in kit only

$

$

Not available

130

Briggs & Stratton 223470

Throttle Valve
(Superseded to 691181)

$7.49

$

Usually ships in 2-12 days

0

131

Briggs & Stratton 493267

Throttle Shaft

$16.99

$

In Stock, only 4 left!

0

133

Briggs & Stratton 398187

Carburetor Float

$9.99

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Needle Valve

Note: Includes seat

$6.49

$

In Stock, Qty 20+

0

137

-----

Float Bowl Gasket

Note: Sold in kit only

$

$

Not available

141

Briggs & Stratton 498593

Choke Shaft

$15.99

$

Usually ships in 2-12 days

0

284

Briggs & Stratton 94511

Shoulder Screw
(Superseded to 690940)

$3.99

$

In Stock, Qty 5

0

306

Briggs & Stratton 224324

Cylinder Shield
(Superseded to 690450)

$10.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 94515

Hex. Screw
(Superseded to 690345)

$4.99

$

Usually ships in 2-12 days

0

337

Briggs & Stratton 802592

Spark Plug
(Superseded to 796112S)

$4.49

$

In Stock, Qty 20+

0

383

Briggs & Stratton 89838

Spark Plug Wrench
(Superseded to 89838S)

$6.49

$

In Stock, only 4 left!

0

523

Briggs & Stratton 495264

Dip Stick
(Superseded to 499621)

$17.99

$

In Stock, only 4 left!

0

525

Briggs & Stratton 495265

Oil Fill Tube

$

$

Not available

572

Briggs & Stratton 224328

Cylinder Baffle
(Superseded to 697734)

$9.49

$

Usually ships in 2-12 days

0

617

Briggs & Stratton 270334

Intake Manifold Seal

$

$

Currently unavailable

625

Briggs & Stratton 281085

Intake Manifold
(Superseded to 794305)

$

$

Not available

634

-----

Choke Shaft Seal

Note: Sold in Kit Only

$

$

Not available

634A

-----

Foam Washer

Note: Sold in Kit Only

$

$

Not available

635

Briggs & Stratton 66538

Spark Plug Boot
(Superseded to 66538S)

$3.99

$

In Stock, Qty 5

0

847

Briggs & Stratton 495263

Dipstick/Tube Assembly
(Superseded to 692047)

$

$

Not available

869

Briggs & Stratton 213512

Intake Valve Seat
(Superseded to 691155)

$8.99

$

Usually ships in 2-12 days

0

870

Briggs & Stratton 212513

Exhaust Valve Seat

$

$

Currently unavailable

871

Briggs & Stratton 262001

Guide Bushing (Exhaust)

$13.99

$

Usually ships in 2-12 days

0

871

Briggs & Stratton 63709

Guide Bushing (Intake)

$14.99

$

Usually ships in 2-12 days

0

975

Briggs & Stratton 493640

Float Bowl
(Superseded to 796611)

$

$

Not available

1019

Briggs & Stratton 494256

Label Kit

$26.99

$

Usually ships in 2-12 days

0

1058

Briggs & Stratton 273125

Owner's Manual

$

$

Currently unavailable
