580.327290 (9783-0) - Craftsman 6,500 Watt Portable Generator Crankcase H.S. With Taper Plugs & 6600 Watt AC Generator Parts Diagram

6,500 Watt Portable Generator

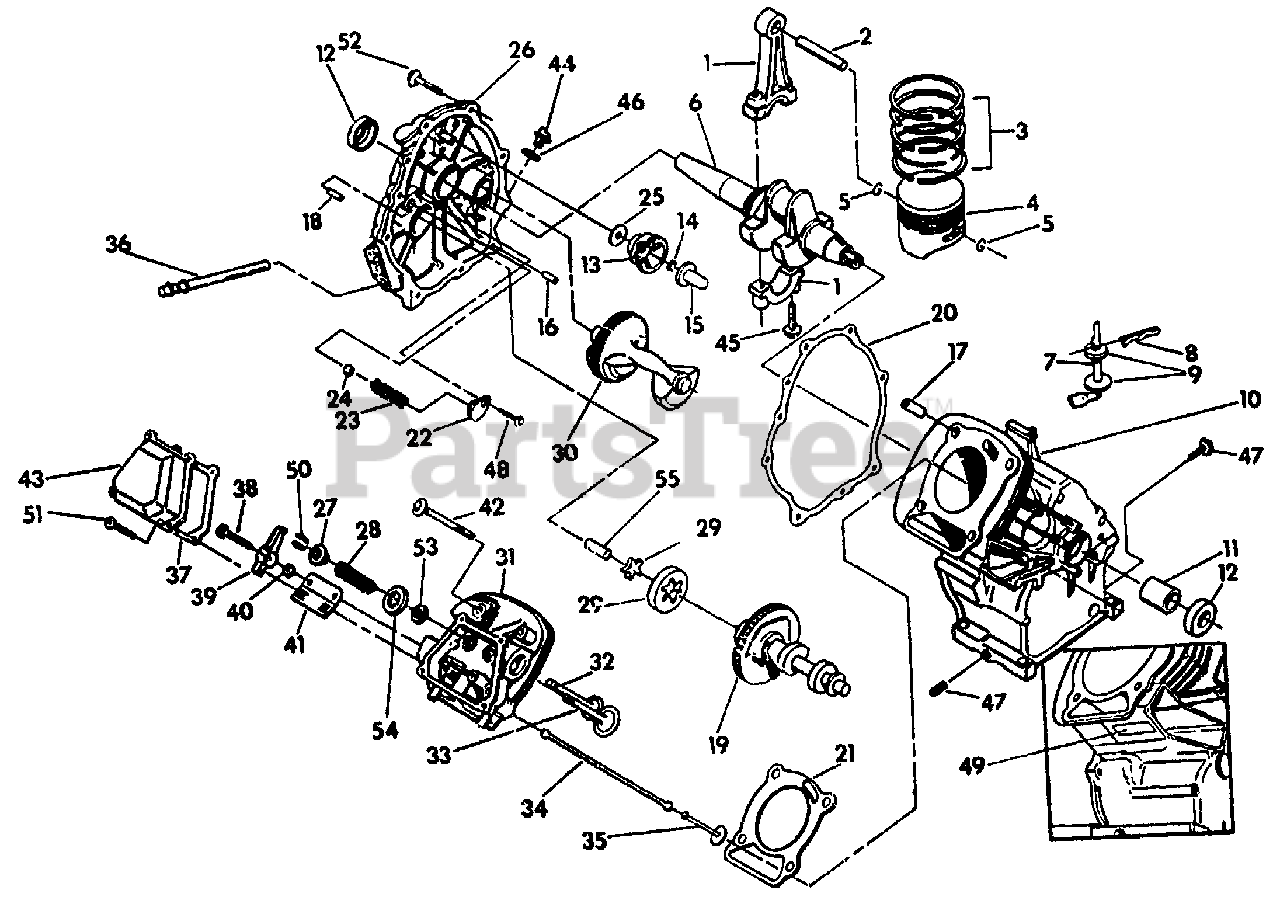

Crankcase H.S. With Taper Plugs & 6600 Watt AC Generator Parts Diagram

  • Title

1

Briggs & Stratton 71978

CONNECTING ROD WITH CAP AND BOLT

$

$

Currently unavailable

2

Briggs & Stratton 71980

PISTON PIN

$

$

Currently unavailable

3

Briggs & Stratton 71977

PISTON RING SET

$

$

Currently unavailable

4

Briggs & Stratton 76339

PISTON

$

$

Currently unavailable

5

Briggs & Stratton 71983

PISTON PIN RETAINER

$

$

Not available

6

Briggs & Stratton 78666

CRANKSHAFT ASSEMBLY WITH GEARS

$

$

Currently unavailable

7

Briggs & Stratton 83948

GOVERNOR ARM

$

$

Currently unavailable

8

Briggs & Stratton 78658

GOVERNOR ARM "R" PIN

$

$

Not available

9

Briggs & Stratton 78659

GOVERNOR ARM WASHER

$

$

Not available

10

Briggs & Stratton 88261

CRANKCASE H.S. WITH TAPER PLUGS

$

$

Currently unavailable

11

Briggs & Stratton 72654

SLEEVE BEARING

$

$

Currently unavailable

12

Briggs & Stratton 72855

CRANKSHAFT SEAL

$

$

Currently unavailable

13

Briggs & Stratton 83912

GOVERNOR GEAR ASSEMBLY

$

$

Currently unavailable

14

Briggs & Stratton 78645

GOVERNOR RETAINER ("C" RING)

$

$

Not available

15

Briggs & Stratton 76365

GOVERNOR SPOOL

$

$

Currently unavailable

16

Briggs & Stratton 78699B

SLEEVE DOWEL

$

$

Currently unavailable

17

Briggs & Stratton 78699C

SLEEVE DOWEL

$

$

Currently unavailable

18

Briggs & Stratton 87710

SOLID DOWEL

$

$

Currently unavailable

19

Briggs & Stratton 83932

CAMSHAFT ASSEMBLY

$

$

Currently unavailable

20

Briggs & Stratton 76701

CRANKCASE GASKET

$

$

Not available

21

Briggs & Stratton 73142

CYLINDER HEAD GASKET
(Superseded to 7073142YP)

$16.99

$

In Stock, Qty 7

0

22

Briggs & Stratton 78691

OIL PRESSURE RELIEF COVER

$

$

Not available

23

Briggs & Stratton 83918

PRESSURE RELIEF SPRING

$

$

Currently unavailable

24

Briggs & Stratton 76362

PRESSURE RELIEF BALL

$

$

Currently unavailable

25

Briggs & Stratton 76361

THRUST WASHER

$

$

Not available

26

Briggs & Stratton 88260B

GEAR COVER

$

$

Currently unavailable

27

Briggs & Stratton 86514

VALVE SPRING RETAINER

$

$

Not available

28

Briggs & Stratton 83946

VALVE SPRING

$

$

Currently unavailable

29

Briggs & Stratton 86025

GEROTER SET

$

$

Not available

30

Briggs & Stratton 84430

BALANCER

$

$

Currently unavailable

31

Briggs & Stratton 83923

CYLINDER HEAD WITH VALVE SEATS AND GUIDES

$

$

Currently unavailable

32

Briggs & Stratton 86516

EXHAUST VALVE

$

$

Not available

33

Briggs & Stratton 86517

INTAKE VALVE

$

$

Not available

34

Briggs & Stratton 83890

PUSH ROD

$

$

Currently unavailable

35

Briggs & Stratton 83897

TAPPET

$

$

Not available

36

Briggs & Stratton 77158

OIL PICK-UP ASSEMBLY

$

$

Not available

37

Briggs & Stratton 71987

ROCKER COVER GASKET
(Superseded to 7071987YP)

$12.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 72694

PIVOT BALL STUD

$

$

Not available

39

Briggs & Stratton 83907

ROCKER ARM

$

$

Not available

40

Briggs & Stratton 72696

JAM NUT, ROCKER ARM

$

$

Currently unavailable

41

Briggs & Stratton 78694

PUSH ROD GUIDE PLATE

$

$

Not available

42

Briggs & Stratton 73149

HEAD BOLT - M10 x 100mm

$

$

Currently unavailable

43

Briggs & Stratton 83938

ROCKER COVER BREATHER ASSEMBLY

$

$

Not available

44

Briggs & Stratton 76329

OIL FILL PLUG

$

$

Not available

45

Briggs & Stratton 71979

CONNECTING ROD BOLT

$

$

Currently unavailable

46

Briggs & Stratton 86254

O-RING - 17.8mm I.D. x 2.4mm thick

$

$

Currently unavailable

47

Briggs & Stratton 78697

PIPE PLUG, 3/8" NPT

$

$

Currently unavailable

48

Briggs & Stratton 78692

SCREW - M5-0.8 x 8mm

$

$

Currently unavailable

49

Briggs & Stratton 82773B

DECAL

$

$

Currently unavailable

50

Briggs & Stratton 86515

VALVE SPRING KEEPER

$

$

Not available

51

Briggs & Stratton 78606

PAN HEAD SCREW AND WASHER - M6-1.0 x 12mm

$

$

Currently unavailable

52

Briggs & Stratton 73144

FLANGE BOLT, HEX HEAD - M8-1.25 x 45mm

$

$

Currently unavailable

53

Briggs & Stratton 78672

VALVE STEM SEAL

$

$

Not available

54

Briggs & Stratton 89673

VALVE SPRING WASHER

$

$

Not available

55

Briggs & Stratton 83921

GENERATOR BEARING TUBE SHAFT

$

$

Currently unavailable
