580.327290 (9783-0) - Craftsman 6,500 Watt Portable Generator Control Panel Box No. 93619 Parts Diagram

6,500 Watt Portable Generator

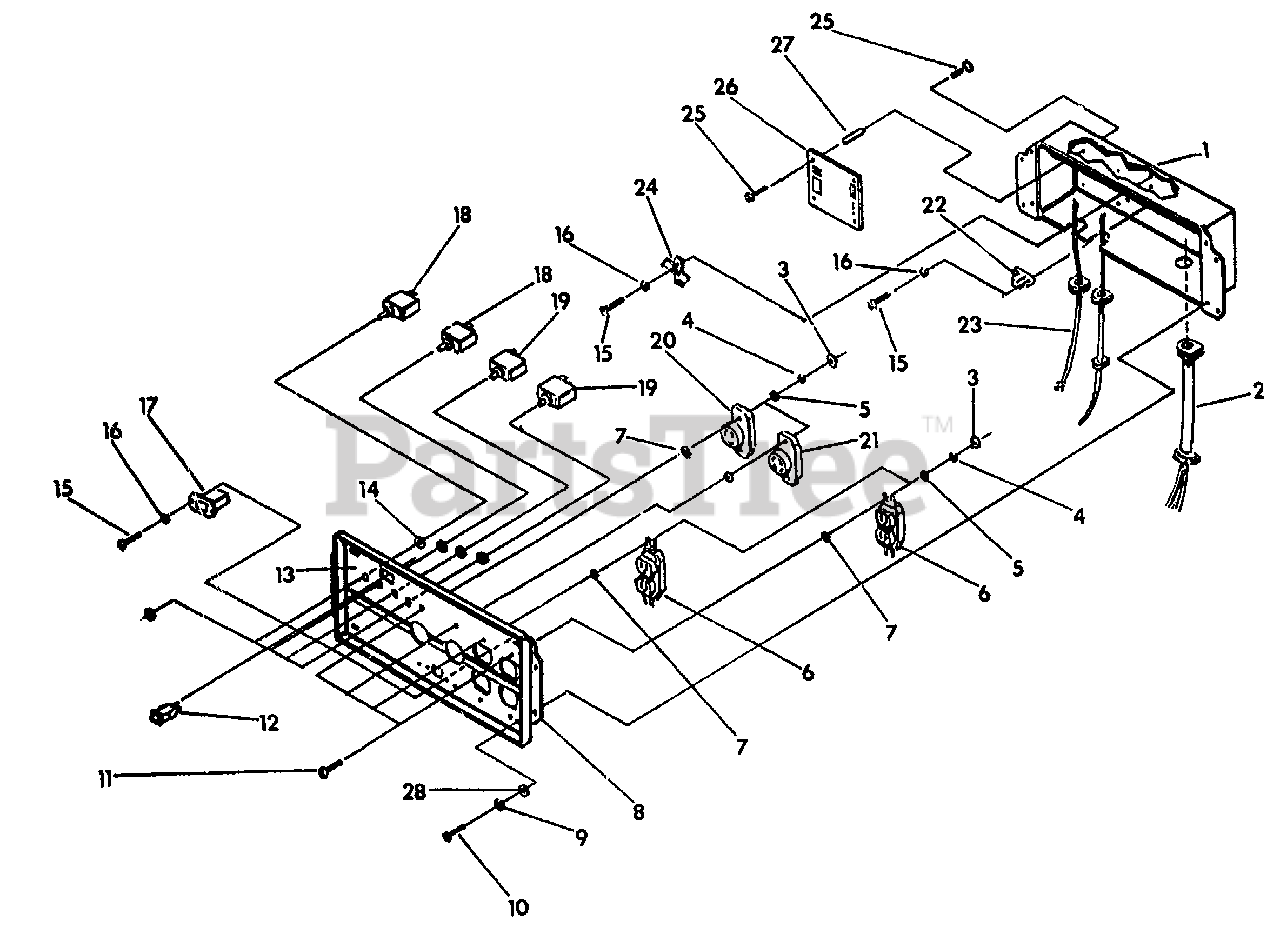

Control Panel Box No. 93619 Parts Diagram

  • Title

1

Briggs & Stratton 92069

CONTROL PANEL BOX

$

$

Not available

2

Briggs & Stratton 84134

CONNECTOR GROMMET
(Superseded to 84134GS)

$5.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 51715

NUT, HEX - M4-0.7
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 22264

LOCK WASHER, #8

$

$

Not available

5

Briggs & Stratton 43180

FLAT WASHER, M4
(Superseded to 5043180B)

$54.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 68759

120 VOLTS, 20 AMP DUPLEX OUTLET
(Superseded to 68759GS)

$24.99

$

In Stock, only 4 left!

0

7

Briggs & Stratton 23365

WASHER, SHAKEPROOF #8
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 92569

CONTROL PANEL

$

$

Not available

9

Briggs & Stratton 49226

LOCK WASHER, M5
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 91526

SCREW, M5-0.8 x 12mm

$

$

Not available

11

Briggs & Stratton 75475

SCREW, M4-0.7 x 10mm

$

$

Not available

12

Briggs & Stratton 87968

SWITCH, IDLE CONTROL
(Superseded to 87968GS)

$7.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 92724

DECAL - CONTROL PANEL

$1.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 82881

LOCK WASHER, INTERNAL
(Superseded to 82881GS)

$1.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 43181

SCREW, M3-0.5 x 10mm
(Superseded to 43181GS)

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 43182

LOCK WASHER, M3
(Superseded to 43182GS)

$3.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 66822

OUTLET, 12 VOLTS & RETAINING BRACKET
(Superseded to 66822GS)

Note: (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.)

$11.99

$

Usually ships in 2-12 days

0

18

75207A

CIRCUIT BREAKER., 30 AMP

$

$

Not available

19

Briggs & Stratton 75207

CIRCUIT BREAKER, 20 AMP
(Superseded to 209872GS)

$9.99

$

In Stock, Qty 6

0

20

Briggs & Stratton 43437

120/240 VOLTS, 30 AMP TWISTLOCK OUTLET

$

$

Not available

21

Briggs & Stratton 68868

120 VOLTS, 30 AMP TWISTLOCK OUTLET
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 87962

CIRCUIT BREAKER, 12V, 10A
(Superseded to 87962GS)

$29.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 84335

ASSEMBLY, WIRE HARNESS
(Superseded to 84335GS)

$39.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 84028

TRANSFORMER, IDLE CONTROL
(Superseded to 84028GS)

$47.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 64526

SCREW, #6-32 x 3/8"

$

$

Not available

26

Briggs & Stratton 83970

BOARD, SYSTEM CONTROL
(Superseded to 83970GS)

$

$

Not available

27

Briggs & Stratton 64525

STANDOFF, 3/4" HEX

$

$

Currently unavailable

28

Briggs & Stratton 23897

FLAT WASHER, #10 (M5)
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0
