580.327284 (9782-4) - Craftsman 5,500 Watt Portable Generator Control Panel Parts Diagram

5,500 Watt Portable Generator

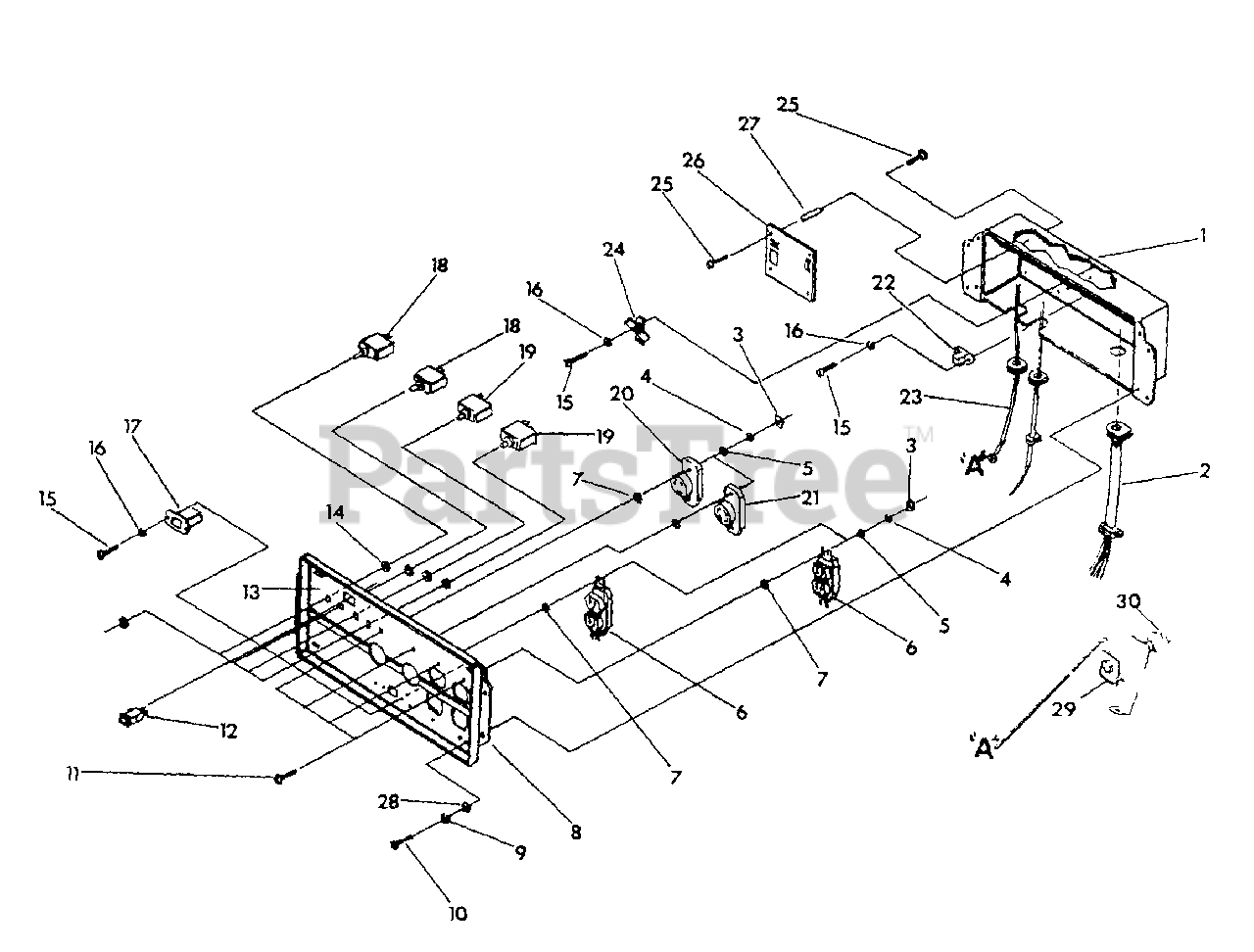

Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 92069

Control Panel Box

$

$

Not available

2

Briggs & Stratton 84134

Connector Grommet
(Superseded to 84134GS)

$5.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 51715

Nut, Hex - M4-0.7
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 22264

Lock Washer, #8

$

$

Not available

5

Briggs & Stratton 43180

Flat Washer, M4
(Superseded to 5043180B)

$54.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 68759

120 Volts, 20 Amp Duplex Outlet
(Superseded to 68759GS)

$24.99

$

In Stock, only 4 left!

0

7

Briggs & Stratton 23365

Washer, Shakeproof #8
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 92569

Control Panel

$

$

Not available

9

Briggs & Stratton 49226

Lock Washer, M5
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 91526

Screw, M5-0.8 x 12mm

$

$

Not available

11

Briggs & Stratton 75475

Screw, M4-0.7 x 10mm

$

$

Not available

12

Briggs & Stratton 82538

Switch, Idle Control
(Superseded to 82538GS)

$6.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 92721

Decal - Control Panel

$38.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 82881

Lock Washer, Internal
(Superseded to 82881GS)

$1.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 43181

Screw, M3-0.5 x 10mm
(Superseded to 43181GS)

$3.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 43182

Lock Washer, M3
(Superseded to 43182GS)

$3.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 66822

Oulet, 12 Volts Retaining Bracket
(Superseded to 66822GS)

Note: (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418

$11.99

$

Usually ships in 2-12 days

0

18

75207A

Circuit Breaker, 30 Amp

$

$

Not available

19

Briggs & Stratton 75207

Circuit Breaker, 20 Amp
(Superseded to 209872GS)

$9.99

$

In Stock, Qty 6

0

20

Briggs & Stratton 43437

120/240 Volts, & Amp Locking Type Outlet

$

$

Not available

21

Briggs & Stratton 68868

120 Volts, 30 Amp Locking Type Oulet
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 87962

Circuit Breaker, 12v, 10a
(Superseded to 87962GS)

$29.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 84335

Assembly, Wire Harness
(Superseded to 84335GS)

$39.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 84028

Transformer, Idle Control
(Superseded to 84028GS)

$47.99

$

In Stock, only 1 left!

0

25

Briggs & Stratton 64526

Screw, 46-32 x 3/8"

$

$

Not available

26

Briggs & Stratton 83970

Board, System Control
(Superseded to 83970GS)

$

$

Not available

27

Briggs & Stratton 64525

Standoff, 3/4" Hex

$

$

Currently unavailable

28

Briggs & Stratton 23897

Flat Washer, #10 (M5)
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 73101

Governor Adjustment Bracket

$

$

Currently unavailable

30

Briggs & Stratton 66311

M8-1.25 Hex JAM Nut

$

$

Currently unavailable
