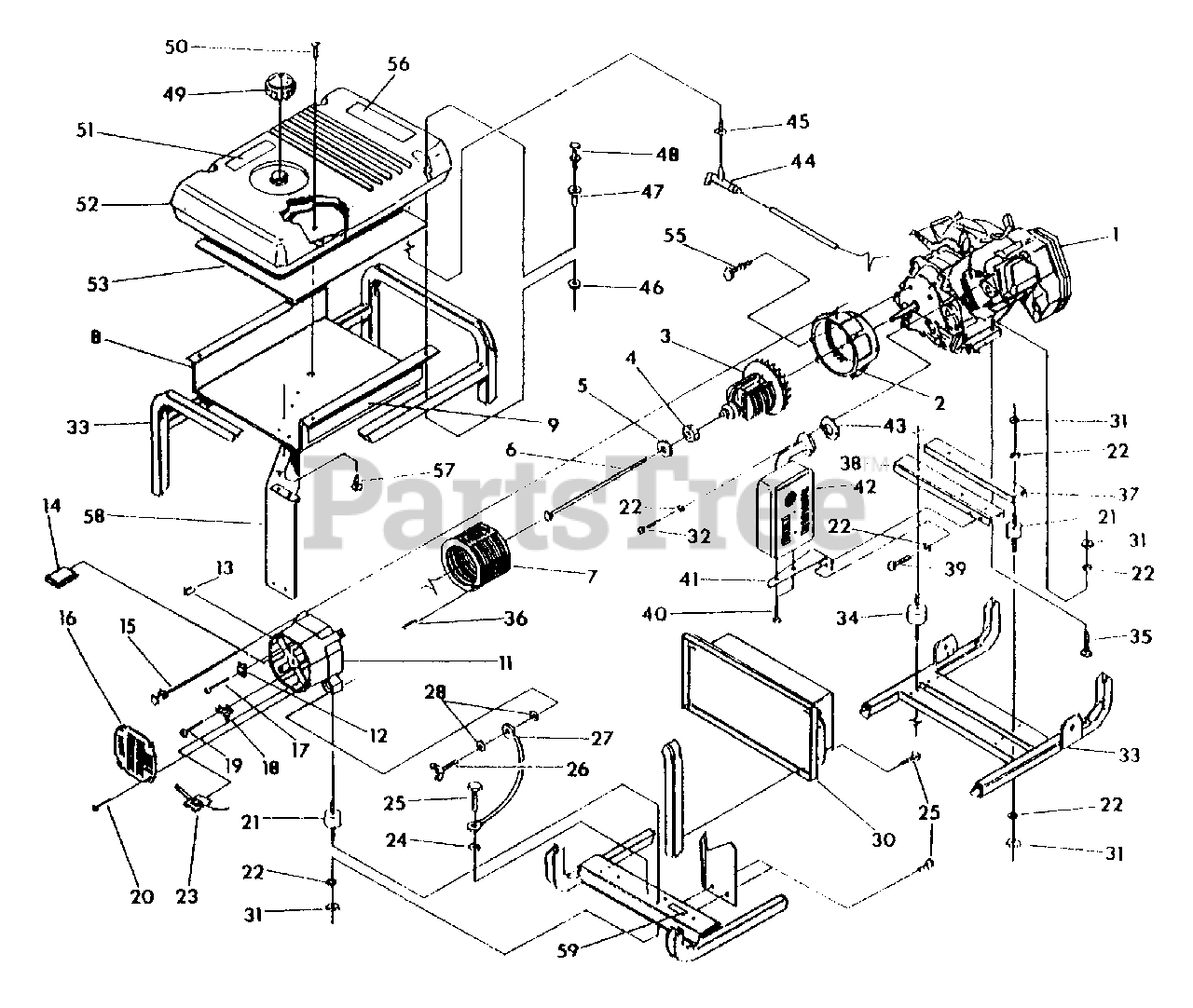

580.327282 (9782-2) - Craftsman 5,500 Watt Portable Generator Housing & Cradle Parts Diagram

5,500 Watt Portable Generator

Housing & Cradle Parts Diagram

  • Title

1

Briggs & Stratton ENG96444

GN-SERIES ENGINE

$

$

Currently unavailable

2

Briggs & Stratton 92247

ENGINE ADAPT. HOUSING
(Superseded to 92247GS)

$122.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 92678G

ROTOR ASSEMBLY
(Superseded to 92678GGS)

$

$

Not available

4

Briggs & Stratton 65791

BEARING
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 67451

FLAT WASHER, MS

$

$

Currently unavailable

6

Briggs & Stratton 28092

CAPSCREW, 5/16-24 x 9-1/4"
(Superseded to 28092GS)

$15.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 92680G

STATOR ASSEMBLY
(Superseded to 92680GGS)

$

$

Not available

8

Briggs & Stratton 92039

HEAT SHIELD

$

$

Currently unavailable

9

Briggs & Stratton 92666

DECAL, HEAT SHIELD
(Superseded to 92666GS)

$12.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 66825C

REAR BEARING CARRIER
(Superseded to SRV66825DGS)

$137.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 65795

BATTERY CHARGE RECTIFIER
(Superseded to 65795GS)

$

$

Not available

13

Briggs & Stratton 67022

RUBBER GROMMET
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 84132

POWER MODULE
(Superseded to 84132GS)

$126.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 86308A

SCREW, M6-1.0 x 145mm
(Superseded to 86308AGS)

$4.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 67025

R. BEARING CARRIER COVER

$

$

Currently unavailable

17

Briggs & Stratton 66849A

SCREW, M5-0.8 x 20mm
(Superseded to 66849AGS)

$4.49

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 66386

BRUSH HOLDER ASSM.
(Superseded to 66386GS)

$23.99

$

In Stock, Qty 20+

0

19

Briggs & Stratton 66849

SCREW, M5-0.8 x 16mm
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 74908

SCREW, M5-0.8 x 10mm
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 82857

VIBRATION MOUNT
(Superseded to 82857GS)

$12.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 22129

LOCK WASHER, M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

23

Briggs & Stratton 57593

CABLE TIE MOUNT
(Superseded to 57593GS)

$5.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 22769

INT. SHAKEPROOF WASHER #10
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 86292

CAPSCREW, #10
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 86494

WING SCREW, M6-1.0 x 16mm
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

27

14353621

GROUND WIRE

$

$

Not available

28

Briggs & Stratton 26850

SHAKEPROOF WASHER, M6

$

$

Not available

30

Briggs & Stratton 92633

CONTROL BOX ASSEMBLY
(Superseded to 92633GS)

$

$

Not available

31

Briggs & Stratton 25244

HEX NUT, 5/16"-18
(Superseded to 25244GS)

$3.49

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 40976

SCREW, M8-1.25 x 20mm

$

$

Not available

33

Briggs & Stratton 92432

CRADLE

$

$

Currently unavailable

34

Briggs & Stratton 92609

VIBRATION MOUNT
(Superseded to 92609GS)

$38.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 22531

CAPSCREW, 5/16-18 x 1'-3/4"
(Superseded to 5022531)

$19.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 81917

ROLL PIN, M4 x 10mm
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 92531

ENGINE SUPPORT

$

$

Currently unavailable

38

Briggs & Stratton 92731

SUPPORT, ENGINE & MUFFLER
(Superseded to N92731GS)

$24.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 22142

CAPSCREW, 5/16-18 x 3/4"
(Superseded to 5022142)

$45.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 66476

CAPSCREW, M6-1.0 x 12mm
(Superseded to 66476GS)

$3.49

$

Usually ships in 2-12 days

0

41

Briggs & Stratton 92532

MUFFLER BRACKET
(Superseded to 92532GS)

$22.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 91153

MUFFLER
(Superseded to A7433GS)

$

$

Not available

43

Briggs & Stratton 90239

MUFFLER GASKET
(Superseded to 90239GS)

$4.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 80270

VALVE, FUEL TANK
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

45

Briggs & Stratton 78299

BUSHING, PLASTIC TANK
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

46

Briggs & Stratton 77395

FLANGE LOCK NUT, M6
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 83465

GROMMET, TANK MOUNTING
(Superseded to 83465GS)

$3.99

$

In Stock, only 4 left!

0

48

Briggs & Stratton 78831B

CAP SCREW, M6-1.0 x 60mm
(Superseded to 78831BGS)

$

$

Not available

49

Briggs & Stratton 94834

FUEL CAP
(Superseded to 691677)

$3.99

$

In Stock, only 4 left!

0

50

Briggs & Stratton 85000

INSULATION CLIP
(Superseded to 85000GS)

$2.99

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 92982

DECAL, - INSTRUCTION/DANGER
(Superseded to 194799GS)

$11.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 93595

FUEL TANK
(Superseded to 193500GS)

$

$

Not available

53

Briggs & Stratton 92665

INSULATION, 2-1/4" thick
(Superseded to 92665GS)

$16.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 86307

CAPSCREW 5/16-24 x 3/4" SEMS
(Superseded to 86307GS)

$2.99

$

In Stock, only 3 left!

0

56

Briggs & Stratton 93826

DECAL, START INSTRUCTIONS
(Superseded to 93826GS)

$14.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 56893

SCREW, #10-24 x 1/2"
(Superseded to 56893GS)

$3.49

$

In Stock, only 1 left!

0

58

Briggs & Stratton 96068

HEAT SHIELD

$

$

Currently unavailable

59

Briggs & Stratton 96409

DECAL, "1-800..."
(Superseded to 96409GS)

$8.99

$

Usually ships in 2-12 days

0
