580.327250 (9514-0) - Craftsman 3,500 Watt Portable Generator Engine Accessory Assembly Parts Diagram

3,500 Watt Portable Generator

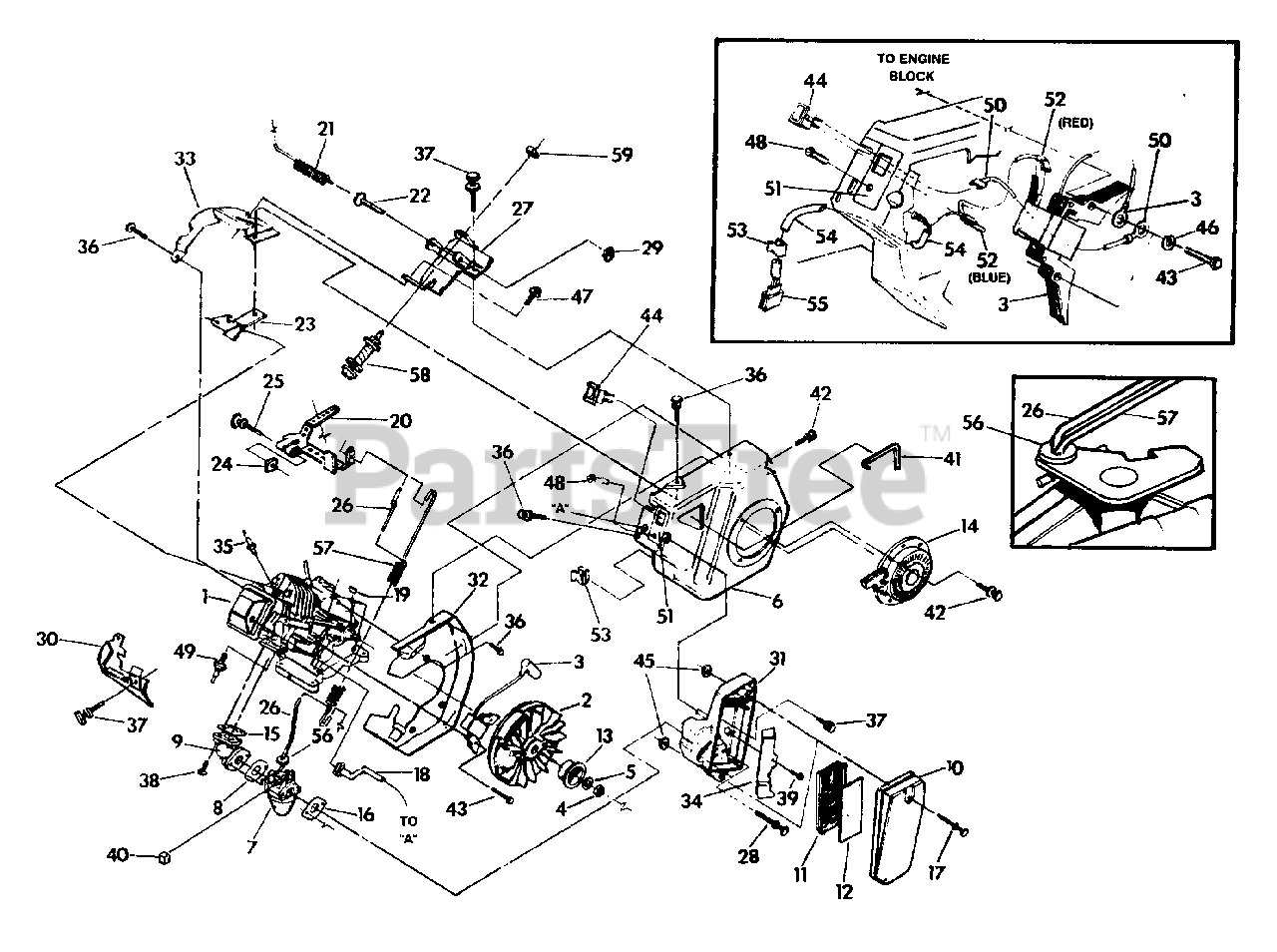

Engine Accessory Assembly Parts Diagram

  • Title

1

Briggs & Stratton 83561

6 HP HS LONG BLOCK

$

$

Currently unavailable

2

Briggs & Stratton 84426A

FLYWHEEL ASSEMBLY

$

$

Currently unavailable

3

Briggs & Stratton 81675

IGNITION COIL ASSEMBLY

$

$

Currently unavailable

4

Briggs & Stratton 81810

M16-1.5 HEX NUT

$

$

Currently unavailable

5

Briggs & Stratton 83312

CONICAL WASHER

$

$

Currently unavailable

6

Briggs & Stratton 85118

COMPLETE BLOWER HOUSING

$

$

Currently unavailable

7

Briggs & Stratton 83666B

CARBURETOR HS ASSEMBLY

$

$

Currently unavailable

8

Briggs & Stratton 78631

CARBURETOR/MANIFOLD GASKET

$

$

Not available

9

Briggs & Stratton 77197

HS INTAKE MANIFOLD

$

$

Currently unavailable

10

Briggs & Stratton 78608

AIR CLEANER COVER

$

$

Currently unavailable

11

Briggs & Stratton 84892

AIR FILTER ELEMENT

$

$

Currently unavailable

12

Briggs & Stratton 78602

AIR FILTER PRE-CLEANER

$

$

Not available

13

Briggs & Stratton 83015

RECOIL CUP

$

$

Not available

14

Briggs & Stratton 81671

RECOIL ASSEMBLY

$

$

Currently unavailable

15

Briggs & Stratton 82776

MANIFOLD/HEAD GASKET

$

$

Currently unavailable

16

Briggs & Stratton 78632

CARBURETOR/AIR CLEANER GASKET

$

$

Currently unavailable

17

Briggs & Stratton 78609

AIR CLEANER COVER BOLT

$

$

Not available

18

Briggs & Stratton 82755

BREATHER HOSE

$

$

Currently unavailable

19

Briggs & Stratton 82774

4 x 19 WOODRUFF KEY

$

$

Not available

20

Briggs & Stratton 83779

GOVERNOR LEVER

$

$

Currently unavailable

21

Briggs & Stratton 78604

GOVERNOR SPRING

$

$

Currently unavailable

22

Briggs & Stratton 83502

GOVERNOR ADJUSTING SCREW

$

$

Not available

23

Briggs & Stratton 83198

AIR DEFLECTOR

$

$

Currently unavailable

24

Briggs & Stratton 80317

M6-1.0 SQUARE NUT

$

$

Currently unavailable

25

Briggs & Stratton 83532

M6-1.0 x 30mm CAPSCREW

$

$

Currently unavailable

26

Briggs & Stratton 77199

GOVERNOR ROD

$

$

Currently unavailable

27

Briggs & Stratton 83781

GOVERNOR ADJUST BRACKET

$

$

Currently unavailable

28

Briggs & Stratton 78643

CARBURETOR MOUNTING BOLT

$

$

Not available

29

Briggs & Stratton 83503

M5-0.8 MOUNTING LOCK NUT

$

$

Currently unavailable

30

Briggs & Stratton 83197

BOTTOM WRAPPER

$

$

Currently unavailable

31

Briggs & Stratton 78607

AIR CLEANER BASE

$

$

Not available

32

Briggs & Stratton 786511

BLOWER HOUSING BACK PLATE

$

$

Currently unavailable

33

Briggs & Stratton 83196

TOP WRAPPER

$

$

Currently unavailable

34

Briggs & Stratton 80303

BREATHER CANAL COVER

$

$

Not available

35

Briggs & Stratton 72347

CHAMPION RC12YC SPARK PLUG
(Superseded to 491055S)

$4.99

$

In Stock, Qty 20+

0

36

Briggs & Stratton 45756

M6-1.0 x 10mm TAPTITE BOLT

$

$

Not available

37

Briggs & Stratton 66746

M6-1.0 x 12mm CAPSCREW WITH LOCK WASHER

$

$

Currently unavailable

38

Briggs & Stratton 80316

M6-1.0 x 30mm CAPSCREW WITH LOCK WASHER

$

$

Currently unavailable

39

Briggs & Stratton 59635

No. 8 x 3/8" PLASTITE SCREW

$

$

Currently unavailable

40

Briggs & Stratton 83504

CHOKE LEVER KNOB

$

$

Not available

41

Briggs & Stratton 84867

AIR CLEANER/BLOWER HOUSING SEAL

$

$

Currently unavailable

42

Briggs & Stratton 81688

M6-1.0 x 10mm CAPSCREW WITH LOCK WASHER

$

$

Currently unavailable

43

Briggs & Stratton 82981

M6-1.0 x 30mm TAPTITE BOLT

$

$

Currently unavailable

44

Briggs & Stratton 78653

SHUT-OFF SWITCH
(Superseded to 78653GS)

$

$

Not available

45

Briggs & Stratton 49813

M6-1.0 HEX NUT
(Superseded to 49813GS)

$2.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 22097

M6 LOCK WASHER
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 83512

M8 x 15mm TAPTITE BOLT
(Superseded to 83512GS)

$6.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 85272

LOW OIL INDICATOR LED

$

$

Currently unavailable

49

Briggs & Stratton 60108

8-12 PSI OIL PRESSURE SWITCH

$

$

Not available

50

Briggs & Stratton 00285271

GROUND WIRE ASSEMBLY

$

$

Currently unavailable

51

Briggs & Stratton 84195

LOS ENGINE DECAL

$

$

Currently unavailable

52

Briggs & Stratton 00185271

IGNITION WIRE ASSEMBLY

$

$

Currently unavailable

53

Briggs & Stratton 84274

CABLE TINNERMAN CLAMP

$

$

Currently unavailable

54

Briggs & Stratton 85620

No. 3, 145mm SLEEVING

$

$

Currently unavailable

55

Briggs & Stratton 84329

3-PIN, MALE HOUSING

$

$

Currently unavailable

56

Briggs & Stratton 85953

CARBURETOR WEAR WASHER

$

$

Currently unavailable

57

Briggs & Stratton 86037

ANTI-LASH EXTENSION SPRING

$

$

Currently unavailable

58

Briggs & Stratton 83782

IDLE CONTROL COIL

$

$

Currently unavailable

59

Briggs & Stratton 66311

M8-1.25 JAM HEX NUT

$

$

Currently unavailable
