580.327203 (1191-2) - Craftsman 10,000 Watt Portable Generator Main Unit Parts Diagram

10,000 Watt Portable Generator

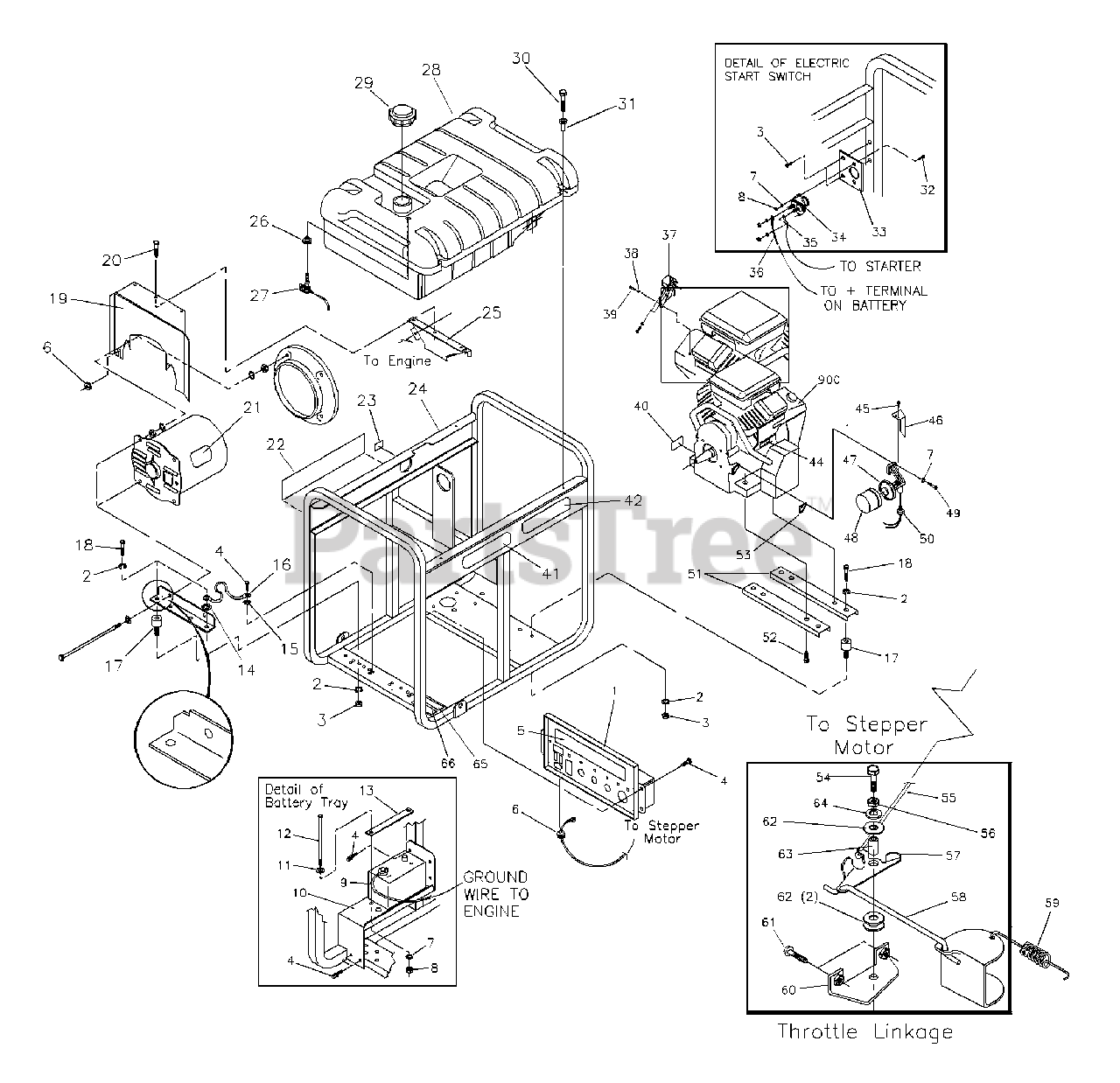

Main Unit Parts Diagram

  • Title

1

Briggs & Stratton B4653

ASSEMBLY, Control Panel
(Superseded to B4653GS)

$

$

Not available

2

Briggs & Stratton 22237

LOCK WASHER, 3/8"

$

$

Not available

3

Briggs & Stratton 22241

NUT, 3/8-16 Hex

$

$

Not available

4

Briggs & Stratton 86292

SELF DRILLER, 10-16 x 3/4"
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

5

Briggs & Stratton B2758

DECAL, Control Panel
(Superseded to B2758GS)

$19.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 62265

GROMMET, Rubber
(Superseded to 62265GS)

$8.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 22097

LOCK WASHER, 1/4"
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 22127

NUT, 1/4"-20 Hex

$

$

Not available

9

Briggs & Stratton 18453621

WIRE ASSEMBLY, Ground
(Superseded to 18453621GS)

$34.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton B84650

TRAY, Battery
(Superseded to B84650GS)

$46.99

$

Usually ships in 2-12 days

0

11

22473

FLAT WASHER, 1/4"

$

$

Not available

12

Briggs & Stratton 45000

HHMS, 1/4-20" NC x 7"
(Superseded to 45000GS)

$11.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton B44951

BRACKET, Hold-Down
(Superseded to B44951GS)

$10.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 22261

SHAKEPROOF, 3/8" Internal
(Superseded to 22261GS)

$3.49

$

In Stock, only 2 left!

0

15

Briggs & Stratton 23762

WASHER, #10 Shakeproof
(Superseded to 23762GS)

$2.99

$

Usually ships in 2-12 days

0

16

18553621

ASSEMBLY, Ground Wire

$

$

Not available

17

Briggs & Stratton 38353

MOUNTS, Vibration
(Superseded to 38353GS)

$39.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 23152

HHCS, 3/8-16 x 3/4"
(Superseded to 5101614)

$450.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton B90916

HEAT SHIELD, Stator
(Superseded to B90916GS)

$198.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 56892

CRIMPTITE, 10-24 x 3/8"
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

21

NSP

DECAL, Data Plate

$

$

Not available

22

Briggs & Stratton B2757

DECAL, Side Panel
(Superseded to B2757GS)

$16.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 73054

DECAL, Fuel Shut Off

$

$

Not available

24

Briggs & Stratton BB4137

CRADLE

$

$

Not available

25

Briggs & Stratton B93074

SHIELD, Heat
(Superseded to B93074GS)

$136.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 78299

BUSHING, Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

27

Briggs & Stratton 80270

VALVE, Plastic Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

28

Briggs & Stratton B1696

TANK, Fuel

$

$

Currently unavailable

29

Briggs & Stratton B4325

CAP, Fuel Gauge
(Superseded to B4325GS)

$93.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 78831B

HHCS, M6-1.0 x 60mm
(Superseded to 78831BGS)

$

$

Not available

31

Briggs & Stratton 83465

GROMMET, Tank Mounting
(Superseded to 83465GS)

$3.99

$

In Stock, only 4 left!

0

32

Briggs & Stratton 22287

HHCS, 1/4"-20 x 3/4"
(Superseded to 22287GS)

$3.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 78289

BRACKET, Starter Switch
(Superseded to 78289GS)

$7.49

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 77282

SWITCH, Starter

$

$

Not available

35

Briggs & Stratton 18253621

WIRE ASSEMBLY, Starter
(Superseded to 18253621GS)

$28.99

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 18353621

WIRE ASSEMBLY, Battery
(Superseded to 18353621GS)

$29.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 96867

ASSEMBLY, Stepper Motor
(Superseded to 96867GS)

$261.99

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 22129

LOCK WASHER, 5/16 -M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

39

Briggs & Stratton 39253

HHCS, M8-1.25 x 20
(Superseded to 39253GS)

$3.49

$

In Stock, Qty 6

0

40

Briggs & Stratton 79661P

DECAL, Engine

$

$

Currently unavailable

41

Briggs & Stratton 92982

DECAL, Danger
(Superseded to 194799GS)

$11.99

$

Usually ships in 2-12 days

0

42

Briggs & Stratton 93826

DECAL, Start Instruction
(Superseded to 93826GS)

$14.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 77816

DECAL, Caution Hot Muffler
(Superseded to 77816GS)

$4.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 46852

TAPTITE, #10-32 x 1/4"

$

$

Not available

46

Briggs & Stratton 93841

SHIELD, Oil Sensor Heat

$

$

Not available

47

Briggs & Stratton 90914

ADAPTER, Oil Filter

$

$

Not available

48

Briggs & Stratton 70185

FILTER, Oil
(Superseded to 70185GS)

$

$

Not available

49

Briggs & Stratton 40945

SHCS, M6-1.0 x 20
(Superseded to 40945GS)

$3.49

$

In Stock, only 1 left!

0

50

Briggs & Stratton 60108

SWITCH, Low Oil Pressure

$

$

Not available

51

Briggs & Stratton B77304

SUPPORT, Engine
(Superseded to B77304GS)

$27.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 75246

TAPTITE, 3/8-16 x 1-1/4"
(Superseded to 75246GS)

$3.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 68548

GASKET, Oil Filter Adapter

$

$

Not available

54

Briggs & Stratton 33141

HHCS, #10-32 x 3/4"
(Superseded to 33141GS)

$3.49

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 95921

LINKAGE, Bell Crank to Throttle
(Superseded to 95921GS)

$12.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 49226

LOCK WASHER, M5
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 95348

BELL, Crank
(Superseded to 95348GS)

$7.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 95920

LINKAGE, Stepper Motor to Bell Crank
(Superseded to 95920GS)

$16.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton 96717

SPRING, Step Motor Control
(Superseded to 96717GS)

$

$

Not available

60

Briggs & Stratton 95349

PLATE, Idle Control Adjust
(Superseded to 95349GS)

$7.49

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 75477

PPHMS, M5-0.8 x 20
(Superseded to 75477GS)

$3.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 96716

WASHER, Nylon
(Superseded to 96716GS)

$2.99

$

Usually ships in 2-12 days

0

63

Briggs & Stratton 96378

SPACER, Step Motor Link
(Superseded to 96378GS)

$7.49

$

Usually ships in 2-12 days

0

64

Briggs & Stratton 51713

FLAT WASHER, M5
(Superseded to 51713GS)

$2.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton B4901

DECAL, 1-800-4-My Home

$

$

Currently unavailable

66

Briggs & Stratton 20566

DECAL, 1-800
(Superseded to 20566GS)

$1.99

$

Usually ships in 2-12 days

0

900

NSP

Engine, 19HP, Briggs & Stratton, 350445-1162-E1

$

$

Not available

Briggs & Stratton B4659

Owners manual
(Superseded to B4659GS)

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 65787

Battery charge cable

Note: Not Illustrated

$3.99

$

Usually ships in 2-12 days

0

Briggs & Stratton AB3061

Oil, 28oz. SAE 30
(Superseded to BB3061GS)

Note: Not Illustrated

$13.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 37806

120 Volt, 30 Amp locking plug
(Superseded to 100523GS)

Note: Not Illustrated

$20.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 43438

240 Volt, 30 Amp locking plug
(Superseded to 43438GS)

Note: Not Illustrated

$26.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 93568

120 Volt, 20 Amp locking plug

Note: Not Illustrated

$32.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 66386

ASSY, HLDR, Brush
(Superseded to 66386GS)

Note: Not Illustrated

$23.99

$

In Stock, Qty 20+

0

Briggs & Stratton 0932688

Cord Wrap Kit

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable
