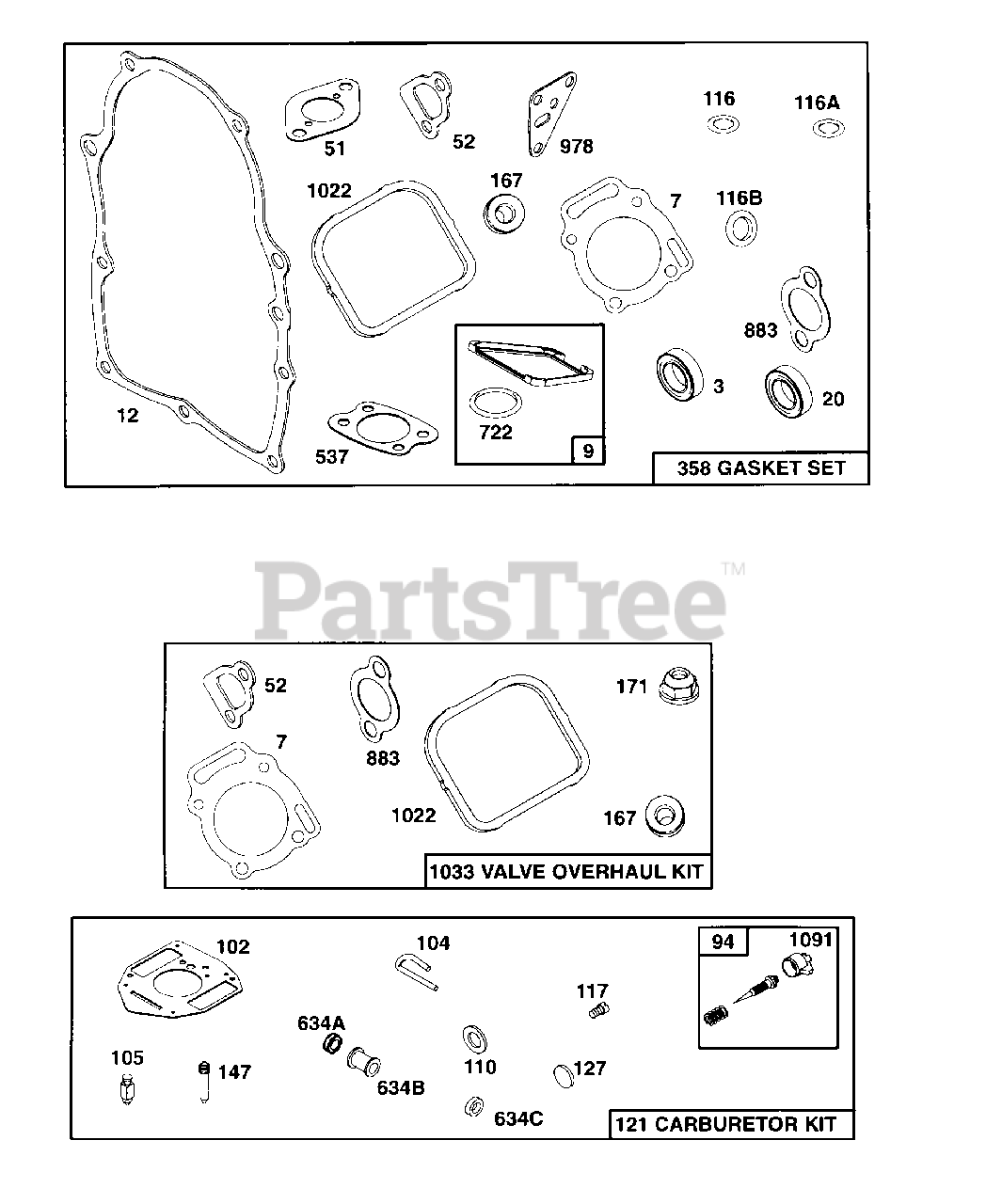

580.327203 (1191-2) - Craftsman 10,000 Watt Portable Generator Engine - 19HP Briggs & Stratton (Part 1) Parts Diagram

10,000 Watt Portable Generator

Engine - 19HP Briggs & Stratton (Part 1) Parts Diagram

  • Title

3

Briggs & Stratton 67805

Seal, Oil

Note: Included in Gasket Set (139-92134)

$

$

Currently unavailable

7

Briggs & Stratton 10392134

Gasket, Cylinder Head

Note: Included in Gasket Set (139-92134) & in Valve Overhaul Kit (101-93571)

$

$

Currently unavailable

9

Briggs & Stratton 72315

Gasket, Breather

Note: (Incl. #722; & Included in Gasket Set (139-92134)

$

$

Currently unavailable

12

Briggs & Stratton 69336

Gasket, Crankcase

Note: Included in Gasket Set (139-92134)

$

$

Not available

20

Briggs & Stratton 67924

Seal, Oil

Note: Included in Gasket Set (139-92134)

$

$

Currently unavailable

51

Briggs & Stratton 12785110

Gasket, Intake

Note: Included in Gasket Set (139-92134)

$

$

Currently unavailable

52

Briggs & Stratton 67895

Gasket
(Superseded to 692035)

Note: Included in Gasket Set (139-92134) & in Valve Overhaul Kit (101-93571)

$3.49

$

In Stock, Qty 15

0

94

Briggs & Stratton 11992134

Valve, Idle Adjustment

Note: Included in Carburetor Kit (123-92134)

$

$

Currently unavailable

102

Briggs & Stratton 14085110

Gasket, Carburetor Body

Note: Included in Carburetor Kit (123-92134)

$

$

Currently unavailable

104

Briggs & Stratton 14185110

Pin, Float Hinge

Note: Included in Carburetor Kit (123-92134)

$

$

Currently unavailable

105

Briggs & Stratton 14285110

Valve, Needle

Note: Included in Carburetor Kit (123-92134)

$

$

Currently unavailable

110

Briggs & Stratton 12192134

Washer

Note: Included in Carburetor Kit (123-92134)

$

$

Currently unavailable

116

Briggs & Stratton 70506

Seal, O-Ring

Note: Included in Gasket Set (139-92134)

$

$

Currently unavailable

116A

Briggs & Stratton 68573

Seal, O-Ring

Note: Included in Gasket Set (139-92134)

$

$

Currently unavailable

116B

Briggs & Stratton 70541

Seal, O-Ring

Note: Included in Gasket Set (139-92134)

$

$

Currently unavailable

117

Briggs & Stratton 12292134

Jet, Main

Note: Included in Carburetor Kit (123-92134)

$

$

Currently unavailable

121

Briggs & Stratton 12392134

Carburetor Kit

$

$

Currently unavailable

127

Briggs & Stratton 14785110

Plug, Welch

Note: Included in Carburetor Kit (123-92134)

$

$

Currently unavailable

147

Briggs & Stratton 12992134

Jet, Slow Speed

$

$

Currently unavailable

167

Briggs & Stratton 75253

Washer

Note: Included in Gasket Set (139-92134) & in Valve Overhaul Kit (101-93571)

$

$

Currently unavailable

171

Briggs & Stratton 67885

Nut, Lock M6
(Superseded to 67885GS)

Note: Included in Valve Overhaul Kit (101-93571)

$6.99

$

In Stock, only 1 left!

0

358

Briggs & Stratton 13992134

Gasket, Set

$

$

Currently unavailable

537

Briggs & Stratton 18985110

Gasket, Air Cleaner

Note: Included in Gasket Set (139-92134)

$

$

Currently unavailable

634A

Briggs & Stratton 21685110

Collar, Throttle

Note: Included in Carburetor Kit (123-92134)

$

$

Currently unavailable

634B

Briggs & Stratton 19785110

Collar, Choke

Note: Included in Carburetor Kit (123-92134)

$

$

Currently unavailable

634C

Briggs & Stratton 14592134

Seal,Shaft

Note: Included in Carburetor Kit (123-92134)

$

$

Currently unavailable

722

ONLY O-Ring

Note: Sold w/#9

$

$

Not available

883

Briggs & Stratton 67897

Gasket, Exhaust
(Superseded to 691613)

Note: Included in Gasket Set (139-92134) & in Valve Overhaul Kit (101-93571)

$5.49

$

Usually ships in 2-12 days

0

978

Briggs & Stratton 68548

Gasket, Oil Filter

$

$

Not available

1022

Briggs & Stratton 22085110

Gasket, rocker Cover

Note: Included in Gasket Set (139-92134) & in Valve Overhaul Kit (101-93571)

$

$

Currently unavailable

1033

Briggs & Stratton 10193571

Kit, Valve Overhaul

$

$

Currently unavailable

1091

Briggs & Stratton 22985110

Cap, Limiter

Note: Included in Carburetor Kit (123-92134)

$

$

Currently unavailable

Briggs & Stratton 13992134

Gasket Set

$

$

Currently unavailable

Briggs & Stratton 10193571

Valve Overhaul Kit

$

$

Currently unavailable

Briggs & Stratton 12392134

Carburetor Kit

$

$

Currently unavailable
