580.327201 (1191-0) - Craftsman 10,000 Watt Portable Generator Rewind Starter Parts Diagram

10,000 Watt Portable Generator

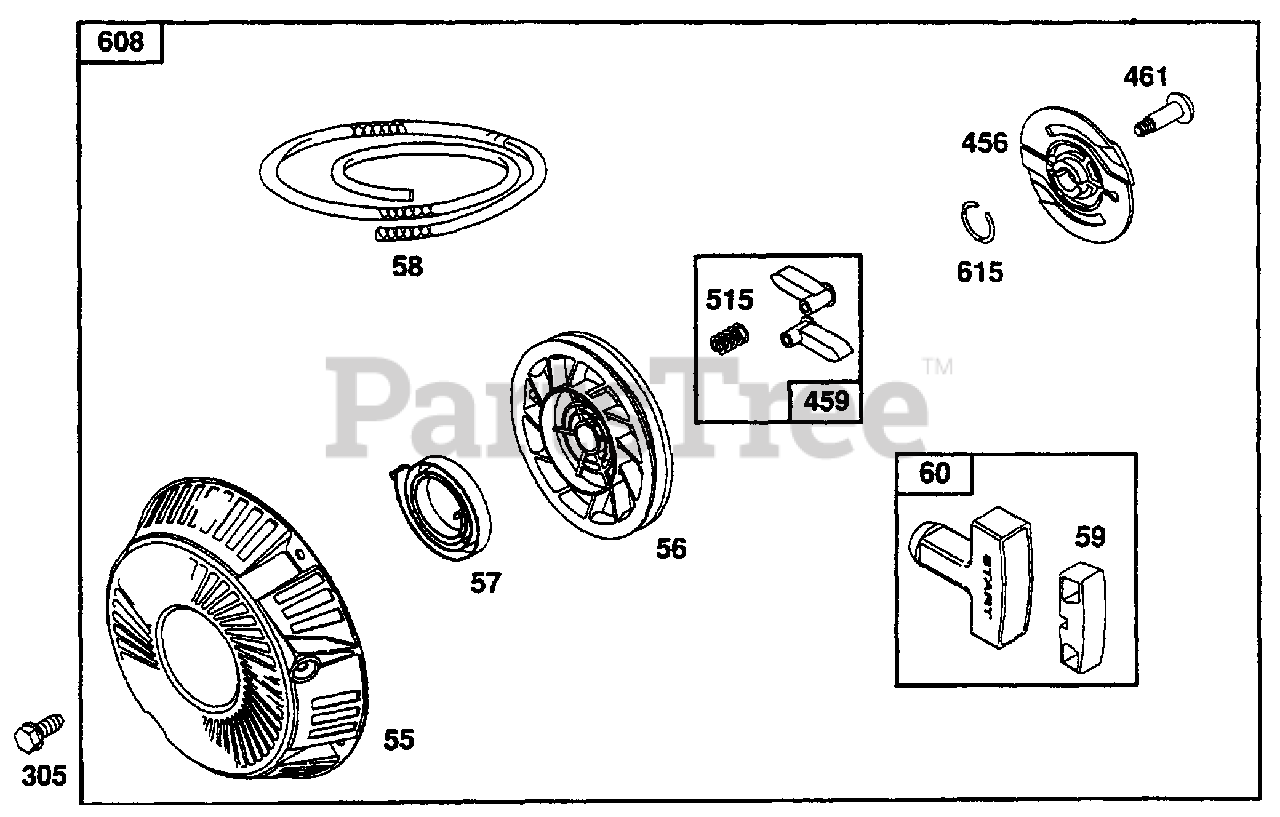

Rewind Starter Parts Diagram

  • Title

55

Briggs & Stratton 808186

Housing-Rewind Starter
(Superseded to 691568)

$103.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 805949

Pulley-Starter
(Superseded to 692085)

$59.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 805951

Spring-Rewind Starter
(Superseded to 692086)

$15.99

$

In Stock, only 1 left!

0

58

Briggs & Stratton 805958

Rope-Starter

Note: (Cut to Length)

$

$

Currently unavailable

59

Briggs & Stratton 805957

Insert-Grip

$8.49

$

In Stock, only 4 left!

0

60

Briggs & Stratton 808167

Grip-Starter Rope

$14.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 805406

Screw-Sem
(Superseded to 841233)

$3.49

$

In Stock, Qty 20+

0

456

Briggs & Stratton 805954

Retainer-Spring
(Superseded to 691529)

$17.99

$

Usually ships in 2-12 days

0

459

Briggs & Stratton 808166

Pawl-Ratchet

$20.99

$

Usually ships in 2-12 days

0

461

Briggs & Stratton 805955

Screw-Retainer
(Superseded to 690876)

$6.49

$

Usually ships in 2-12 days

0

515

Briggs & Stratton 805953

Spring-Dog
(Superseded to 691528)

$6.99

$

In Stock, only 1 left!

0

608

Briggs & Stratton 808087

Starter-Rewind
(Superseded to 692102)

$142.99

$

In Stock, only 2 left!

0

615

Briggs & Stratton 805952

Ring-Retaining
(Superseded to 690875)

$4.99

$

Usually ships in 2-12 days

0
