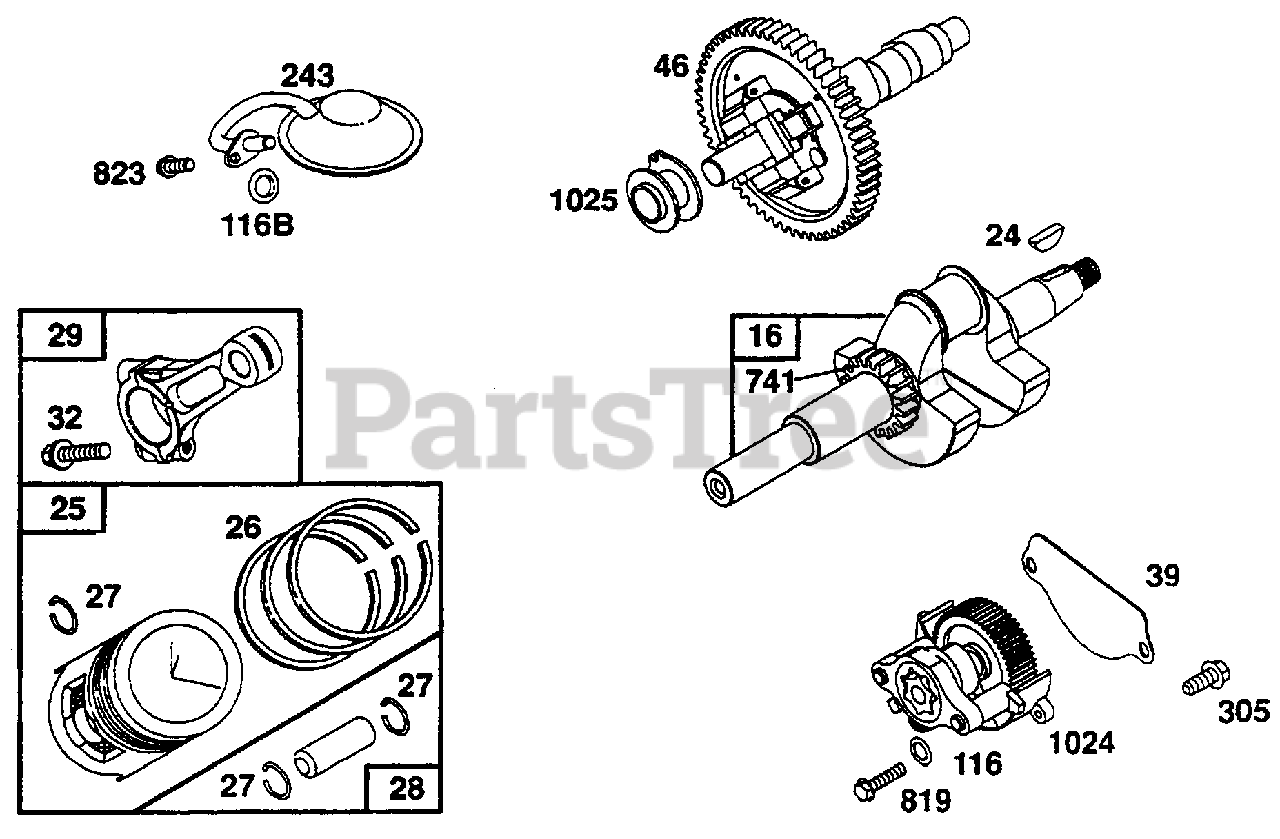

580.327201 (1191-0) - Craftsman 10,000 Watt Portable Generator Crankshaft & Piston Assembly Parts Diagram

10,000 Watt Portable Generator

Crankshaft & Piston Assembly Parts Diagram

  • Title

16

Briggs & Stratton 807778

Crankshaft

$284.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 807625

Thrust Washers

$19.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 94196

Crankshaft Timing Gear Key
(Superseded to 691639)

$4.49

$

In Stock, Qty 5

0

16

Briggs & Stratton 807780

Crankshaft

Note: Used on Type No(s). 0042, 0115, 1042, 1115.

$284.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 805016

Key-Flywheel
(Superseded to 808095)

$13.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 807888

Piston Assy. (Std.)
(Superseded to 844540)

$149.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 807991

Piston Assy. (.010" Oversize)

$

$

Not available

25

Briggs & Stratton 807992

Piston Assy. (.020" Oversize)
(Superseded to 843821)

$133.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 807993

Piston Assy. (.030" Oversize)

$

$

Not available

26

Briggs & Stratton 807889

Ring Set (Std.)
(Superseded to 843793)

$52.99

$

In Stock, Qty 19

0

26

Briggs & Stratton 807994

Ring Set (.010" Oversize)

$40.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 807995

Ring Set (.020" Oversize)
(Superseded to 843822)

$53.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 807996

Ring Set (.030" Oversize)

$35.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 805099

Lock-Piston Pin
(Superseded to 690683)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 807886

Pin-Piston (Standard)

$16.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 807900

Rod-Connecting (Standard)
(Superseded to 807900S)

$

$

Not available

29

Briggs & Stratton 807803

Rod-Conn. (.020" Undersize)

$65.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 805395

Screw-Conn. Rod
(Superseded to 690698)

$7.49

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 805654

Cover-Gear
(Superseded to 690745)

$6.49

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 808200

Gear-Cam
(Superseded to 690927)

$184.99

$

Usually ships in 2-12 days

0

116

Briggs & Stratton 805058

O-Ring
(Superseded to 690681)

Note: Included in Gasket Set-Part No. 808248

$5.99

$

In Stock, only 2 left!

0

116B

Briggs & Stratton 805316

O-Ring
(Superseded to 690690)

Note: Included in Gasket Set-Part No. 808248

$5.99

$

Usually ships in 2-12 days

0

243

Briggs & Stratton 807598

Screen-Oil Pump
(Superseded to 690900)

$29.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 805406

Screw-Sem
(Superseded to 841233)

$3.49

$

In Stock, Qty 20+

0

741

Briggs & Stratton 805675

Gear - Timing
(Superseded to 846085)

$19.99

$

Usually ships in 2-12 days

0

819

Briggs & Stratton 805057

Screw-Sem
(Superseded to 691492)

$3.99

$

In Stock, only 2 left!

0

823

Briggs & Stratton 805317

Screw-Sem
(Superseded to 807084)

$3.49

$

In Stock, only 3 left!

0

1024

Briggs & Stratton 807644

Pump-Oil

$

$

Not available

1025

Briggs & Stratton 805313

Slider - Governor
(Superseded to 690689)

$22.99

$

In Stock, only 2 left!

0

Briggs & Stratton 808248

Gasket Set
(Superseded to 847319)

$123.99

$

In Stock, only 2 left!

0
