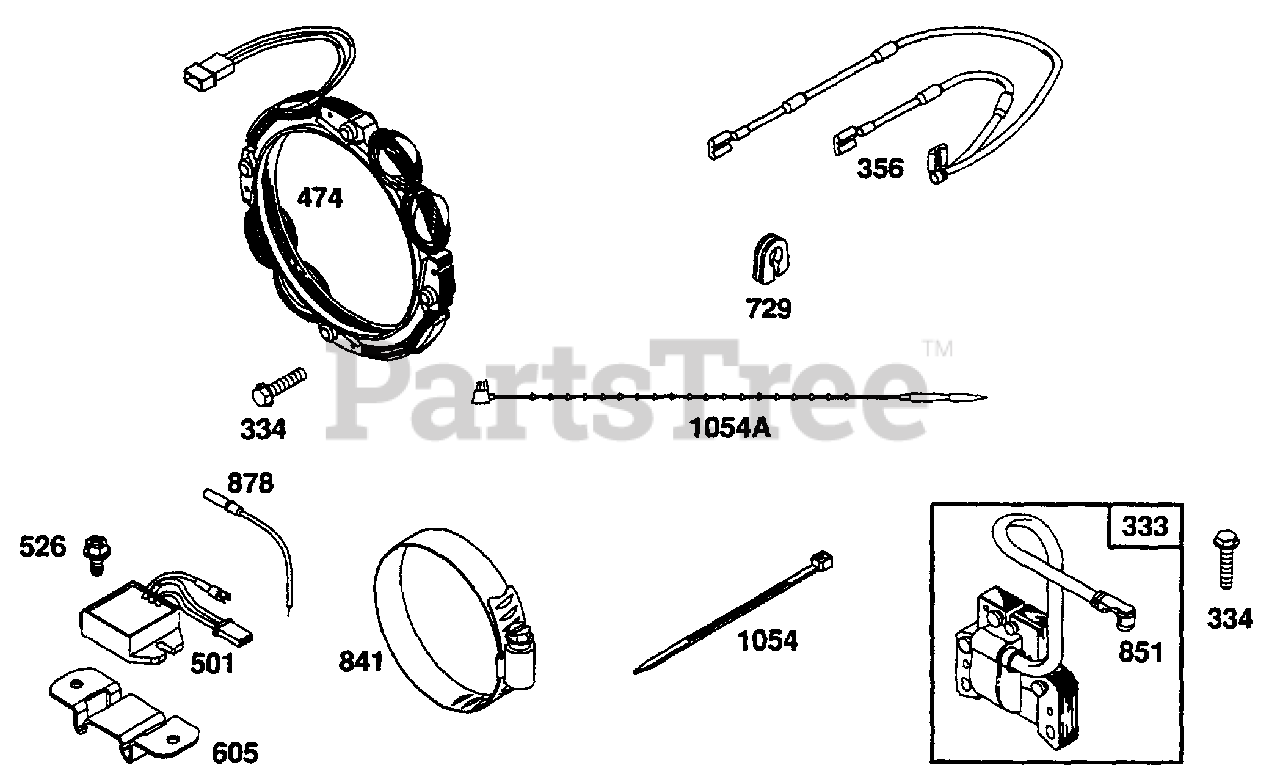

580.327201 (1191-0) - Craftsman 10,000 Watt Portable Generator Alternator Parts Diagram

10,000 Watt Portable Generator

Alternator Parts Diagram

  • Title

333

Briggs & Stratton 492341

Armature-Magneto
(Superseded to 591459)

$53.99

$

In Stock, Qty 20+

0

334

Briggs & Stratton 805407

Screw-Mounting
(Superseded to 692066)

$3.49

$

In Stock, Qty 7

0

356

Briggs & Stratton 493792

Wire-Stop
(Superseded to 692319)

$17.99

$

In Stock, Qty 20+

0

474

Briggs & Stratton 393295

Alternator
(Superseded to 592830)

$101.99

$

In Stock, Qty 20+

0

501

Briggs & Stratton 394890

Regulator
(Superseded to 845907)

$61.99

$

In Stock, Qty 20+

0

526

Briggs & Stratton 805448

Screw-Sem
(Superseded to 692067)

$3.99

$

In Stock, Qty 9

0

605

Briggs & Stratton 222934

Bracket-Support
(Superseded to 691177)

$

$

Not available

729

Briggs & Stratton 805641

Grommet
(Superseded to 690744)

$7.49

$

Usually ships in 2-12 days

0

841

Briggs & Stratton 393514

Clamp-Regulator
(Superseded to 690635)

$24.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 221798

Terminal-Cable
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

878

Briggs & Stratton 393422

Harness-Alternator
(Superseded to 692306)

$17.99

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1054A

Briggs & Stratton 270723

Tie-Cable
(Superseded to 280275)

$4.49

$

Usually ships in 2-12 days

0
