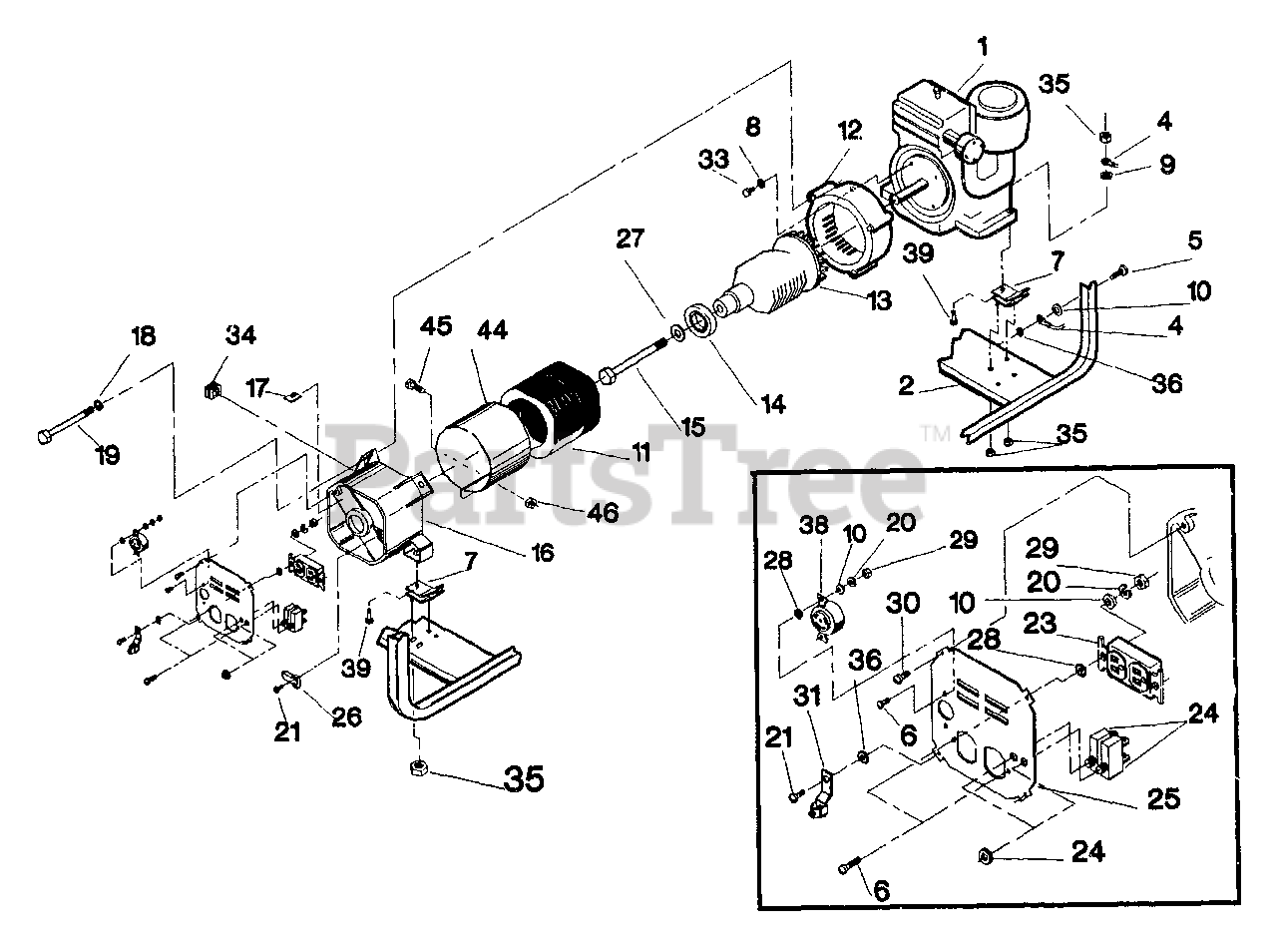

580.327161 (9450-1) - Craftsman 5,000 Watt Portable Generator Generator & Control Panel Parts Diagram

5,000 Watt Portable Generator

Generator & Control Panel Parts Diagram

  • Title

1

Briggs & Stratton 83953

10 HP TECUMSEH ENGINE

$

$

Currently unavailable

2

Briggs & Stratton 75987

CRADLE ASSEMBLY

$

$

Currently unavailable

4

Briggs & Stratton 10953621

GROUND WIRE

$

$

Currently unavailable

5

Briggs & Stratton 24911

SCREW, TAPTITE - No. 8 x 3/8"
(Superseded to 24911GS)

$3.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 75475

SCREW, PAN HEAD MACHINE - M4-0.7 x 10mm

$

$

Not available

7

Briggs & Stratton 70642

MOUNT, VIBRATION
(Superseded to 70642GS)

$31.99

$

In Stock, only 2 left!

0

8

Briggs & Stratton 22129

LOCK WASHER, M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

9

Briggs & Stratton 27482

WASHER, SHAKE-PROOF -- 5/16"
(Superseded to 27482GS)

$3.49

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 38150

WASHER, FLAT -- No. 8
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 84925

STATOR ASSEMBLY
(Superseded to 93585JGS)

$

$

Not available

12

Briggs & Stratton 66365D

HOUSING, ENGINE ADAPTOR
(Superseded to 66365DGS)

$70.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 74716

ROTOR ASSEMBLY

$

$

Not available

14

Briggs & Stratton 65791

BEARING, BALL
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 75431

BOLT, ROTOR -- 5/16"-24 X 7-7/8"
(Superseded to 75431GS)

$4.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 66825

CARRIER, REAR BEARING

$

$

Currently unavailable

17

Briggs & Stratton 66850

BOARD, CIRCUIT BRIDGE RECTIFIER
(Superseded to 66850GS)

$70.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 22097

LOCK WASHER - M6
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 66449D

BOLT, STATOR -- M6-1.0 x 115mm

$

$

Currently unavailable

20

Briggs & Stratton 22264

LOCK WASHER -- No. 8

$

$

Not available

21

Briggs & Stratton 66849

SCREW, TAPTITE -- M5-0.8 X 15mm
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 68759

RECEPTACLE -- 120 VOLTS AC, 20 AMP
(Superseded to 68759GS)

$24.99

$

In Stock, only 4 left!

0

24

Briggs & Stratton 77247

BREAKER, CIRCUIT -- 20 AMP
(Superseded to 77247GS)

$10.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 83859

CONTROL PANEL, SHEET METAL

$

$

Currently unavailable

26

Briggs & Stratton 66386

HOLDER ASSEMBLY, BRUSH
(Superseded to 66386GS)

Note: Contact Generac for quantity required

$23.99

$

In Stock, Qty 20+

0

27

Briggs & Stratton 67451

FLAT WASHER -- SPECIAL

$

$

Currently unavailable

28

Briggs & Stratton 23365

LOCK WASHER, SERRATED -- No. 8
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 51715

NUT, HEX -- M4-0.7
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 74908

SCREW, TAPTITE -- M5-0.8 x 10mm
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 25433

LUG, GROUNDING

$

$

Not available

33

Briggs & Stratton 22336

SCREW, HEX HEAD -- 5/16"-24 x 3/4"

$

$

Not available

34

Briggs & Stratton 67022

GROMMET, BEARING CARRIER
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 52858

M8-1.25 HEX NUT
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

36

Briggs & Stratton 22769

WASHER, SHAKE-PROOF -- No. 10
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

38

Briggs & Stratton 68867

120/240 VOLTS, 20 AMP OUTLET
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 76222

SCREW, PAN HEAD -- M8 x 40mm
(Superseded to 76222GS)

$4.99

$

Usually ships in 2-12 days

0

44

Briggs & Stratton 81887C

ALTERNATOR WRAP

$

$

Not available

45

Briggs & Stratton 52618

SCREW, HEX HEAD -- M5-0.8 x 12mm
(Superseded to 52618GS)

$2.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 52856

NUT, LOCKING -- M5-0.8
(Superseded to 52856GS)

$3.49

$

Usually ships in 2-12 days

0
