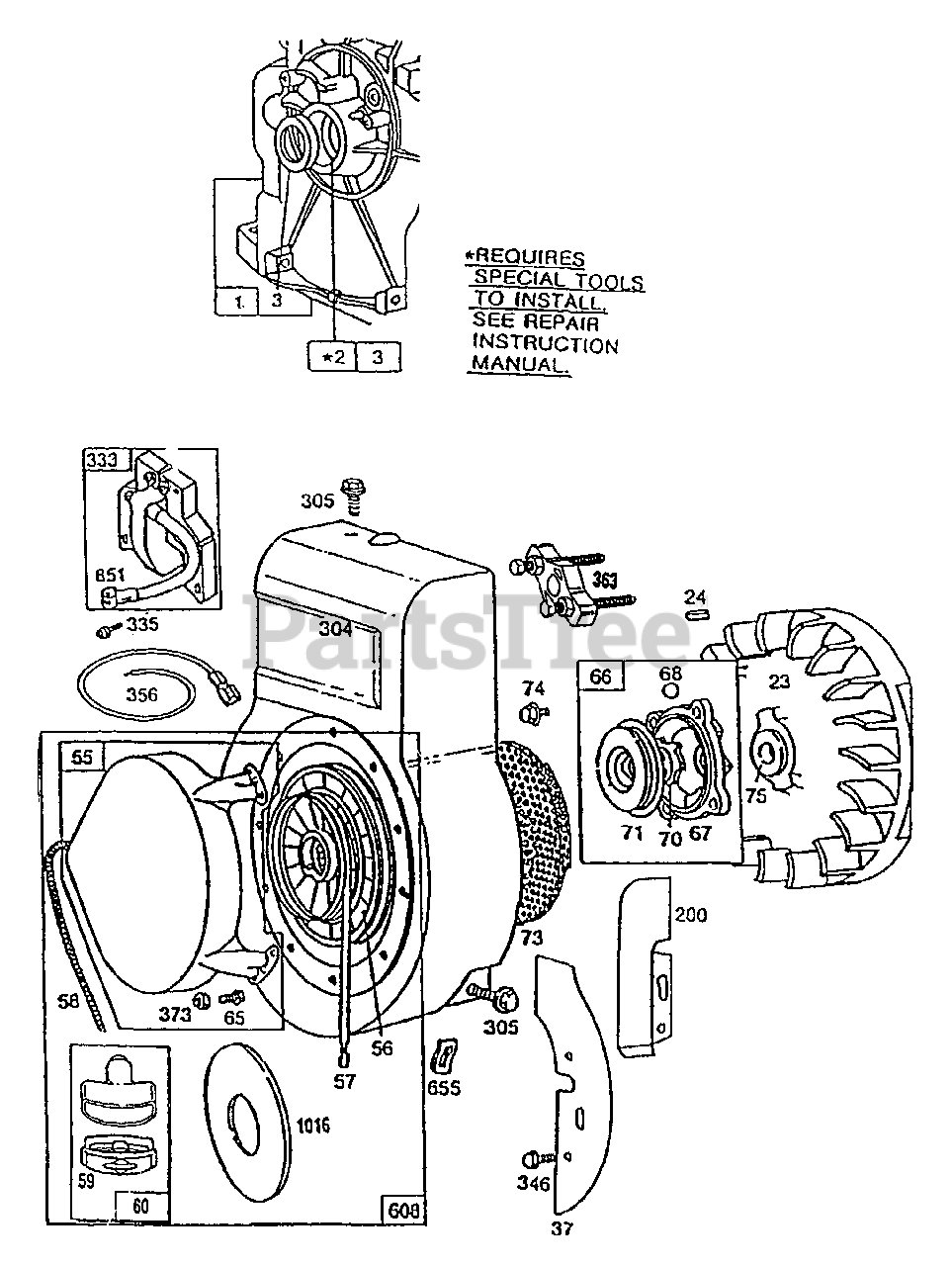

580.327150 (9296-0) - Craftsman 2,400 Watt Portable Generator Ignition & Starter Parts Diagram

2,400 Watt Portable Generator

Ignition & Starter Parts Diagram

  • Title

1

Briggs & Stratton 395646

Cylinder Assembly

Note: Contact Generac for quantity required

$

$

Currently unavailable

2

Briggs & Stratton 297565

Cylinder Bushing

Note: Contact Generac for quantity required

$20.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 299819

Oil Seal
(Superseded to 299819S)

Note: Contact Generac for quantity required

$5.49

$

In Stock, Qty 20+

0

23

Briggs & Stratton 297229

Magneto Flywheel

Note: Contact Generac for quantity required

$

$

Not available

24

Briggs & Stratton 222698

Flywheel Key
(Superseded to 222698S)

Note: Contact Generac for quantity required

$2.99

$

In Stock, Qty 20+

0

37

Briggs & Stratton 222443

Flywheel Guard
(Superseded to 691732)

Note: Contact Generac for quantity required

$9.99

$

Usually ships in 2-12 days

0

55

Briggs & Stratton 299431

Rewind Starting Housing

Note: Contact Generac for quantity required

$

$

Not available

56

Briggs & Stratton 295871

Rewind Starter Pulley

Note: Includes 63" rope. If longer rope is needed, order rope No. 66984 and cut to length; Contact Generac for quantity required

$14.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 490179

Rewind Starter Spring

Note: Contact Generac for quantity required

$

$

Not available

58

Briggs & Stratton 66884

Rewind Starter Rope -- 63" long
(Superseded to 692188)

Note: If longer rope is needed, order rope No. 66984 and cut to length; Contact Generac for quantity required

$8.49

$

In Stock, only 1 left!

0

59

Briggs & Stratton 230228

Starter Grip Pin
(Superseded to 230228S)

Note: Contact Generac for quantity required

$3.99

$

In Stock, only 4 left!

0

60

Briggs & Stratton 68728

Starter Grip

Note: Contact Generac for quantity required

$

$

Currently unavailable

65

Briggs & Stratton 94128

Housing Mounting Screw
(Superseded to 690837)

Note: Contact Generac for quantity required

$3.49

$

In Stock, Qty 20+

0

66

Briggs & Stratton 399671

Clutch Assembly

Note: Contact Generac for quantity required

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 394897

Starter Clutch Housing

Note: Contact Generac for quantity required

$36.99

$

In Stock, only 2 left!

0

68

Briggs & Stratton 63770

Clutch Ball
(Superseded to 691604)

Note: Contact Generac for quantity required

$4.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 298799

Rewind Starter Ratchet
(Superseded to 691945)

Note: Contact Generac for quantity required

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 394506

Clutch Retainer Washer
(Superseded to 691359)

Note: Contact Generac for quantity required

$9.99

$

In Stock, Qty 14

0

73

Briggs & Stratton 221923

Starter Pulley Screen

Note: Contact Generac for quantity required

$29.99

$

Usually ships in 2-12 days

0

74

Briggs & Stratton 93490

Hex Head Screw
(Superseded to 691660)

Note: Contact Generac for quantity required

$3.99

$

In Stock, Qty 11

0

75

Briggs & Stratton 220865

Spring Washer
(Superseded to 690582)

Note: Contact Generac for quantity required

$4.49

$

In Stock, only 4 left!

0

200

Briggs & Stratton 223886

Air Guide
(Superseded to 691745)

Note: Contact Generac for quantity required

$11.99

$

Usually ships in 2-12 days

0

304

Briggs & Stratton 490169

Blower Housing

Note: Contact Generac for quantity required

$

$

Not available

305

Briggs & Stratton 93158

Blower Housing Mounting Screw
(Superseded to 692198)

Note: Contact Generac for quantity required

$5.99

$

In Stock, Qty 12

0

333

Briggs & Stratton 397358

Armature Assembly

Note: Contact Generac for quantity required

$53.99

$

In Stock, Qty 20+

0

335

Briggs & Stratton 93414

Armature Mounting Screw
(Superseded to 691621)

Note: Contact Generac for quantity required

$7.49

$

Usually ships in 2-12 days

0

346

Briggs & Stratton 93705

Screw
(Superseded to 690661)

Note: Contact Generac for quantity required

$3.49

$

In Stock, Qty 9

0

356

Briggs & Stratton 398808

Ground Wire

Note: Contact Generac for quantity required

$11.99

$

In Stock, only 1 left!

0

363

Briggs & Stratton 19069

Flywheel Puller

Note: Contact Generac for quantity required

$23.99

$

In Stock, only 1 left!

0

373

Briggs & Stratton 92987

Hex Nut
(Superseded to 690800)

Note: Contact Generac for quantity required

$3.99

$

In Stock, Qty 13

0

608

Briggs & Stratton 299406

Rewind Starter Assembly

Note: Contact Generac for quantity required

$

$

Currently unavailable

655

Briggs & Stratton 222598

Anchor Spring
(Superseded to 691734)

Note: Contact Generac for quantity required

$4.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 221798

Ignition Cable Terminal
(Superseded to 493880S)

Note: Contact Generac for quantity required

$3.49

$

In Stock, Qty 20+

0

1016

Briggs & Stratton 490817

Spacer

Note: Contact Generac for quantity required

$9.49

$

In Stock, Qty 5

0
