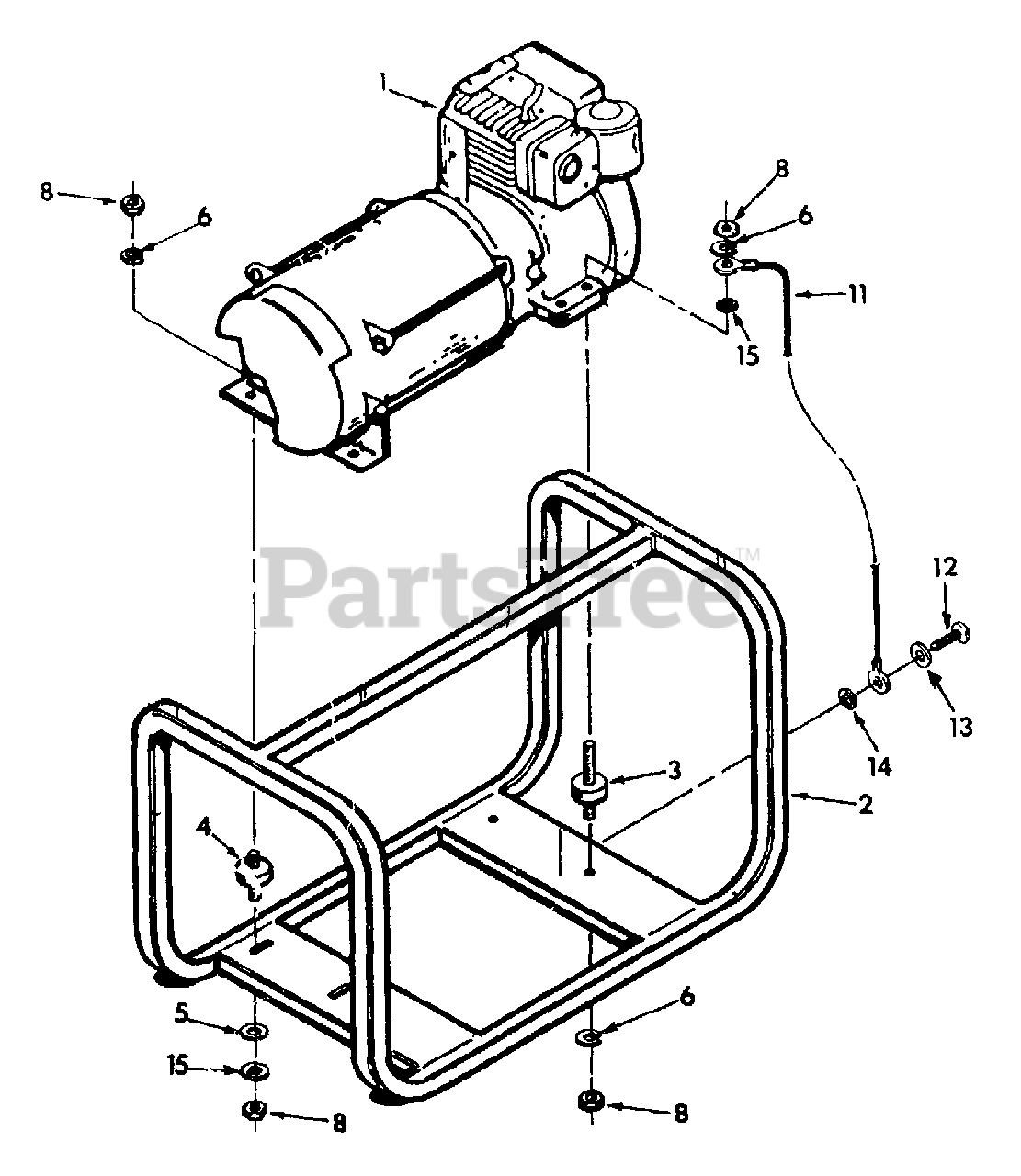

580.327150 (9296-0) - Craftsman 2,400 Watt Portable Generator Cradle Parts Diagram

2,400 Watt Portable Generator

Cradle Parts Diagram

  • Title

1

Briggs & Stratton 76515

ENGINE -- BRIGGS & STRATTON 5 HP. FOR CRADLE
(Superseded to 7076515YP)

$10.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 75967

CRADLE

$

$

Currently unavailable

3

Briggs & Stratton 66443A

VIBRATION MOUNT -- ENGINE

$

$

Currently unavailable

4

Briggs & Stratton 66443B

VIBRATION MOUNT -- GENERATOR
(Superseded to 66443BGS)

$20.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 22145

FLAT WASHER -- M8

$

$

Not available

6

Briggs & Stratton 22129

LOCK WASHER -- M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

8

Briggs & Stratton 45771

HEX NUT -- M8-1.25

$

$

Not available

11

Briggs & Stratton 10953621

WIRE ASSEMBLY -- 4" LONG

$

$

Currently unavailable

12

Briggs & Stratton 24911

TAPTITE SCREW -- NO. 8 x 3/8"
(Superseded to 24911GS)

$3.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 38150

FLAT WASHER -- NO. 8
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 23365

SHAKEPROOF WASHER -- NO. 8
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 27482

SHAKEPROOF WASHER -- 5/16"
(Superseded to 27482GS)

$3.49

$

Usually ships in 2-12 days

0
