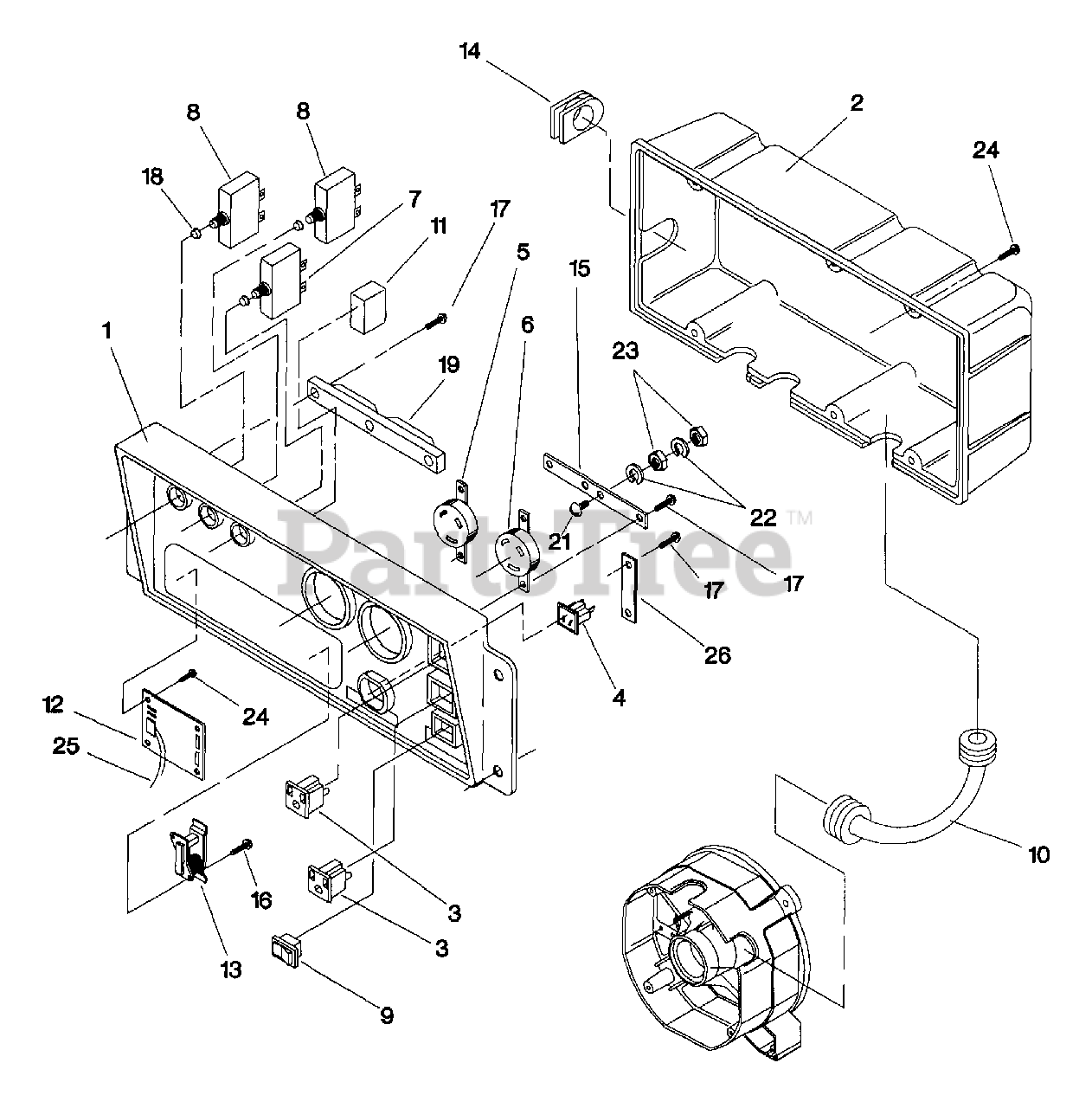

580.327140 (1189-0) - Craftsman 4,200 Watt Portable Generator Control Panel Parts Diagram

4,200 Watt Portable Generator

Control Panel Parts Diagram

  • Title
1

Briggs & Stratton B1431

PANEL, Control
(Superseded to 83976GS)

$95.99

$

In Stock, Qty 5

0

2

Briggs & Stratton 83975

BOX, Control
(Superseded to 83975GS)

$

$

Not available

3

Briggs & Stratton 66818

OUTLET, 120 Volt AC
(Superseded to 66818GS)

$

$

Not available

4

Briggs & Stratton 66821

OUTLET, 12 Volts DC
(Superseded to 66821GS)

$21.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 68867C

OUTLET, 120/240 Volt, 20 Amp Locking
(Superseded to 68867CGS)

$19.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 68868C

OUTLET, 120 Volt, 30 Amp Locking
(Superseded to 68868CGS)

$37.99

$

Usually ships in 2-12 days

0

7

75207A

CIRCUIT BREAKER, 30 Amp

$

$

Not available

8

Briggs & Stratton 75207G

CIRCUIT BREAKER, 18 Amp
(Superseded to 75207GGS)

$10.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 82538

SWITCH, On/Off Rocker
(Superseded to 82538GS)

$6.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 84134

GROMMET, Rubber
(Superseded to 84134GS)

$5.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 83514

CIRCUIT BREAKER, 10 Amp
(Superseded to 83514GS)

$10.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 83970

CONTROL BOARD, System
(Superseded to 83970GS)

$

$

Not available

13

Briggs & Stratton 84028

TRANSFORMER, Idle Control
(Superseded to 84028GS)

$47.99

$

In Stock, only 1 left!

0

14

Briggs & Stratton 67022

GROMMET, Rubber
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 85584

BAR, Bus
(Superseded to 85584GS)

$11.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 84543A

SCREW, 3.0 x 12mm
(Superseded to 84543AGS)

$3.49

$

In Stock, only 4 left!

0

17

Briggs & Stratton 84543C

SCREW, 3.5 x 18mm
(Superseded to 84543CGS)

$2.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 84198

SHIELD, Circuit Breaker
(Superseded to 84198GS)

$4.49

$

In Stock, Qty 20+

0

19

Briggs & Stratton 84197

BAR, Circuit Breaker Retaining
(Superseded to 84197GS)

$3.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 75476

SCREW, 4.15 x 16mm
(Superseded to 75476GS)

$3.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 22264

WASHER, M4 Lock

$

$

Not available

23

Briggs & Stratton 51715

NUT, M3 Hex
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 84543B

SCREW, 3.5 x 12mm
(Superseded to 84543BGS)

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 84335

WIRE HARNESS
(Superseded to 84335GS)

$39.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 82542

BAR, DC Outlet Retaining
(Superseded to 82542GS)

$1.99

$

Usually ships in 2-12 days

0
