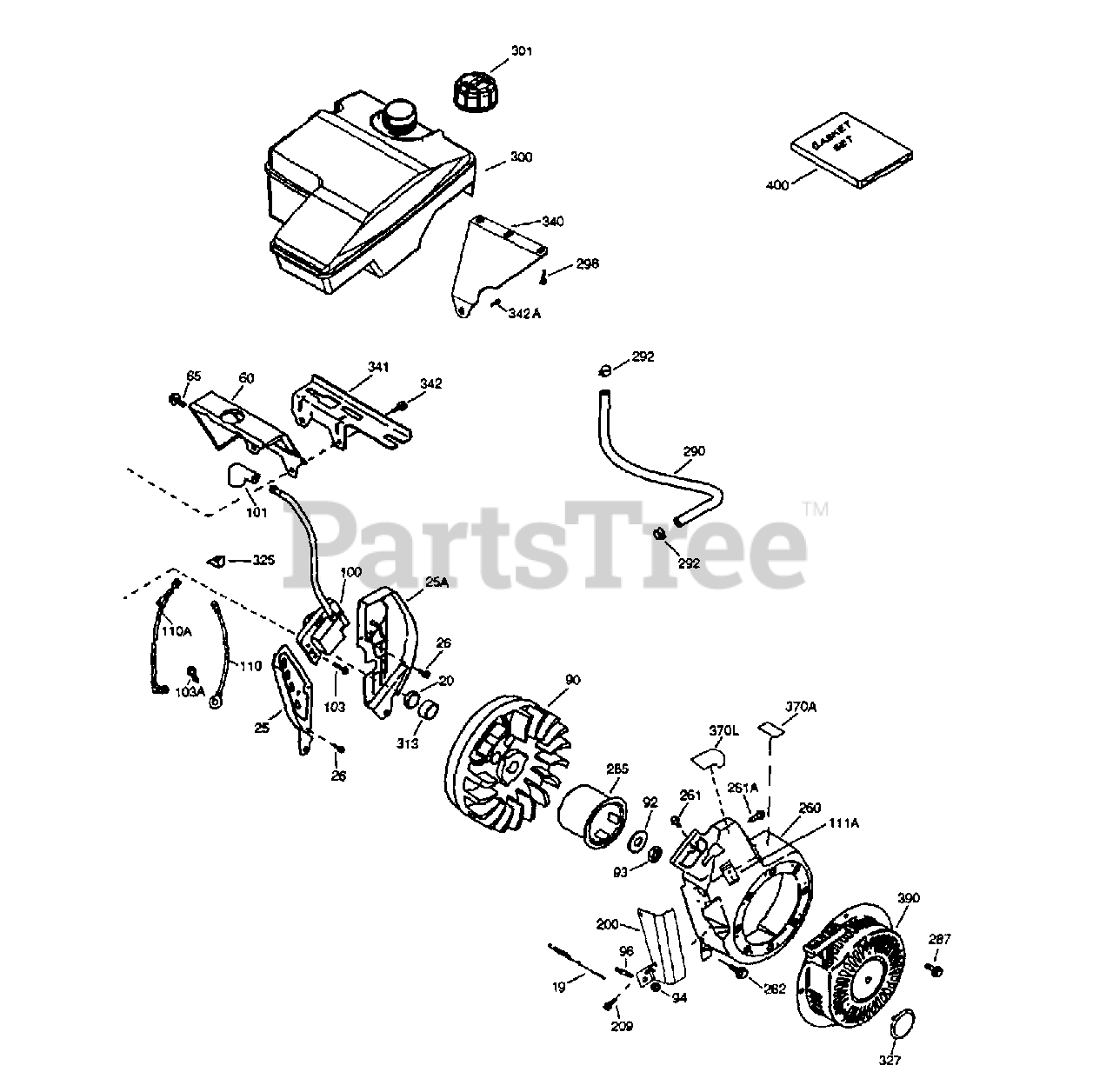

580.327122 (1187-0) - Craftsman 2,500 Watt Portable Generator 4-Cycle Engine Parts Diagram

2,500 Watt Portable Generator

4-Cycle Engine Parts Diagram

  • Title
19

Briggs & Stratton 37163

Extension Spring

$

$

Currently unavailable

20

$

$

Currently unavailable

25

Briggs & Stratton 36621

Air Baffle (Left)

$

$

Currently unavailable

25A

Briggs & Stratton 36622

Air Baffle (Right).

$

$

Currently unavailable

26

Briggs & Stratton 30200

Screw, 10-24 x 9/16"

$

$

Currently unavailable

60

Briggs & Stratton 36623A

Blower Housing Ext.

$

$

Currently unavailable

65

Briggs & Stratton 30200

Screw, 10-24 x 9/16"

$

$

Currently unavailable

$

$

Currently unavailable

92

Briggs & Stratton 650815

Belleville Washer

$

$

Currently unavailable

93

$

$

Currently unavailable

94

Briggs & Stratton 651016

Lock Nut, 10-32

$

$

Currently unavailable

96

Briggs & Stratton 30845A

RPM Adjusting Bolt

$

$

Currently unavailable

100

Briggs & Stratton 34443B

Solid State Ignition

$

$

Currently unavailable

101

Briggs & Stratton 610118

Spark Plug Cover

$

$

Currently unavailable

103

Briggs & Stratton 651007

Screw, Torx T-15 10-24x1 5/16"

$

$

Currently unavailable

103A

Briggs & Stratton 650767

Screw, 8-32x27/64"

$

$

Currently unavailable

110

$

$

Currently unavailable

110A

$

$

Currently unavailable

111A

Briggs & Stratton 611226

Rocker On/Off Switch

$

$

Currently unavailable

200

Briggs & Stratton 37123

Control Bracket

$

$

Currently unavailable

209

Briggs & Stratton 650821

Screw, 10-32x1/2"

$

$

Currently unavailable

260

Briggs & Stratton 36992

Blower Housing

$

$

Currently unavailable

261

Briggs & Stratton 651008

Screw, 1/4-20x31/64"

$

$

Currently unavailable

261A

Briggs & Stratton 650821

Screw, 10-32x1/2"

$

$

Currently unavailable

262

Briggs & Stratton 651008

Screw, 1/4-20x31/64"

$

$

Currently unavailable

285

$

$

Currently unavailable

287

Briggs & Stratton 0

Rivet

Note: (Purchase Locally)

$

$

Currently unavailable

290

$

$

Currently unavailable

292

Briggs & Stratton 26460

Fuel Line Clamp

$

$

Currently unavailable

298

Briggs & Stratton 650665

Screw, 1/4-15x3/4"

$

$

Currently unavailable

300

Briggs & Stratton 37002

fuel Tank

Note: (Incl 292 & 301)

$

$

Currently unavailable

301

Briggs & Stratton 36754

Fuel Cap (Black)

$

$

Currently unavailable

$

$

Currently unavailable

325

Briggs & Stratton 29443

Wire Clip
(Superseded to 7061017YP)

$

$

Not available

327

$

$

Currently unavailable

340

Briggs & Stratton 37071

Fuel Tank Bracket

$

$

Currently unavailable

341

Briggs & Stratton 36644

Fuel Tank Bracket

$

$

Currently unavailable

342

Briggs & Stratton 651010

Screw, 1/4-20x7/8"

$

$

Currently unavailable

342A

Briggs & Stratton 650738

Screw, 1/4-20x5/8"

$

$

Currently unavailable

370A

Briggs & Stratton 36261

Lubrication Decal

$

$

Not available

370L

Briggs & Stratton 36771

Oil Sensor Decal

$

$

Currently unavailable

390

Briggs & Stratton 590736

Rewind Starter

$

$

Currently unavailable

400

Briggs & Stratton 36720

Gasket Set

Note: (Incl. 1 each 26756, 27272A, 39673, 35626, 36581, 36624, 36719); This is a replacement kit, not included in purchase.

$

$

Currently unavailable

400

Briggs & Stratton 26756

Gasket, Carburetor

$

$

Currently unavailable

400

Briggs & Stratton 27272A

Gasket, Air Cleaner

$

$

Currently unavailable

400

$

$

Currently unavailable

400

Briggs & Stratton 35626

Rocker Arm Cover Gasket

$

$

Currently unavailable

400

Briggs & Stratton 36581

Intake Pipe Gasket

$

$

Currently unavailable

400

Briggs & Stratton 36624

Cylinder Cover Gasket

$

$

Currently unavailable

400

Briggs & Stratton 36719

Cylinder Head Gasket

$

$

Currently unavailable
