580.327112 (1149-0) - Craftsman 5,000 Watt Portable Generator Tank & Fuel System Assembly Parts Diagram

5,000 Watt Portable Generator

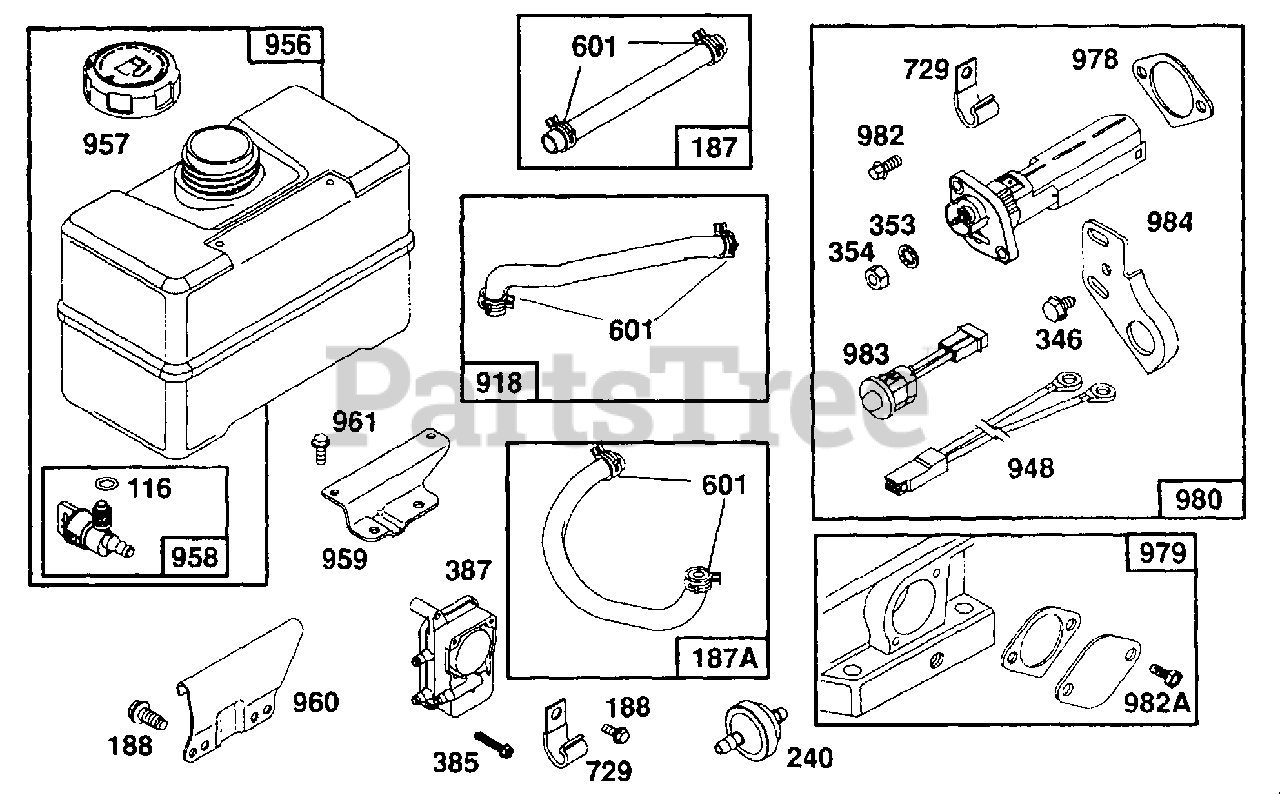

Tank & Fuel System Assembly Parts Diagram

  • Title

116

Briggs & Stratton 280203

Seal - O-Ring
(Superseded to 691898)

$5.49

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 393815

Line - Fuel
(Superseded to 791880)

Note: (11" Long, Cut to Suit)

$11.99

$

Usually ships in 2-12 days

0

187

Briggs & Stratton 296004

Line - Fuel
(Superseded to 791745)

Note: (28" Long, Cut to Suit)

$10.99

$

In Stock, Qty 20+

0

187A

Briggs & Stratton 497029

Line - Fuel

$16.99

$

Usually ships in 2-12 days

0

188

Briggs & Stratton 94627

Screw - Sem
(Superseded to 691058)

$5.99

$

In Stock, Qty 11

0

240

Briggs & Stratton 394358

Filter - Fuel
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

346

Briggs & Stratton 93705

Screw - Sem
(Superseded to 690661)

$3.49

$

In Stock, Qty 9

0

353

Briggs & Stratton 92791

Lockwasher
(Superseded to 691077)

$3.49

$

In Stock, only 2 left!

0

354

Briggs & Stratton 90576

Nut - Hex.
(Superseded to 691612)

$3.49

$

In Stock, only 1 left!

0

385

Briggs & Stratton 94789

Screw - Hex. Head
(Superseded to 691673)

$3.99

$

Usually ships in 2-12 days

0

387

Briggs & Stratton 496257

Pump - Fuel
(Superseded to 799056)

$30.99

$

In Stock, Qty 20+

0

601

Briggs & Stratton 93053

Clamp - Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

729

Briggs & Stratton 223528

Clip - Wire
(Superseded to 690430)

$4.99

$

Usually ships in 2-12 days

0

918

Briggs & Stratton 497547

Line

$

$

Currently unavailable

948

Briggs & Stratton 398661

Harness - Wiring

$34.99

$

Usually ships in 2-12 days

0

956

Briggs & Stratton 493337

Tank - Fuel
(Superseded to 691993)

$166.99

$

In Stock, Qty 10

0

957

Briggs & Stratton 493988

Cap - Fuel Tank
(Superseded to 799719)

$40.99

$

In Stock, only 3 left!

0

958

Briggs & Stratton 399517

Valve - Shut-Off
(Superseded to 698182)

$

$

Not available

959

Briggs & Stratton 495664

Bracket - Fuel Tank

$

$

Not available

960

Briggs & Stratton 492990

Bracket Fuel Tank
(Superseded to 694592)

$17.99

$

In Stock, only 1 left!

0

961

Briggs & Stratton 94095

Screw - Hex. Head
(Superseded to 690708)

$2.99

$

Usually ships in 2-12 days

0

978

Briggs & Stratton 271736

Gasket
(Superseded to 273326S)

$7.49

$

Usually ships in 2-12 days

0

979

Briggs & Stratton 494807

Cover - OIL GARD(TM)
(Superseded to 691382)

$4.99

$

Usually ships in 2-12 days

0

980

Briggs & Stratton 398182

OIL GARD(TM) Kit

$102.99

$

Usually ships in 2-12 days

0

982

Briggs & Stratton 94657

Screw - Hex. Head
(Superseded to 690350)

$3.99

$

Usually ships in 2-12 days

0

982A

Briggs & Stratton 94658

Screw - Hex. Head
(Superseded to 690351)

$3.99

$

In Stock, only 2 left!

0

983

Briggs & Stratton 398660

Light - Indicator

$

$

Not available

984

Briggs & Stratton 223773

Bracket - Light
(Superseded to 692340)

$5.49

$

Usually ships in 2-12 days

0

Briggs & Stratton 497070

Gasket Set

$55.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 94733

Stud - Cyl. Hd.
(Superseded to 691690)

$

$

Not available

Briggs & Stratton 94726

Nut - Hex
(Superseded to 691105)

$7.99

$

In Stock, only 1 left!

0
