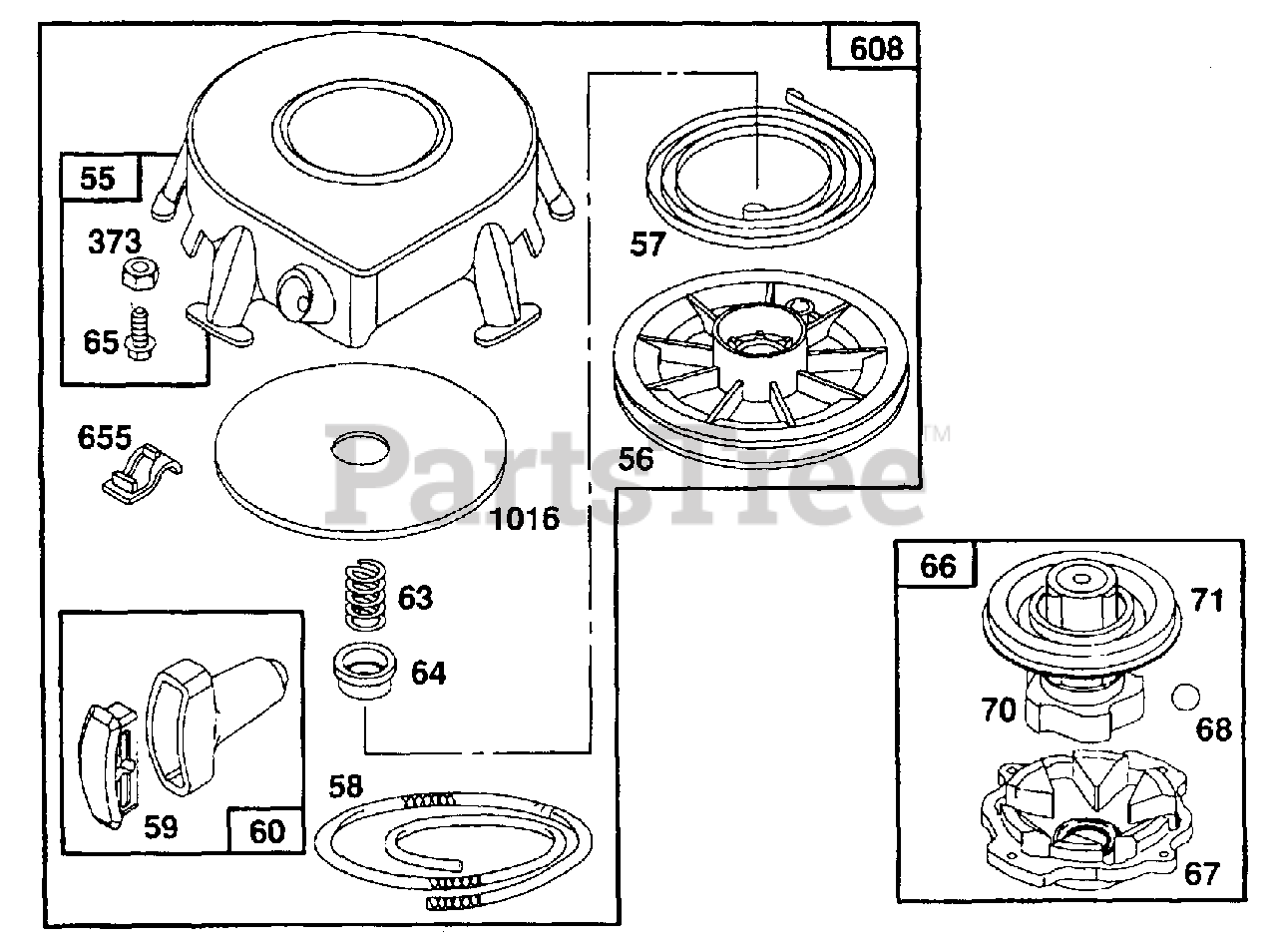

580.327112 (1149-0) - Craftsman 5,000 Watt Portable Generator Rewind - Starter Assembly Parts Diagram

5,000 Watt Portable Generator

Rewind - Starter Assembly Parts Diagram

  • Title

55

Briggs & Stratton 393576

Housing - Rewind Starter

$85.99

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 295871

Pulley - Starter

$14.99

$

In Stock, Qty 20+

0

57

Briggs & Stratton 490179

Spring - Rewind Starter

$

$

Not available

58

Briggs & Stratton 66884

Rope - Starter
(Superseded to 692188)

Note: (63" Long)

$8.49

$

In Stock, only 1 left!

0

59

Briggs & Stratton 490653

Insert Starter Handle
(Superseded to 490652)

$5.49

$

In Stock, Qty 12

0

60

Briggs & Stratton 490652

Grip - Starter Rope

$5.49

$

In Stock, Qty 12

0

63

Briggs & Stratton 260414

Spring - Ratchet
(Superseded to 690547)

$8.49

$

In Stock, Qty 5

0

64

Briggs & Stratton 230543

Adapter - Ratchet Spring
(Superseded to 691920)

$11.99

$

In Stock, Qty 5

0

65

Briggs & Stratton 94128

Screw - Sem
(Superseded to 690837)

$3.49

$

In Stock, Qty 20+

0

66

Briggs & Stratton 399671

Clutch - Starter

$34.99

$

In Stock, Qty 20+

0

67

Briggs & Stratton 394897

Housing - Clutch

$36.99

$

In Stock, only 2 left!

0

68

Briggs & Stratton 63770

Ball - Starter Clutch
(Superseded to 691604)

$4.99

$

Usually ships in 2-12 days

0

70

Briggs & Stratton 298799

Ratchet - Rewind Starter
(Superseded to 691945)

$17.99

$

In Stock, only 1 left!

0

71

Briggs & Stratton 394506

Washer - Retainer
(Superseded to 691359)

$9.99

$

In Stock, Qty 14

0

373

Briggs & Stratton 92987

Nut - Hex.
(Superseded to 690800)

$3.99

$

In Stock, Qty 13

0

608

Briggs & Stratton 390391

Starter - Rewind
(Superseded to 693900)

$131.99

$

In Stock, Qty 10

0

655

Briggs & Stratton 222598

Anchor - Spring
(Superseded to 691734)

$4.99

$

Usually ships in 2-12 days

0

1016

Briggs & Stratton 490817

Spacer

$9.49

$

In Stock, Qty 5

0
