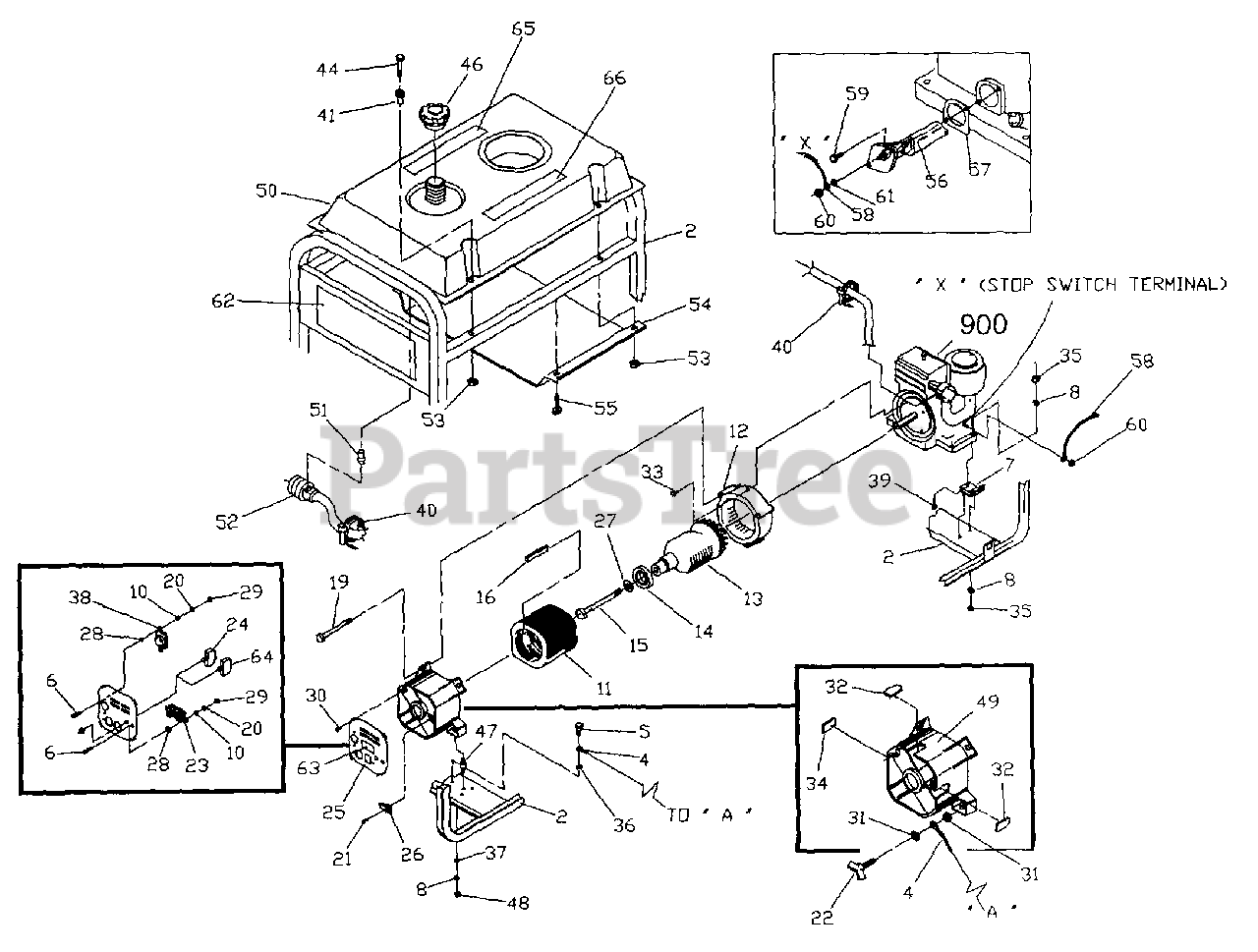

580.327112 (1149-0) - Craftsman 5,000 Watt Portable Generator Main Unit Parts Diagram

5,000 Watt Portable Generator

Main Unit Parts Diagram

  • Title

900

Briggs & Stratton 91011

ENGINE, Briggs & Stratton 10 Hp

$

$

Currently unavailable

2

Briggs & Stratton 91020B

ASSEMBLY, Cradle
(Superseded to 91020BGS)

$293.99

$

Usually ships in 2-12 days

0

4

14353621

WIRE, Ground

$

$

Not available

5

Briggs & Stratton 86292

CAPSCREW, #10 Self Driller
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

6

Briggs & Stratton 75475

SCREW, M4-0.7 x 10mm

$

$

Not available

7

Briggs & Stratton 70642

MOUNT, Vibration
(Superseded to 70642GS)

$31.99

$

In Stock, only 2 left!

0

8

Briggs & Stratton 22129

WASHER, M8 Lock
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 38150

WASHER, No. 8 Flat
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 93585J

ASSEMBLY, Stator
(Superseded to 93585JGS)

$

$

Not available

12

Briggs & Stratton 66365G

HOUSING, Engine Adapter
(Superseded to 66365GGS)

$69.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 91844

ASSEMBLY, Rotor

$

$

Currently unavailable

14

Briggs & Stratton 65791

BEARING, Ball
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 47480

BOLT, Rotor 5/16"-24 x 7"
(Superseded to 5047480B)

$205.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 81917

PIN, M4 x 10 Roll
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 86308C

BOLT, Stator M6-1.00 x 130mm
(Superseded to 86308CGS)

$5.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22264

WASHER, No. 8 Lock

$

$

Not available

21

Briggs & Stratton 66849

SCREW, M5-.80 x 16mm Taptite
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 86494

SCREW, M6 x 16mm Wing
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 68759

RECEPTACLE, 120Volts AC, 20AMP
(Superseded to 68759GS)

$24.99

$

In Stock, only 4 left!

0

24

Briggs & Stratton 94396B

BREAKER, Circuit - 20AMP
(Superseded to 94396BGS)

$30.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 95600

PANEL, Control Sheet Metal
(Superseded to 95600GS)

$24.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 91825

ASSEM, Brush & Bridge Rectifier

$

$

Not available

27

Briggs & Stratton 67451

WASHER, Flat

Note: (Special)

$

$

Currently unavailable

28

Briggs & Stratton 23365

WASHER, No. 8 Shakeproof
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 51715

NUT, M4-0.7 Hex
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 74908

SCREW, M5-0.80 x 10mm
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 26850

WASHER, Shakeproof - 1/4"

$

$

Not available

32

Briggs & Stratton 84242

GROMMET, Rear Bearing Carrier
(Superseded to 84242GS)

$4.99

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 86307

CAPSCREW, Hx Hd.- 5/16" x 3/4"
(Superseded to 86307GS)

$2.99

$

In Stock, only 3 left!

0

34

Briggs & Stratton 67022

GROMMET, Bearing Carrier
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 52858

NUT, M8-1.25 Hex
(Superseded to 52858GS)

$3.99

$

In Stock, only 2 left!

0

36

Briggs & Stratton 22769

WASHER, No. 10 Shakeproof
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 22145

WASHER, M8 Flat

$

$

Not available

38

Briggs & Stratton 68867

OUTLET, 120/240 Volt - Twistlock
(Superseded to 68867GS)

$46.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 76222

SCREW, Pan Head - M8 x 40mm
(Superseded to 76222GS)

$4.99

$

Usually ships in 2-12 days

0

40

Briggs & Stratton 48031C

CLAMP, 1/4" Hose

$

$

Not available

41

Briggs & Stratton 83465

GROMMET, Mounting Tank
(Superseded to 83465GS)

$3.99

$

In Stock, only 4 left!

0

44

Briggs & Stratton 78831B

CAPSCW., Hx Hd. - M6-1.0 x 60mm
(Superseded to 78831BGS)

$

$

Not available

46

Briggs & Stratton 90878

CAP, Fuel Tank
(Superseded to 846987)

$21.99

$

In Stock, only 4 left!

0

47

Briggs & Stratton 82857

MOUNT, Vibration
(Superseded to 82857GS)

$12.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 25244

NUT, 5/16" - 18 Hex
(Superseded to 25244GS)

$3.49

$

Usually ships in 2-12 days

0

49

Briggs & Stratton 66825C

BEARING, Rear Carrier
(Superseded to SRV66825DGS)

$137.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 77374

TANK, Fuel

$

$

Currently unavailable

51

Briggs & Stratton 78299

BUSHING, Plastic Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

52

Briggs & Stratton 80270

VALVE, Plastic Tank
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

53

Briggs & Stratton 77395

NUT, M6 Hex Lock
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

54

Briggs & Stratton 78951

SHIELD, Heat

$

$

Currently unavailable

55

Briggs & Stratton 56892

SCREW, Crimptite #10-24 x 3/8"
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

56

Briggs & Stratton 88977

SWITCH, Low Oil Shut-Down (LOS)

$

$

Currently unavailable

57

Briggs & Stratton 91841

GASKET

$

$

Not available

58

Briggs & Stratton 91842

WIRE, Low Oil Shut-Down

$

$

Currently unavailable

59

Briggs & Stratton 32713

SCREW, No. 10-32 x 3/4" Taptite
(Superseded to 32713GS)

$3.49

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 22471

NUT, No. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

61

Briggs & Stratton 23365

WASHER, No. 8 Shakeproof
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton B3050

DECAL, Panel Cradle

$

$

Not available

63

Briggs & Stratton 98247

DECAL, Control Panel

$

$

Not available

64

Briggs & Stratton 94396A

BREAKER, Circuit 15 AMP
(Superseded to 94396AGS)

$35.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 92982

DECAL, Danger
(Superseded to 194799GS)

$11.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 93826

DECAL, Operating Instructions
(Superseded to 93826GS)

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton B3051

Owner's Manual
(Superseded to B3051GS)

Note: Not Illustrated

$14.99

$

Usually ships in 2-12 days

0

Briggs & Stratton B3061

20oz. Engine Oil

Note: Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 0932684

Wheel Kit

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 0932688

Cord Wrap Kit

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable

Briggs & Stratton 0932686

120/240V 20A Plug

Note: Optional Accessories Not Illustrated

$

$

Currently unavailable
