580.327112 (1149-0) - Craftsman 5,000 Watt Portable Generator Carburetor Kit & Gasket Sets Parts Diagram

5,000 Watt Portable Generator

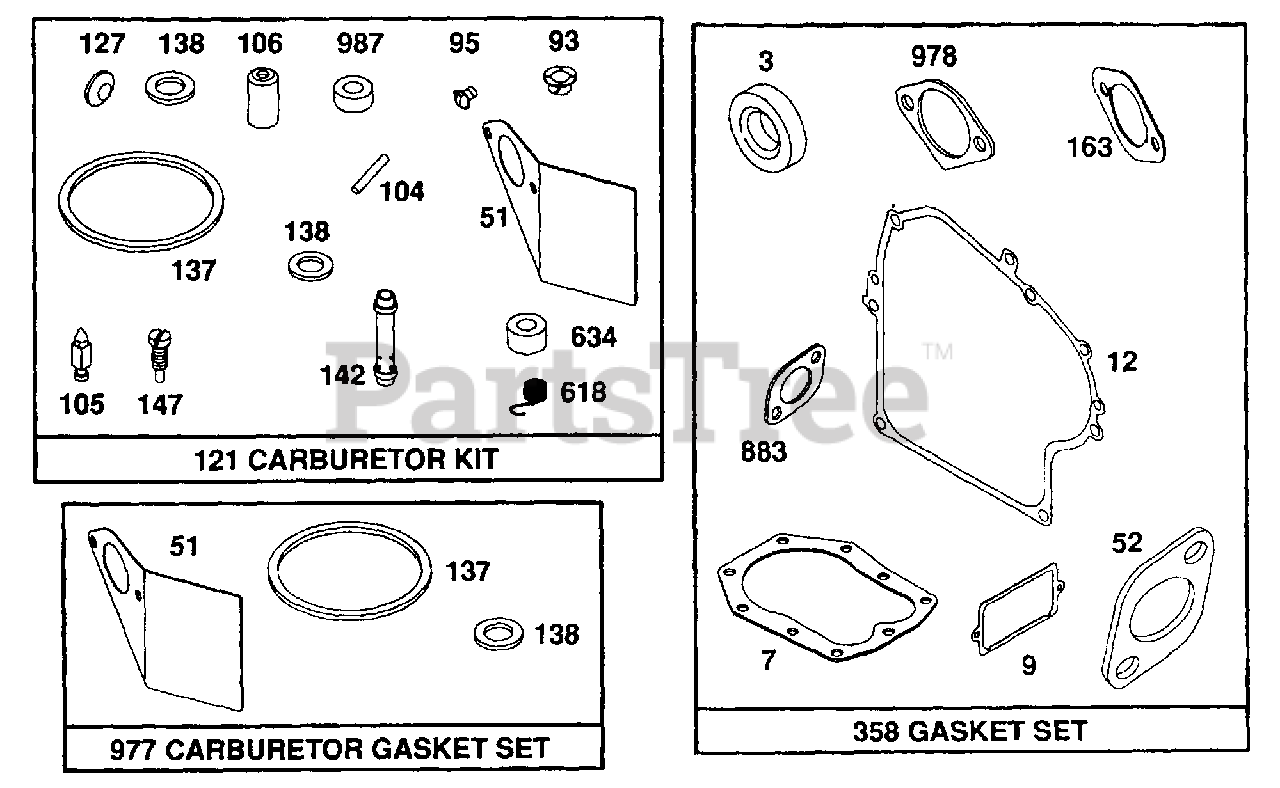

Carburetor Kit & Gasket Sets Parts Diagram

  • Title

3

Briggs & Stratton 391086

Seal - Oil
(Superseded to 391086S)

$6.49

$

In Stock, Qty 20+

0

7

Briggs & Stratton 272163

Gasket - Cylinder Hd.
(Superseded to 272163S)

$7.99

$

In Stock, Qty 20+

0

9

Briggs & Stratton 27803

Gasket - Breather
(Superseded to 27803S)

$4.49

$

In Stock, Qty 20+

0

12

Briggs & Stratton 271701

Gasket - Crankcase
(Superseded to 692221)

Note: (.015" Thick)

$8.99

$

In Stock, Qty 7

0

12

Briggs & Stratton 27876

Gasket - Crankcase

Note: (.005" Thick)

$

$

Not available

12

Briggs & Stratton 27877

Gasket - Crankcase

Note: (.009" Thick)

$10.99

$

In Stock, only 3 left!

0

51

Briggs & Stratton 272708

Gasket - Intake
(Superseded to 691886)

$

$

Not available

52

Briggs & Stratton 272707

Gasket - Intake
(Superseded to 691885)

$4.99

$

In Stock, Qty 8

0

93

Briggs & Stratton 281346

Bushing - Shaft
(Superseded to 690602)

$9.49

$

Usually ships in 2-12 days

0

95

Briggs & Stratton 94098

Screw - Round Head
(Superseded to 691636)

$3.99

$

In Stock, only 2 left!

0

104

Briggs & Stratton 231789

Pin - Float Hinge
(Superseded to 690525)

$4.99

$

In Stock, only 1 left!

0

105

Briggs & Stratton 231935

Valve - Needle
(Superseded to 691782)

$18.99

$

In Stock, Qty 8

0

106

Briggs & Stratton 231856

Seat - Inlet
(Superseded to 691780)

$10.99

$

In Stock, only 2 left!

0

121

Briggs & Stratton 497849

Carburetor Kit

Note: (Used After Code Date 94062300).

$

$

Not available

121

Briggs & Stratton 497166

Carburetor Kit

Note: (Used Before Code Date 94062400).

$71.99

$

Usually ships in 2-12 days

0

127

Plug - Welch

Note: (Sold in Kit Only)

$

$

Not available

137

Briggs & Stratton 281165

Gasket - Float Bowl
(Superseded to 281165S)

$4.99

$

Usually ships in 2-12 days

0

138

Briggs & Stratton 281164

Washer
(Superseded to 692255)

$5.49

$

In Stock, Qty 20+

0

142

Briggs & Stratton 497564

Nozzle - Carburetor

Note: (Used After Code Date 94062300).

$29.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 497848

Nozzle - Carb.

Note: (High Altitude)

$30.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 497197

Nozzle - Carb.

Note: (Used Before Code Date 94062400).

$24.99

$

Usually ships in 2-12 days

0

142

Briggs & Stratton 497198

Nozzle - Carb.

Note: (High Altitude)

$23.99

$

Usually ships in 2-12 days

0

147

Briggs & Stratton 497472

Jet - Pilot

Note: (Used After Code Date 94072400).

$22.99

$

Usually ships in 2-12 days

0

147

Briggs & Stratton 231794

Jet - Pilot
(Superseded to 497472)

Note: (Used Before Code Date 94072500).

$22.99

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 272706

Gasket - Air Cleaner
(Superseded to 692277)

$6.99

$

In Stock, only 2 left!

0

358

Briggs & Stratton 497070

Gasket Set

$55.99

$

Usually ships in 2-12 days

0

618

Briggs & Stratton 262803

Spring - Choke Return

$8.99

$

Usually ships in 2-12 days

0

634

Briggs & Stratton 281168

Seal - Choke Shaft
(Superseded to 690597)

$6.49

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 272309

Gasket - Exhaust
(Superseded to 692237)

$5.49

$

In Stock, only 3 left!

0

977

Briggs & Stratton 497069

Carburetor Gasket Set
(Superseded to 497849)

$

$

Not available

978

Briggs & Stratton 271736

Gasket - Oil Switch
(Superseded to 273326S)

$7.49

$

Usually ships in 2-12 days

0

987

Briggs & Stratton 281166

Seal - Throttle Shaft
(Superseded to 691326)

$5.49

$

Usually ships in 2-12 days

0
