580.327100 (9218-0) - Craftsman 4,000 Watt Portable Generator Receptacle Panel No. 78965 Parts Diagram

4,000 Watt Portable Generator

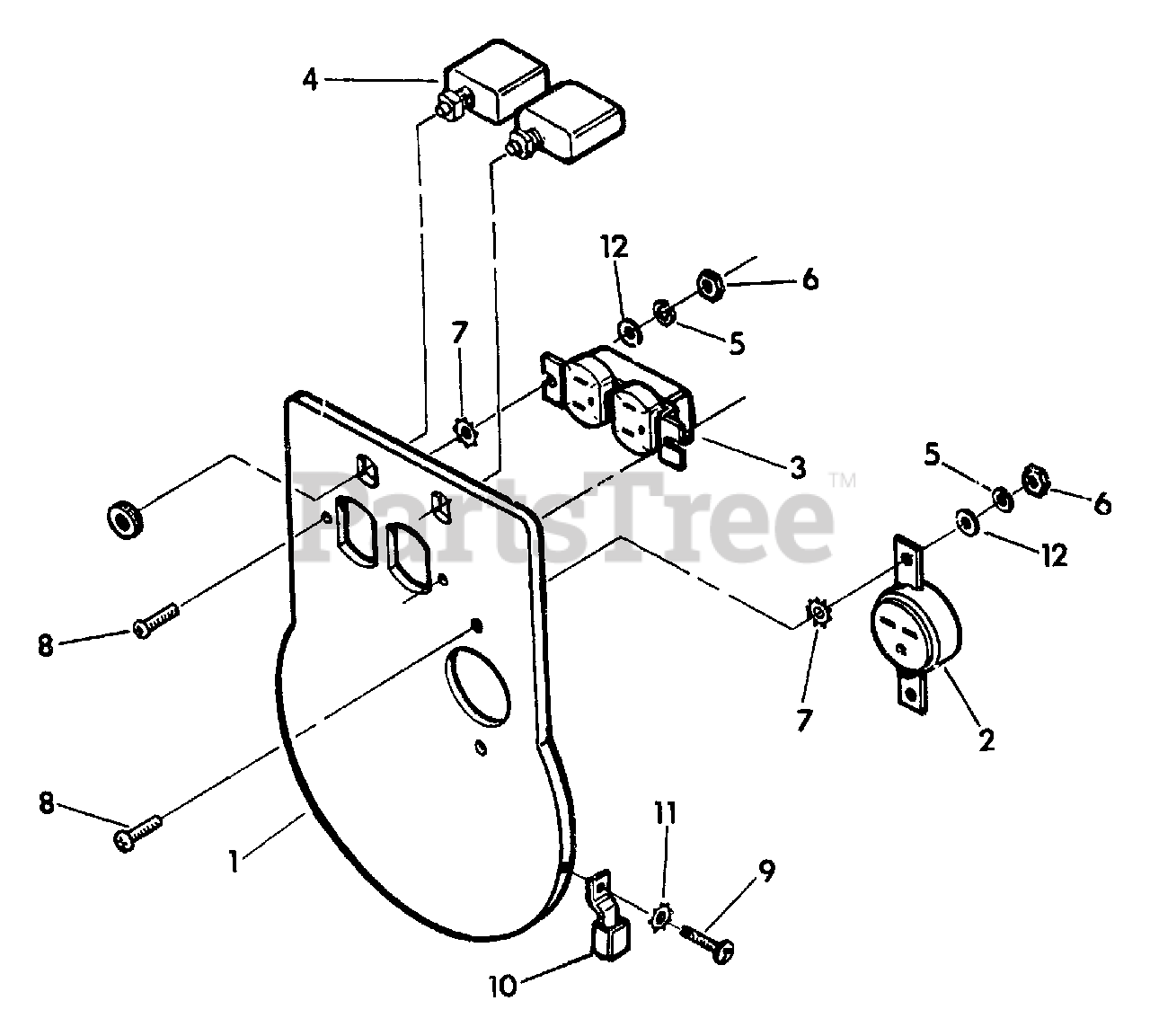

Receptacle Panel No. 78965 Parts Diagram

  • Title

1

Briggs & Stratton 75981

PANEL, RECEPTACLE (SILKSCREENED)

$

$

Currently unavailable

2

Briggs & Stratton 77249

RECEPTACLE -- 240 VOLTS, 15 AMP
(Superseded to 77249GS)

$50.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 63025

RECEPTACLE -- 120 VOLTS, 15 AMPS (DUPLEX)
(Superseded to 63025GS)

$12.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 75207D

CIRCUIT BREAKER -- 15 AMP
(Superseded to 75207DGS)

$13.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 22264

LOCK WASHER -- M4

$

$

Not available

6

Briggs & Stratton 51715

HEX NUT -- M4-0.7
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 23365

SERRATED WASHER -- M4
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 75475

SCREW, PAN HEAD -- M4-0.7 x 10 LG

$

$

Not available

9

Briggs & Stratton 24489

SCREW (TAPTITE) -- No. 10-32 X 3/8"

$

$

Currently unavailable

10

Briggs & Stratton 25433

GROUNDING LUG

$

$

Not available

11

Briggs & Stratton 22769

WASHER -- SHAKEPROOF, No. 10
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 38150

FLAT WASHER -- No. 8
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0
