580.327075 (9289-3) - Craftsman 8,000 Watt Portable Generator Stator Assembly And Generator - No. 86435 Parts Diagram

8,000 Watt Portable Generator

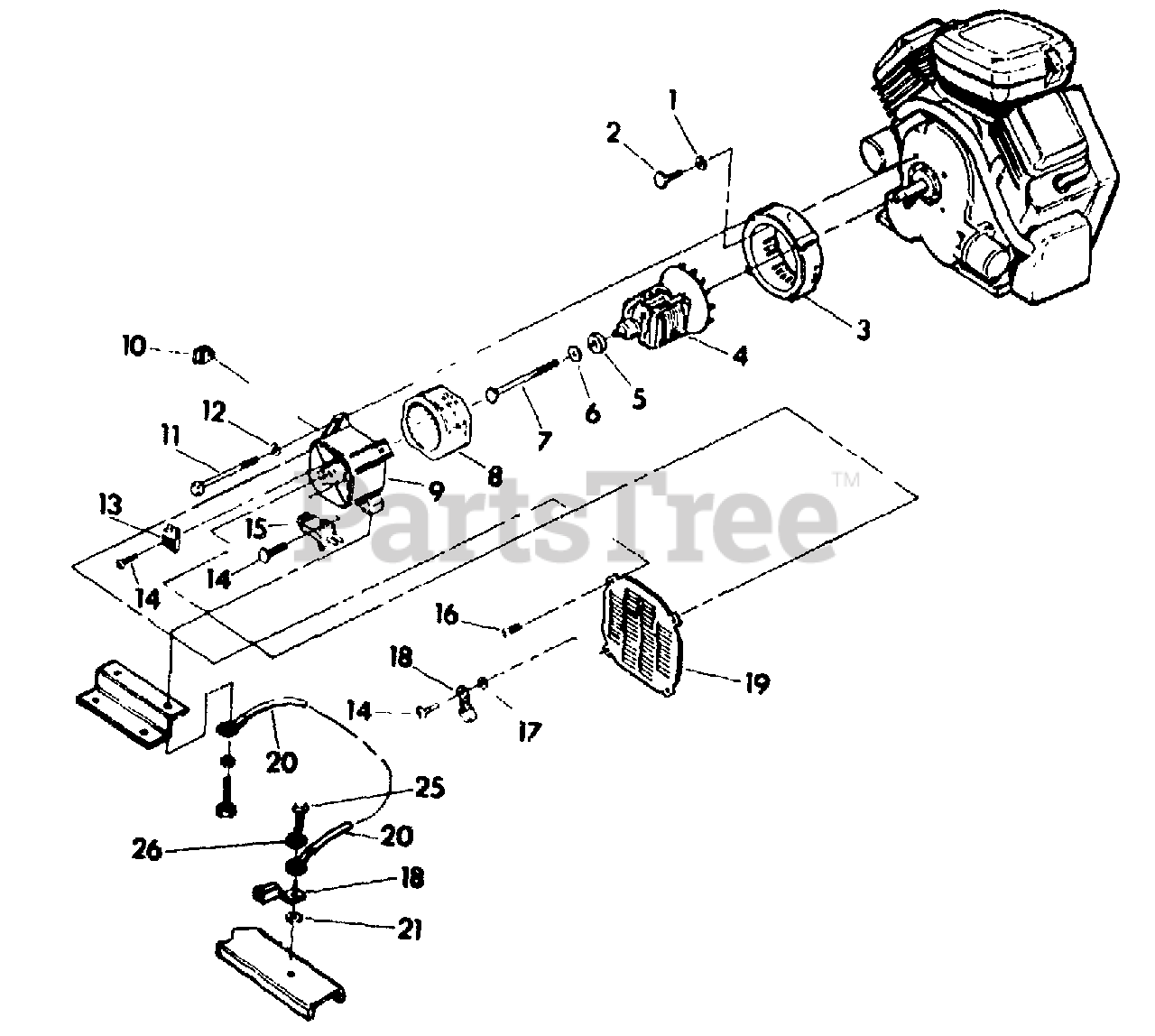

Stator Assembly And Generator - No. 86435 Parts Diagram

  • Title

1

Briggs & Stratton 22129

M8 LOCK WASHER
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

2

Briggs & Stratton 22336

5/16-24 X 3/4" HEX HEAD CAPSCREW

$

$

Not available

3

Briggs & Stratton 66365G

ENGINE ADAPTOR HOUSING
(Superseded to 66365GGS)

$69.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 77308

ROTOR ASSEMBLY

$

$

Currently unavailable

5

Briggs & Stratton 65791

BALL BEARING
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 67451

FLAT WASHER (SPECIAL)

$

$

Currently unavailable

7

Briggs & Stratton 51810

5/16"-24 x 11" ROTOR BOLT
(Superseded to 51810GS)

$11.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 77260

STATOR ASSEMBLY

$

$

Currently unavailable

9

Briggs & Stratton 66825

REAR BEARING CARRIER

$

$

Currently unavailable

10

Briggs & Stratton 67022

BEARING CARRIER GROMMET
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 66449K

M6-1.0 x 200mm STATOR BOLT
(Superseded to 66449LGS)

$30.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 22097

M6 LOCK WASHER
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 65795

BATTERY CHARGE RECTIFIER
(Superseded to 65795GS)

$

$

Not available

14

Briggs & Stratton 66849

TAPTITE SCREW
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

15

Briggs & Stratton 80812

BRUSH HOLDER ASSEMBLY

$

$

Currently unavailable

16

Briggs & Stratton 74908

M5-0.8 x 10mm TAPTITE SCREW
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

17

UNKNOWN

$

$

Not available

18

Briggs & Stratton 25433

GROUNDING LUG

$

$

Not available

19

Briggs & Stratton 78388

REAR BEARING CARRIER PANEL
(Superseded to B4871GS)

$9.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 11853621

GROUNDING WIRE
(Superseded to 11853621GS)

$13.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 22769

NO. 10 SHAKEPROOF WASHER
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 81887D

ALTERNATOR WRAPPER

$

$

Not available

23

Briggs & Stratton 52618

M5-0.8 x 12" HEX HEAD SCREW
(Superseded to 52618GS)

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 52856

M5-0.8 LOCKING NUT
(Superseded to 52856GS)

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 66849

M5-0.8 x 16mm TAPTITE SCREW
(Superseded to 66849GS)

$4.99

$

In Stock, only 1 left!

0

26

Briggs & Stratton 23897

M5 FLAT WASHER
(Superseded to 23897GS)

$2.99

$

Usually ships in 2-12 days

0
