580.327075 (9289-3) - Craftsman 8,000 Watt Portable Generator Control Panel No. 86208 Parts Diagram

8,000 Watt Portable Generator

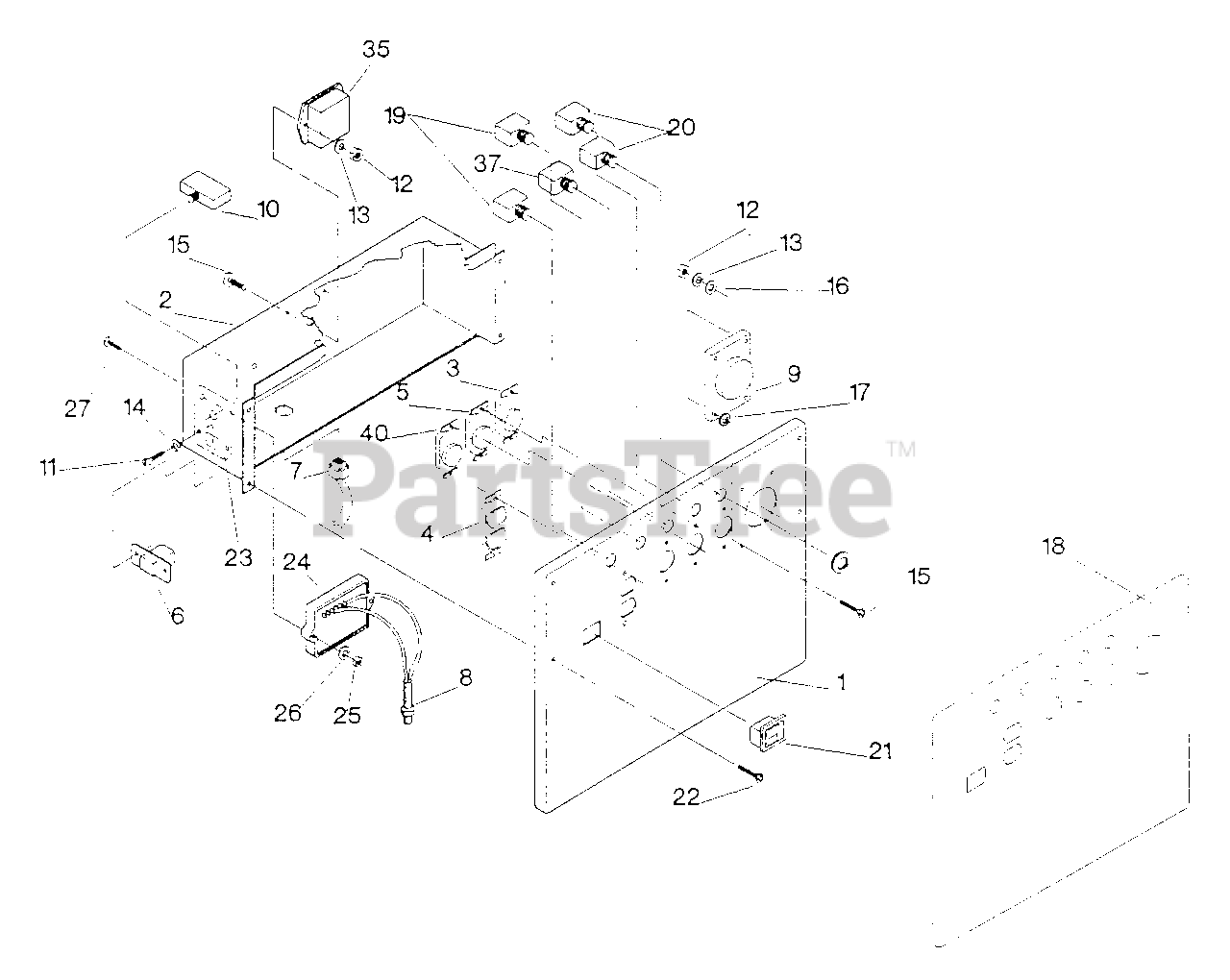

Control Panel No. 86208 Parts Diagram

  • Title

1

Briggs & Stratton 79720

CONTROL PANEL

$

$

Currently unavailable

2

Briggs & Stratton 86105

CONTROL PANEL COVER

$

$

Currently unavailable

3

Briggs & Stratton 43437

120/240-VOLT, 30 AMP TWISTLOCK OUTLET

$

$

Not available

4

Briggs & Stratton 63025

120-VOLT, 15 AMP DUPLEX OUTLET
(Superseded to 63025GS)

$12.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 68868

120 VOLT, 30 AMP TWISTLOCK OUTLET
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 66822

BATTERY CHARGE OUTLET
(Superseded to 66822GS)

Note: (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418

$11.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 63993

CONNECTOR

$

$

Currently unavailable

8

Briggs & Stratton 77244

FIELD BOOST ASSEMBLY

$

$

Currently unavailable

9

Briggs & Stratton 74191

250-VOLT, 50 AMP OUTLET
(Superseded to 74191GS)

$26.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 75207B

10 AMP CIRCUIT BREAKER
(Superseded to 75207BGS)

$12.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 70728

M3-0.5 x 5mm SCREW

$

$

Currently unavailable

12

Briggs & Stratton 51715

M4-0.7 HEX NUT
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 22264

M4 LOCK WASHER

$

$

Not available

14

Briggs & Stratton 43182

M3 LOCK WASHER
(Superseded to 43182GS)

$3.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 75475

M4-0.7 x 10mm SCREW

$

$

Not available

16

Briggs & Stratton 43180

M4 FLAT WASHER
(Superseded to 5043180B)

$54.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 23365

M4 SHAKEPROOF WASHER
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 80273

DECAL - SEARS 8kW

$

$

Currently unavailable

19

Briggs & Stratton 75207D

15 AMP CIRCUIT BREAKER
(Superseded to 75207DGS)

$13.99

$

Usually ships in 2-12 days

0

20

75207A

30 AMP CIRCUIT BREAKER

$

$

Not available

21

Briggs & Stratton 66817

SWITCH, ENGINE CONTROL
(Superseded to 66817GS)

$39.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 63036

No. 8-18 X 1/4" SCREW
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 86107

BATTERY CHARGE DECAL

$

$

Currently unavailable

24

Briggs & Stratton 83049

AC VOLTAGE REGULATOR
(Superseded to 83049GS)

$313.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 51716

M5-0.8 HEX NUT
(Superseded to 51716GS)

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 49226

M5 LOCK WASHER
(Superseded to 49226GS)

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 79224

M5-0.8 x 30mm SCREW

$

$

Not available

35

Briggs & Stratton 77314

THERMAL RELAY

$

$

Not available

37

Briggs & Stratton 75207

20 AMP CIRCUIT BREAKER
(Superseded to 209872GS)

$9.99

$

In Stock, Qty 14

0

40

Briggs & Stratton 74190

120-VOLT, 20 AMP TWISTLOCK OUTLET

$

$

Not available
