580.327074 (9289-2) - Craftsman 8,000 Watt Portable Generator Carburetor Overhaul Kit & Air Cleaner Assy Parts Diagram

8,000 Watt Portable Generator

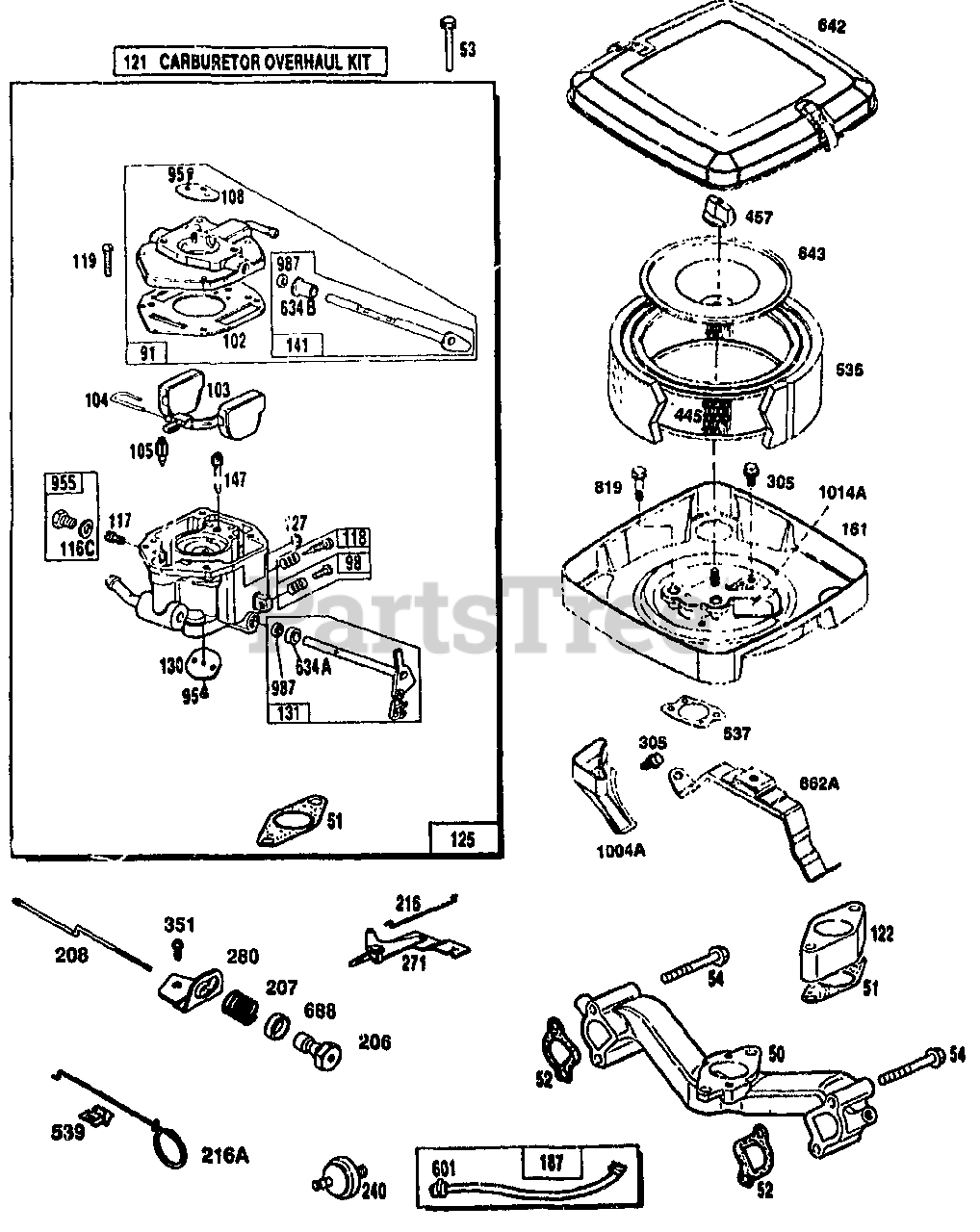

Carburetor Overhaul Kit & Air Cleaner Assy Parts Diagram

  • Title

50

Briggs & Stratton 72358

805409 -- Manifold assembly -- intake

Note: Contact Generac for quantity required

$

$

Currently unavailable

51

Briggs & Stratton 67290

805264 -- Carburetor mounting gasket

Note: Contact Generac for quantity required

$

$

Currently unavailable

52

Briggs & Stratton 67895

805023 -- Intake manifold gasket
(Superseded to 692035)

Note: Contact Generac for quantity required

$3.49

$

In Stock, Qty 15

0

53

Briggs & Stratton 79251

805466 -- Screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

54

Briggs & Stratton 67158

805006 -- Screw

Note: Contact Generac for quantity required

$8.99

$

Usually ships in 2-12 days

0

91

Briggs & Stratton 79260

807721 -- Upper carburetor body
(Superseded to 703954)

Note: Contact Generac for quantity required

$4.99

$

In Stock, Qty 20+

0

95

Briggs & Stratton 79261

805538 -- Valve mounting screw
(Superseded to 7090499YP)

Note: Contact Generac for quantity required

$3.49

$

Usually ships in 2-12 days

0

98

Briggs & Stratton 79262

807718 -- Throttle adjusting screw
(Superseded to 7079262YP)

Note: Contact Generac for quantity required

$2.99

$

Usually ships in 2-12 days

0

102

Briggs & Stratton 79263

805541 -- Intake elbow gasket
(Superseded to 703350)

Note: Contact Generac for quantity required

$4.49

$

In Stock, only 1 left!

0

103

Briggs & Stratton 79264

805546 -- Float assembly
(Superseded to 704123)

Note: Contact Generac for quantity required

$4.49

$

In Stock, only 3 left!

0

104

Briggs & Stratton 79265

805545 -- Floating hinge pin
(Superseded to 7077761YP)

Note: Contact Generac for quantity required

$3.99

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 79266

805620 -- Fuel inlet valve
(Superseded to 703237)

Note: Contact Generac for quantity required

$4.99

$

Usually ships in 2-12 days

0

108

Briggs & Stratton 79267

805539 -- Choke valve
(Superseded to 7079267YP)

Note: Contact Generac for quantity required

$3.49

$

Usually ships in 2-12 days

0

116C

Briggs & Stratton 79268

805549 -- Main jet gasket
(Superseded to 7079268YP)

Note: Contact Generac for quantity required

$3.49

$

In Stock, Qty 7

0

117

Briggs & Stratton 79269

805548 -- Main jet
(Superseded to 7079269YP)

Note: Contact Generac for quantity required

$2.99

$

In Stock, only 1 left!

0

118

Briggs & Stratton 79270

807719 -- Idle Adj. Needle Valve

Note: Contact Generac for quantity required

$

$

Currently unavailable

119

Briggs & Stratton 79271

805540 -- Upper body mtg. screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

121

Briggs & Stratton 79272

807726 -- Carburetor overhaul kit

Note: Contact Generac for quantity required

$

$

Currently unavailable

122

Briggs & Stratton 70553

805328 -- Carburetor spacer

Note: Contact Generac for quantity required

$

$

Currently unavailable

125

Briggs & Stratton 67173

807801 -- Carburetor assembly

Note: Contact Generac for quantity required

$

$

Currently unavailable

127

Briggs & Stratton 79273

805559 -- Welch plug
(Superseded to 703117)

Note: Contact Generac for quantity required

$3.49

$

In Stock, Qty 20+

0

130

Briggs & Stratton 79274

805554 -- Throttle valve

Note: Contact Generac for quantity required

$

$

Currently unavailable

131

Briggs & Stratton 79275

807720 -- Throttle shaft
(Superseded to 7090863YP)

Note: Contact Generac for quantity required

$2.99

$

Usually ships in 2-12 days

0

141

Briggs & Stratton 79276

807722 -- Choke shaft
(Superseded to 703817)

Note: Contact Generac for quantity required

$5.99

$

Usually ships in 2-12 days

0

147

Briggs & Stratton 79277

805553 -- Slow speed jet

Note: Contact Generac for quantity required

$

$

Not available

161

Briggs & Stratton 86443

807857 -- Air cleaner base assembly

Note: Contact Generac for quantity required

$

$

Currently unavailable

187

Briggs & Stratton 47662AA

393815 -- Fuel hose

Note: Contact Generac for quantity required

$

$

Currently unavailable

206

Briggs & Stratton 79278

805470 -- Nut for speed control

Note: Contact Generac for quantity required

$

$

Currently unavailable

207

Briggs & Stratton 79279

805473 -- Speed control screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

208

Briggs & Stratton 79280

805471 -- Speed control rod
(Superseded to 703954)

Note: Contact Generac for quantity required

$4.99

$

In Stock, Qty 20+

0

216

Briggs & Stratton 79283

805439 -- Choke link
(Superseded to 7073953YP)

Note: Contact Generac for quantity required

$2.99

$

Usually ships in 2-12 days

0

216A

Briggs & Stratton 79284

805509 -- Manual rod
(Superseded to 7079831YP)

Note: Contact Generac for quantity required

$3.99

$

Usually ships in 2-12 days

0

240

Briggs & Stratton 75213

394358 -- Fuel filter

Note: Contact Generac for quantity required

$

$

Currently unavailable

271

Briggs & Stratton 79286

807609 -- Choke control bracket
(Superseded to 7074467SM)

Note: Contact Generac for quantity required

$4.49

$

In Stock, Qty 10

0

280

Briggs & Stratton 79288

805472 -- Speed control bracket
(Superseded to 7079288YP)

Note: Contact Generac for quantity required

$3.49

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 66886

805406 -- Screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

351

Briggs & Stratton 70116

805169 -- Hex head screw
(Superseded to 70116GS)

Note: Contact Generac for quantity required

$6.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 86444

394018 -- Air cleaner cartridge
(Superseded to 394018S)

Note: Contact Generac for quantity required

$25.99

$

In Stock, Qty 20+

0

457

Briggs & Stratton 86445

491875 -- Air cleaner knob

Note: Contact Generac for quantity required

$

$

Currently unavailable

535

Briggs & Stratton 86446

271271 -- Foam Element

Note: Contact Generac for quantity required

$

$

Currently unavailable

537

Briggs & Stratton 66480

805003 -- Air cleaner gasket

Note: Contact Generac for quantity required

$

$

Currently unavailable

539

Briggs & Stratton 80002

221372 -- Friction clip

Note: Contact Generac for quantity required

$

$

Currently unavailable

601

Briggs & Stratton 70162

93053 -- Hose clamp

Note: Contact Generac for quantity required

$

$

Currently unavailable

634A

Briggs & Stratton 80004

805557 -- Throttle collar

Note: Contact Generac for quantity required

$

$

Currently unavailable

634B

Briggs & Stratton 80005

805543 -- Choke collar

Note: Contact Generac for quantity required

$

$

Currently unavailable

642

Briggs & Stratton 86447

807862 -- Air cleaner cover assm.

Note: Contact Generac for quantity required

$

$

Currently unavailable

643

Briggs & Stratton 86448

805631 -- Air cleaner plate

Note: Contact Generac for quantity required

$

$

Currently unavailable

688

Briggs & Stratton 80006

805485 -- Spring cap

Note: Contact Generac for quantity required

$

$

Currently unavailable

819

Briggs & Stratton 68572

805057 -- Screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

862A

Briggs & Stratton 86449

807796 -- Air cleaner bracket

Note: Contact Generac for quantity required

$

$

Currently unavailable

955

Briggs & Stratton 80008

807723 -- Jet plug

Note: Contact Generac for quantity required

$

$

Currently unavailable

987

Briggs & Stratton 80010

805544 -- Shaft seal

Note: Contact Generac for quantity required

$

$

Currently unavailable

1004A

Briggs & Stratton 86450

805632 -- Air inlet tube

Note: Contact Generac for quantity required

$

$

Currently unavailable

1014A

Briggs & Stratton 86451

807797 -- Breather deflector

Note: Contact Generac for quantity required

$

$

Currently unavailable

Briggs & Stratton 72528

807640 - Gasket Set

Note: Contact Generac for quantity required Includes items 51, 52. The numbers included in DESCRIPTION refer to the engine manufacturer's part numbers.

$

$

Currently unavailable

Briggs & Stratton 79272

807726 - Carburetor Overhaul Kit

Note: Contact Generac for quantity required Includes items 102, 104, 116C, 117, 118, 634A, 634B, 987. The numbers included in DESCRIPTION refer to the engine manufacturer's part numbers.

$

$

Currently unavailable
