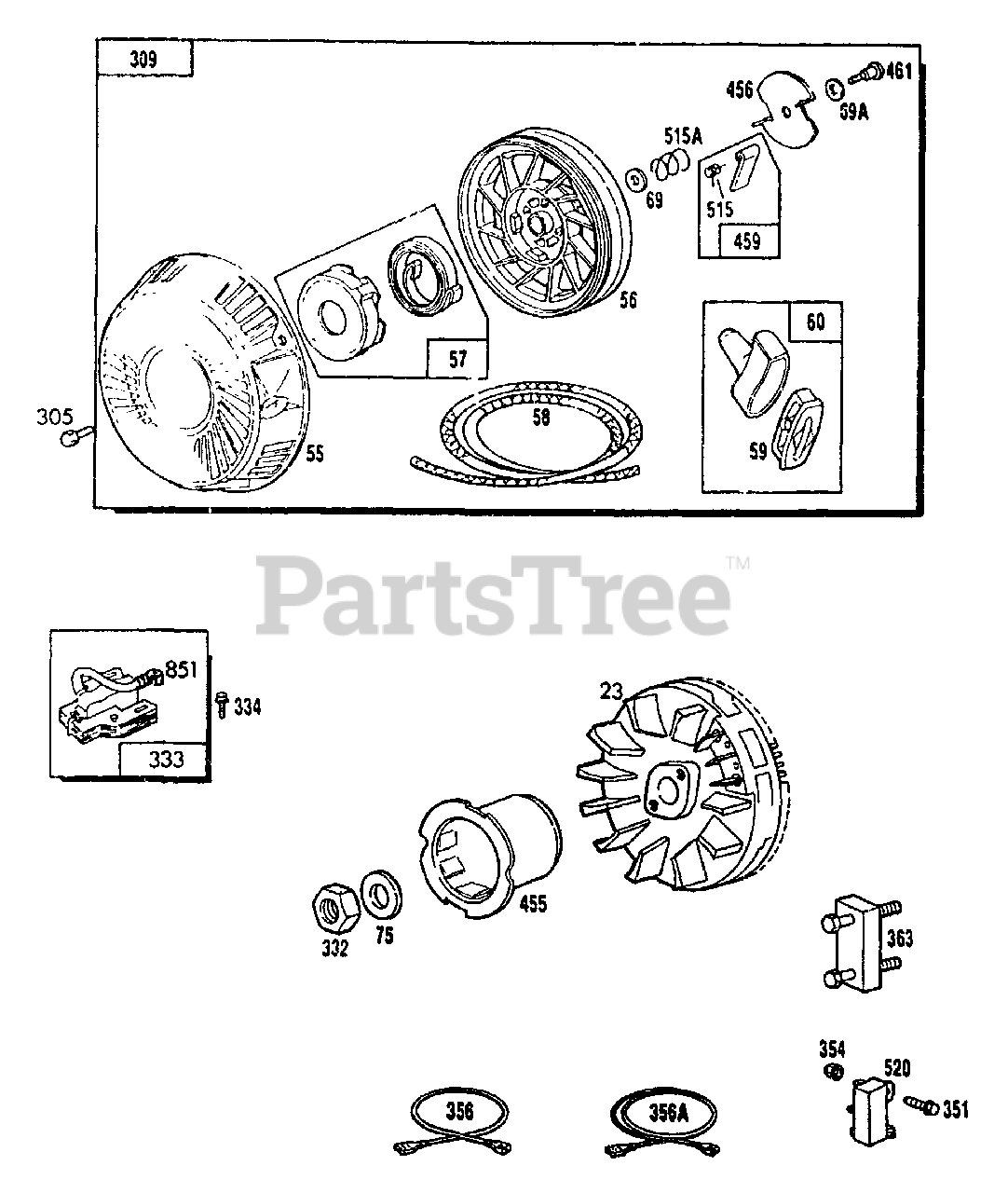

580.327073 (9289-1) - Craftsman 8,000 Watt Portable Generator Rewind Starter And Magneto Flywheel And Ring Gear Assy. Parts Diagram

8,000 Watt Portable Generator

Rewind Starter And Magneto Flywheel And Ring Gear Assy. Parts Diagram

  • Title

23

Briggs & Stratton 70166

807531 -- Magneto flywheel & ring gear assembly

Note: Contact Generac for quantity required

$

$

Currently unavailable

55

Briggs & Stratton 79252

492193 -- Starter housing

Note: Contact Generac for quantity required

$

$

Currently unavailable

56

Briggs & Stratton 79253

280918 -- Rewind starter pulley

Note: Contact Generac for quantity required

$

$

Currently unavailable

57

Briggs & Stratton 79254

492194 -- Rewind starter spring

Note: Contact Generac for quantity required

$

$

Currently unavailable

58

Briggs & Stratton 79255

66894 -- Rope starter - cut to 69-1/2"

Note: Contact Generac for quantity required

$

$

Currently unavailable

59

Briggs & Stratton 79256

490653 -- Starter handle Insert

Note: Contact Generac for quantity required

$

$

Currently unavailable

60

Briggs & Stratton 79257

490652 -- Rewind starter handle

Note: Contact Generac for quantity required

$

$

Currently unavailable

69

Briggs & Stratton 79258

94464 -- Pulley washer

Note: Contact Generac for quantity required

$

$

Currently unavailable

69A

Briggs & Stratton 79259

94462 -- Washer retainer

Note: Contact Generac for quantity required

$

$

Currently unavailable

75

Briggs & Stratton 67198N

805007 -- Spring washer

Note: Contact Generac for quantity required

$

$

Currently unavailable

305

Briggs & Stratton 66886

805406 -- Screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

309

UNKNOWN

$

$

Not available

332

Briggs & Stratton 67890

805021 -- Hex nut

Note: Contact Generac for quantity required

$

$

Not available

333

Briggs & Stratton 67891

492341 -- Magneto armature

Note: Contact Generac for quantity required

$

$

Currently unavailable

334

UNKNOWN

$

$

Not available

351

Briggs & Stratton 70166

805169 -- Hex head screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

354

Briggs & Stratton 79289

805496 -- Nylock nut

Note: Contact Generac for quantity required

$

$

Currently unavailable

356

Briggs & Stratton 79290

807594 -- Ground wire (cyl. #1)

Note: Contact Generac for quantity required

$

$

Not available

356A

Briggs & Stratton 79291

807593 -- Ground wire (cyl. #2)
(Superseded to 703355)

Note: Contact Generac for quantity required

$3.99

$

In Stock, Qty 14

0

363

Briggs & Stratton 79293

19203 -- Flywheel puller

Note: Contact Generac for quantity required

$

$

Currently unavailable

455

Briggs & Stratton 70198A

805153 -- Starter hub

Note: Contact Generac for quantity required

$

$

Currently unavailable

456

Briggs & Stratton 79293

224228 -- Retainer

Note: Contact Generac for quantity required

$

$

Currently unavailable

459

Briggs & Stratton 79294

492341 -- Starter dog
(Superseded to 7079294YP)

Note: Contact Generac for quantity required

$2.99

$

In Stock, only 1 left!

0

461

Briggs & Stratton 79295

94463 -- Retainer screw
(Superseded to 7079295YP)

Note: Contact Generac for quantity required

$3.49

$

Usually ships in 2-12 days

0

515

Briggs & Stratton 79298

262565 -- Dog spring

Note: Contact Generac for quantity required

$

$

Not available

515A

Briggs & Stratton 79299

262564 -- Torsion spring

Note: Contact Generac for quantity required

$

$

Currently unavailable

520

Briggs & Stratton 80000

807527 -- Ground terminal

Note: Contact Generac for quantity required

$

$

Currently unavailable

851

Briggs & Stratton 75272

493880 -- Ignition cable terminal
(Superseded to 7075272YP)

Note: Contact Generac for quantity required

$39.99

$

Usually ships in 2-12 days

0
