580.327073 (9289-1) - Craftsman 8,000 Watt Portable Generator Control Panel No. 82059 Parts Diagram

8,000 Watt Portable Generator

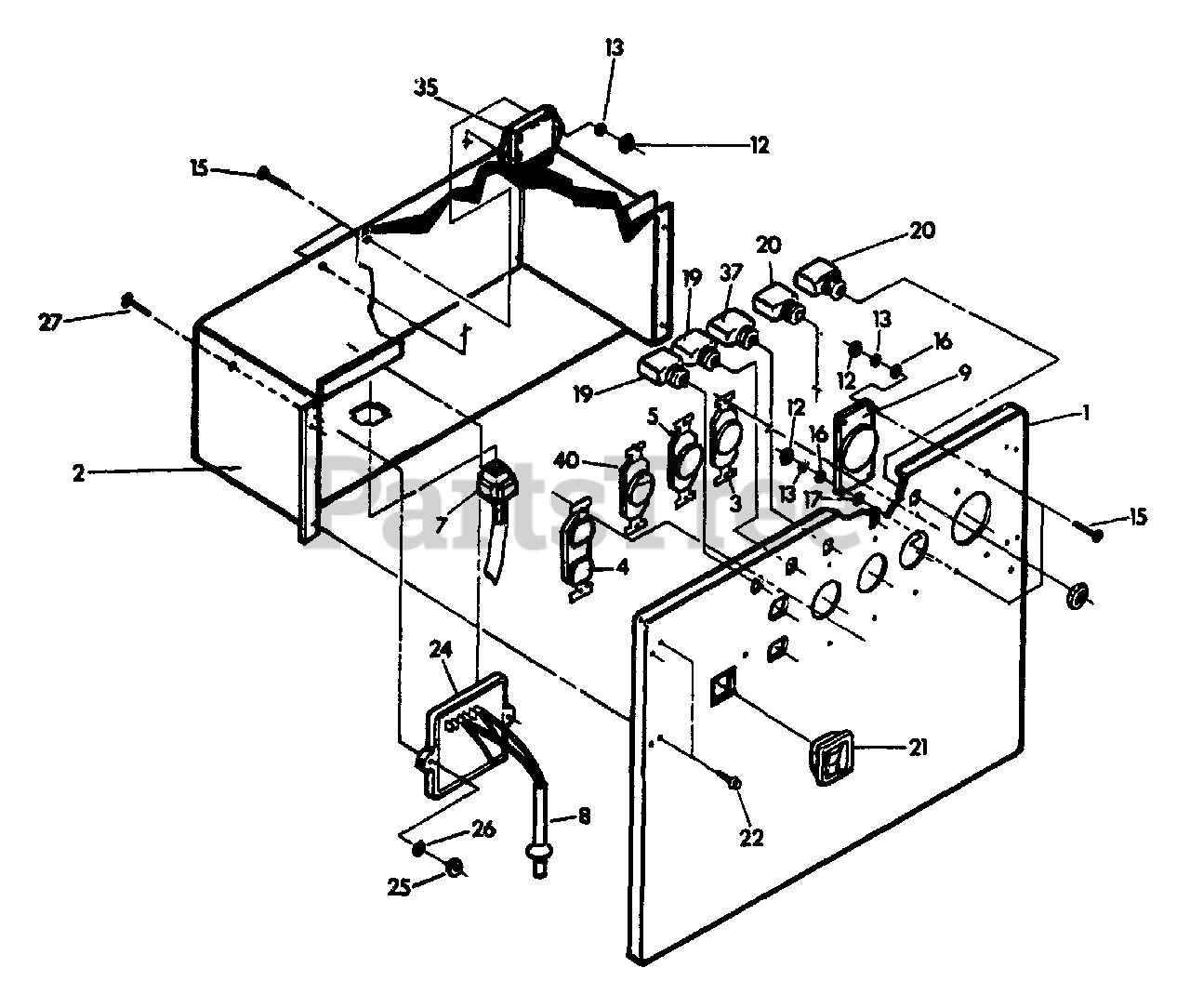

Control Panel No. 82059 Parts Diagram

  • Title
1

Briggs & Stratton 79720

CONTROL PANEL

$

$

Currently unavailable

2

Briggs & Stratton 79223

CONTROL PANEL COVER

$

$

Not available

3

Briggs & Stratton 43437

120/240 VOLT, 30 AMP TWISTLOCK OUTLET

$

$

Not available

4

Briggs & Stratton 63025

120 VOLT, 15 AMP DUPLEX OUTLET
(Superseded to 63025GS)

$12.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 68868

120 VOLT, 30 AMP TWISTLOCK OUTLET
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

$

$

Currently unavailable

8

Briggs & Stratton SRV77244A

FIELD BOOST ASSEMBLY

$

$

Not available

9

Briggs & Stratton 74191

250 VOLT, 50 AMP RECEPTACLE
(Superseded to 74191GS)

$26.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 51715

M4-0.7 HEX NUT
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 22264

NO. 8 LOCK WASHER

$

$

Not available

15

Briggs & Stratton 75475

M4-0.7 x 10mm SCREW

$

$

Not available

16

Briggs & Stratton 43180

M4 FLAT WASHER
(Superseded to 5043180B)

$54.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 23365

M4 (shakeproof) WASHER
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 75207D

15 AMP CIRCUIT BREAKER
(Superseded to 75207DGS)

$13.99

$

Usually ships in 2-12 days

0

20

75207A

30 AMP CIRCUIT BREAKER

$

$

Not available

21

Briggs & Stratton 66817

ENGINE CONTROL SWITCH
(Superseded to 66817GS)

$39.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 63036

No. 8-18 x 1/4" Screw
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 81918

A-C VOLTAGE REGULATOR

$

$

Currently unavailable

25

Briggs & Stratton 22158

No. 10-32 HEX NUT
(Superseded to 5022158)

$30.99

$

In Stock, Qty 20+

0

26

Briggs & Stratton 51716

M5-0.8 HEX NUT
(Superseded to 51716GS)

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 79224

M5-0.8 x 30mm SCREW

$

$

Not available

35

Briggs & Stratton 77314

THERMAL RELAY

$

$

Not available

37

Briggs & Stratton 75207

20 AMP CIRCUIT BREAKER
(Superseded to 209872GS)

$9.99

$

In Stock, Qty 12

0

39

UNKNOWN

$

$

Not available

40

Briggs & Stratton 74190

120 VOLT, 20 AMP TWISTLOCK OUTLET

$

$

Not available
