580.327072 (9289-0) - Craftsman 8,000 Watt Portable Generator Control Panel No. 80833 Parts Diagram

8,000 Watt Portable Generator

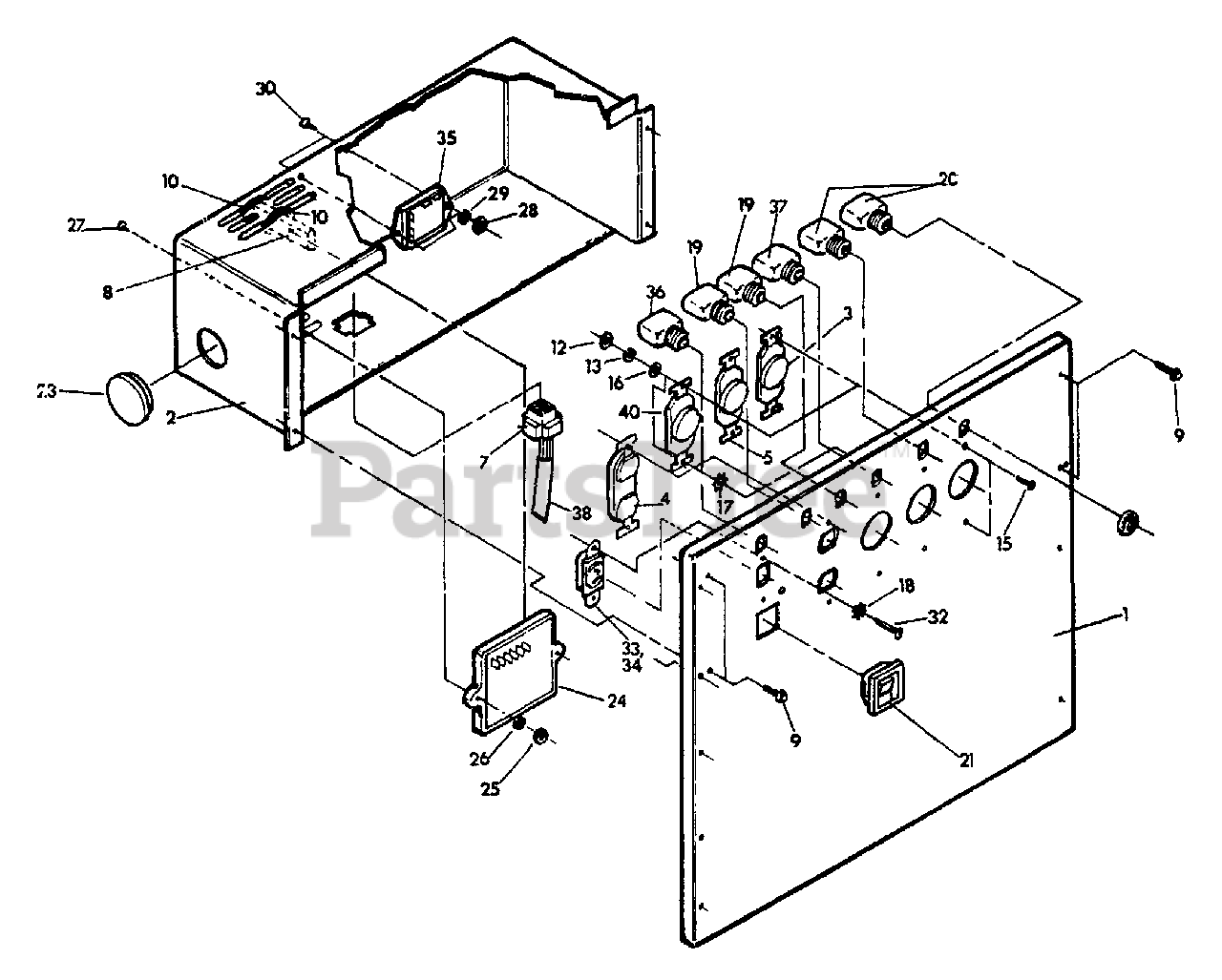

Control Panel No. 80833 Parts Diagram

  • Title

1

Briggs & Stratton 77346

8 kW CONTROL PANEL
(Superseded to 7077346YP)

$74.99

$

In Stock, only 1 left!

0

2

Briggs & Stratton 77315

CONTROL PANEL COVER

$

$

Currently unavailable

3

Briggs & Stratton 43437

120/240 VOLT, 30 AMP TWISTLOCK OUTLET

$

$

Not available

4

Briggs & Stratton 63025

120 VOLT, 15 AMP DUPLEX
(Superseded to 63025GS)

$12.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 68868

120 VOLT, 30 AMP TWISTLOCK OUTLET
(Superseded to 705932)

$37.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 63993

CONNECTOR

$

$

Currently unavailable

8

Briggs & Stratton 77244

FIELD BOOST ASSEMBLY

$

$

Currently unavailable

9

Briggs & Stratton 63036

No. 8-18 x 1/4" SCREW
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 29333A

TIE-WRAP
(Superseded to 29333AGS)

$4.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 51715

M4 - 0.7 HEX NUT
(Superseded to 51715GS)

$2.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 22264

No. 8 LOCK WASHER

$

$

Not available

15

Briggs & Stratton 75475

No. 8 LOCK WASHER

$

$

Not available

16

Briggs & Stratton 38150

M4 - 0.7 X 10mm SCREW
(Superseded to 38150GS)

$2.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 23365

No. 8 FLAT WASHER
(Superseded to 5023365)

$462.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 23364

No. 8 (shakeproof) WASHER
(Superseded to 5023364)

$225.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 75207D

No. 6 (shakeproof) WASHER
(Superseded to 75207DGS)

$13.99

$

Usually ships in 2-12 days

0

20

75207A

30 AMP CIRCUIT BREAKER

$

$

Not available

21

Briggs & Stratton 66817

ENGINE CONTROL SWITCH
(Superseded to 66817GS)

$39.99

$

Usually ships in 2-12 days

0

23

Briggs & Stratton 58221

1-3/4" dia. PLUG

$

$

Not available

24

Briggs & Stratton 74074

A-C VOLTAGE REGULATOR

$

$

Currently unavailable

25

Briggs & Stratton 22158

No. 10-32 HEX NUT
(Superseded to 5022158)

$30.99

$

In Stock, Qty 20+

0

26

Briggs & Stratton 22152

No. 10 LOCK WASHER
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 33534

No. 10-32 x 1-1/8" SCREW

$

$

Currently unavailable

28

Briggs & Stratton 22188

No. 6-32 HEX NUT

$

$

Currently unavailable

29

Briggs & Stratton 22155

No. 6 LOCK WASHER
(Superseded to 5022155)

$130.99

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 36902

No. 6-32 x 1/2" SCREW
(Superseded to 36902GS)

$3.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 43181

M3 - 0.5 X 10mm SCREW
(Superseded to 43181GS)

$3.49

$

Usually ships in 2-12 days

0

33

Briggs & Stratton 66821

BATTERY CHARGE OUTLET
(Superseded to 66821GS)

$21.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 66822

OUTLET RETAINER
(Superseded to 66822GS)

Note: (66822 Is Screw In Replacement. If Customer Needs Snap Type Must Order 90418.)

$11.99

$

Usually ships in 2-12 days

0

35

Briggs & Stratton 77314

THERMAL RELAY

$

$

Not available

36

Briggs & Stratton 75207B

10 AMP CIRCUIT BREAKER
(Superseded to 75207BGS)

$12.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 75207

20 AMP CIRCUIT BREAKER
(Superseded to 209872GS)

$9.99

$

In Stock, Qty 12

0

38

Briggs & Stratton 22661Y

650mm SLEEVING

$

$

Currently unavailable

40

Briggs & Stratton 74190

120 VOLT, 20 AMP TWISTLOCK OUTLET

$

$

Not available
