580.327072 (9162-7) - Craftsman 8,000 Watt Portable Generator Starter Repair Parts Parts Diagram

8,000 Watt Portable Generator

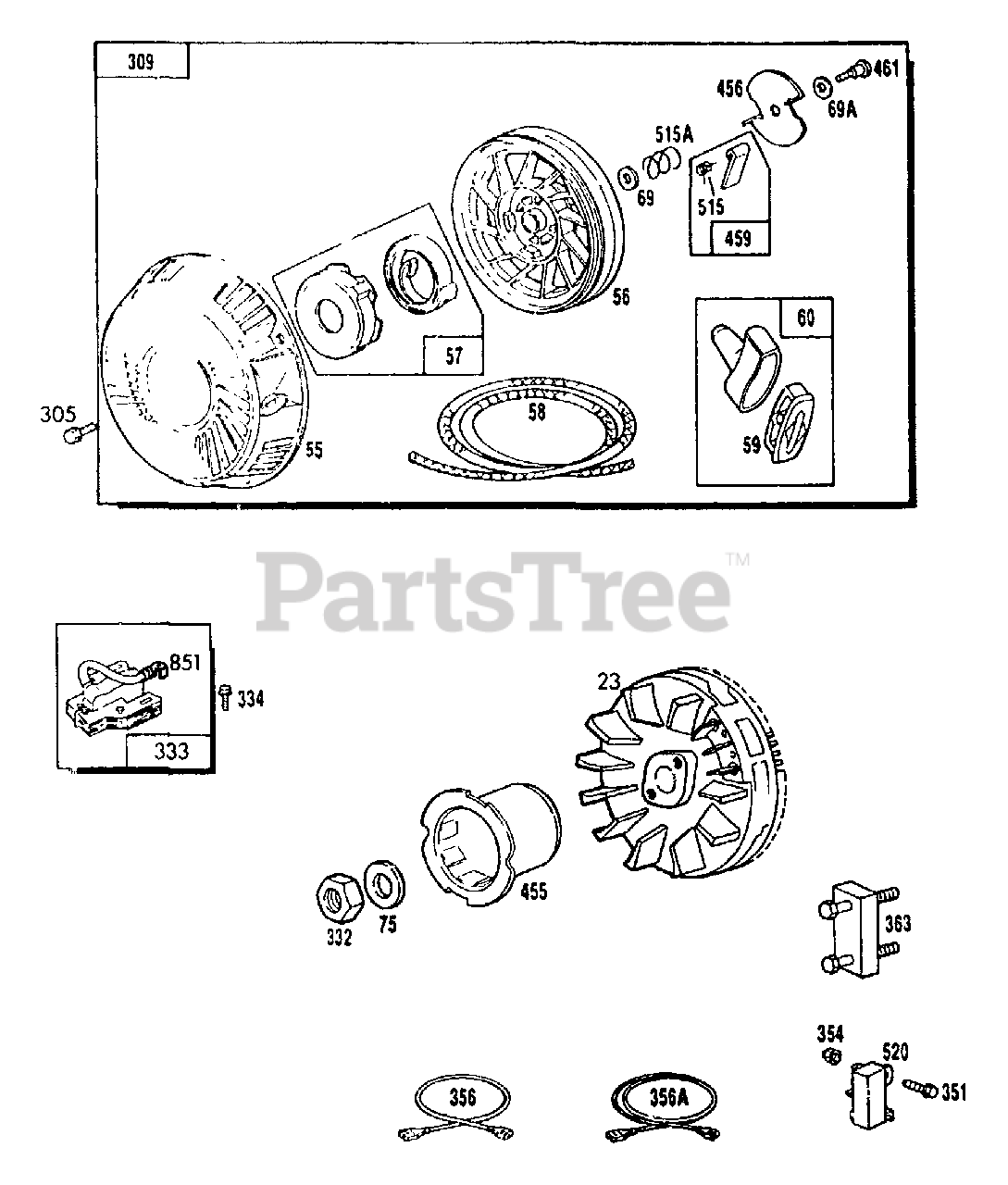

Starter Repair Parts Parts Diagram

  • Title

23

Briggs & Stratton 70166

807531 -- Magneto flywheel & ring gear assembly

Note: Contact Generac for quantity required

$

$

Currently unavailable

55

Briggs & Stratton 79252

492193 -- Starter housing

Note: Contact Generac for quantity required

$

$

Currently unavailable

56

Briggs & Stratton 79253

280918 -- Rewind starter pulley

Note: Contact Generac for quantity required

$

$

Currently unavailable

57

Briggs & Stratton 79254

492194 -- Rewind starter spring

Note: Contact Generac for quantity required

$

$

Currently unavailable

58

Briggs & Stratton 79255

66894 -- Rope starter - cut to 69-1/2"

Note: Contact Generac for quantity required

$

$

Currently unavailable

59

Briggs & Stratton 79256

490653 -- Starter handle insert

Note: Contact Generac for quantity required

$

$

Currently unavailable

60

Briggs & Stratton 79257

490652 -- Rewind starter handle

Note: Contact Generac for quantity required

$

$

Currently unavailable

69

Briggs & Stratton 79258

94464 -- Pulley washer

Note: Contact Generac for quantity required

$

$

Currently unavailable

69A

Briggs & Stratton 79259

94462 -- Washer retainer

Note: Contact Generac for quantity required

$

$

Currently unavailable

75

Briggs & Stratton 67198N

805007 -- Spring washer

Note: Contact Generac for quantity required

$

$

Currently unavailable

305

Briggs & Stratton 66886

805406 -- Screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

309

UNKNOWN

$

$

Not available

332

Briggs & Stratton 67890

805021 -- Hex nut

$

$

Not available

333

Briggs & Stratton 67891

492341 -- Magneto armature

Note: Contact Generac for quantity required

$

$

Currently unavailable

334

UNKNOWN

$

$

Not available

351

Briggs & Stratton 70166

805169 -- Hex head screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

354

Briggs & Stratton 79289

805496 -- Nylock nut

Note: Contact Generac for quantity required

$

$

Currently unavailable

356

Briggs & Stratton 79290

807594 -- Ground wire (cyl. #1)

Note: Contact Generac for quantity required

$

$

Not available

356A

Briggs & Stratton 79291

807593 -- Ground wire (cyl. #2)
(Superseded to 703355)

Note: Contact Generac for quantity required

$3.99

$

In Stock, Qty 14

0

363

Briggs & Stratton 79293

19203 -- Flywheel puller

Note: Contact Generac for quantity required

$

$

Currently unavailable

455

Briggs & Stratton 70198A

805153 -- Starter hub

Note: Contact Generac for quantity required

$

$

Currently unavailable

456

Briggs & Stratton 79293

224228 -- Retainer

$

$

Currently unavailable

459

Briggs & Stratton 79294

492341 -- Starter dog
(Superseded to 7079294YP)

Note: Contact Generac for quantity required

$2.99

$

In Stock, only 1 left!

0

461

Briggs & Stratton 79295

94463 -- Retainer screw
(Superseded to 7079295YP)

Note: Contact Generac for quantity required

$3.49

$

Usually ships in 2-12 days

0

515

Briggs & Stratton 79298

262565 -- Dog spring

Note: Contact Generac for quantity required

$

$

Not available

515A

Briggs & Stratton 79299

262564 -- Torsion spring

Note: Contact Generac for quantity required

$

$

Currently unavailable

520

Briggs & Stratton 80000

807527 -- Ground terminal

Note: Contact Generac for quantity required

$

$

Currently unavailable

851

Briggs & Stratton 75272

493880 -- Ignition cable terminal
(Superseded to 7075272YP)

Note: Contact Generac for quantity required

$39.99

$

Usually ships in 2-12 days

0
