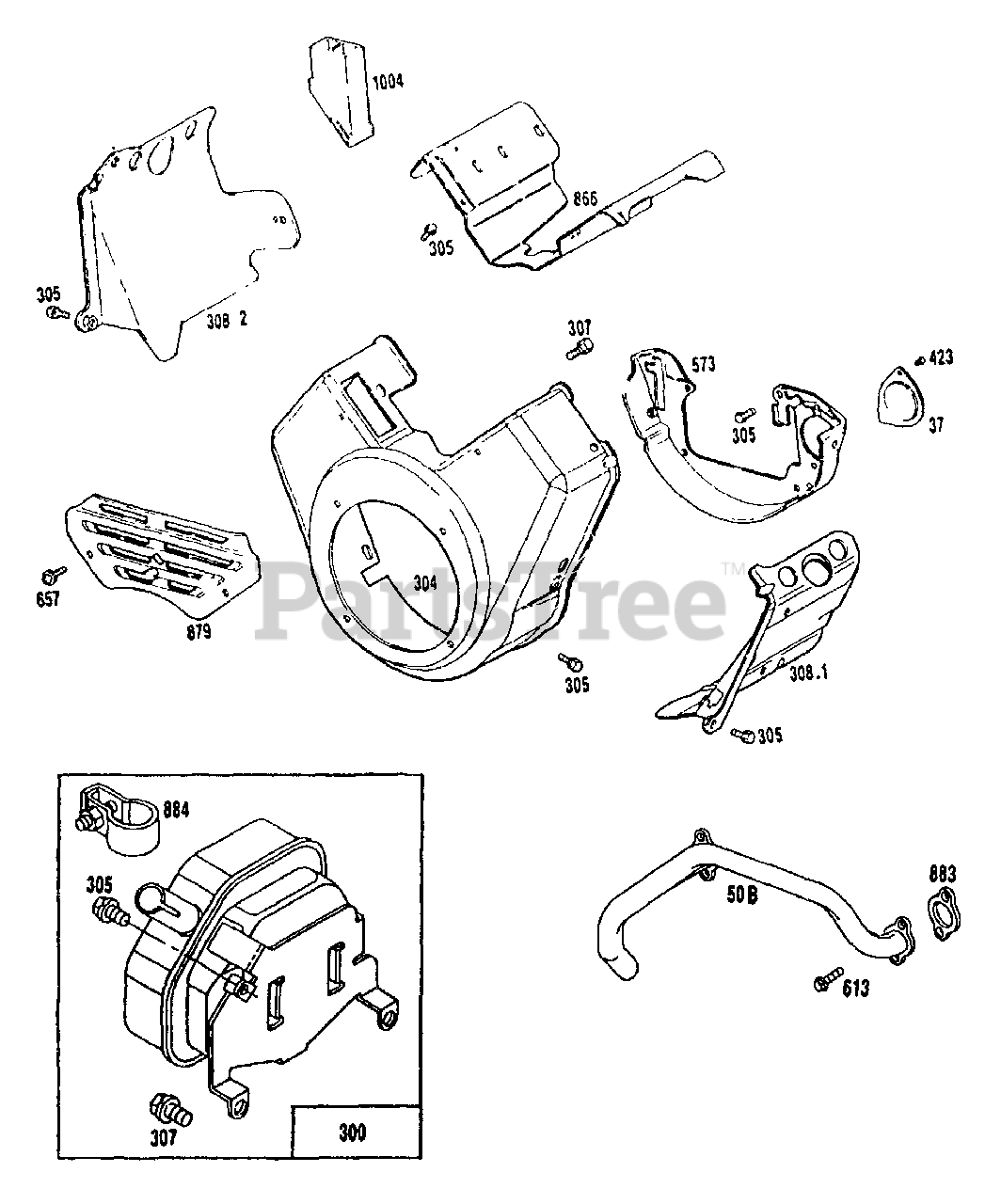

580.327072 (9162-7) - Craftsman 8,000 Watt Portable Generator Exhaust Repair Parts Parts Diagram

8,000 Watt Portable Generator

Exhaust Repair Parts Parts Diagram

  • Title

37

Briggs & Stratton 70149

805504 -- Starter cover

Note: Contact Generac for quantity required

$

$

Currently unavailable

50B

Briggs & Stratton 72314

805378 -- Exhaust Manifold

Note: Contact Generac for quantity required

$

$

Currently unavailable

300

Briggs & Stratton 78838

807559 -- Exhaust Muffler

Note: Contact Generac for quantity required

$

$

Not available

304

Briggs & Stratton 69369

807654 -- Blower housing

Note: Contact Generac for quantity required

$

$

Currently unavailable

305

Briggs & Stratton 66886

805406 -- Screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

307

Briggs & Stratton 67898

805025 -- Screw

Note: Contact Generac for quantity required

$

$

Not available

308.1

Briggs & Stratton 69396

807648 -- Air guide cover (cyl. #1)

Note: Contact Generac for quantity required

$

$

Currently unavailable

308.2

Briggs & Stratton 69364

807649 -- Air guide cover (cyl. #1)

Note: Contact Generac for quantity required

$

$

Currently unavailable

423

Briggs & Stratton 66484

805260 -- Screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

573

Briggs & Stratton 69368

807655 -- Back plate assembly

Note: Contact Generac for quantity required

$

$

Currently unavailable

613

Briggs & Stratton 69397

805158 -- Screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

657

Briggs & Stratton 67820

805009 -- Screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

866

Briggs & Stratton 72307

807652 -- Air guide valley cover

Note: Contact Generac for quantity required

$

$

Currently unavailable

879

Briggs & Stratton 72304

805369 -- Carburetor cover

Note: Contact Generac for quantity required

$

$

Currently unavailable

883

Briggs & Stratton 67897

805024 -- Exhaust manifold gasket
(Superseded to 691613)

Note: Contact Generac for quantity required

$5.49

$

Usually ships in 2-12 days

0

884

Briggs & Stratton 74807

807595 -- Muffler clamp

Note: Contact Generac for quantity required

$

$

Currently unavailable

1004

Briggs & Stratton 70597

805363 -- Air inlet tube

Note: Contact Generac for quantity required

$

$

Currently unavailable
