580.327072 (9162-7) - Craftsman 8,000 Watt Portable Generator Cradle Repair Parts No. 80963 Parts Diagram

8,000 Watt Portable Generator

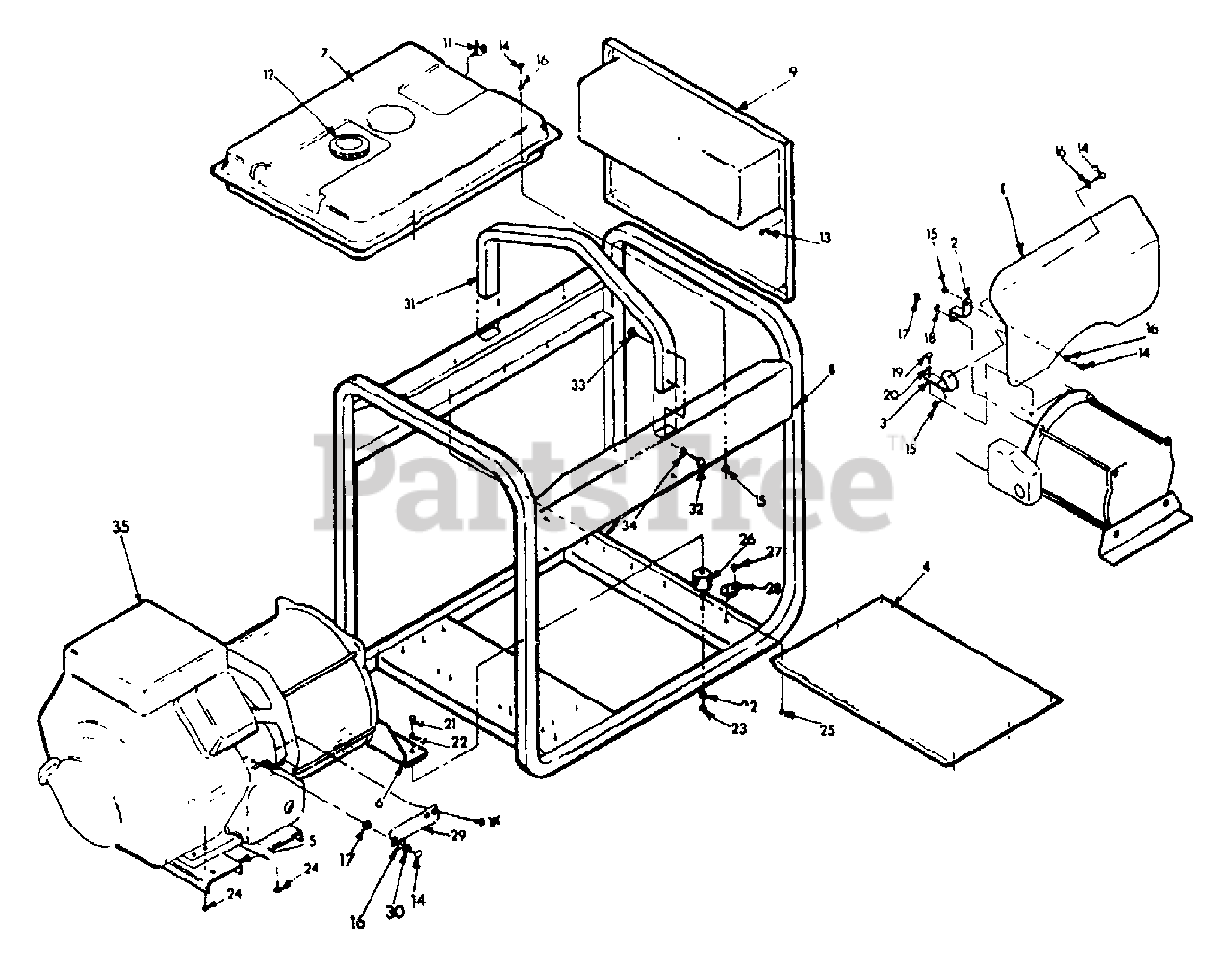

Cradle Repair Parts No. 80963 Parts Diagram

  • Title

1

Briggs & Stratton 77318

Heat Deflecting Shield

$

$

Currently unavailable

2

Briggs & Stratton 77319

Heat Shield Bracket

$

$

Currently unavailable

3

Briggs & Stratton 77306

Heat Shield Bracket

$

$

Currently unavailable

4

Briggs & Stratton 77316

Heat Shield (gas tank)

$

$

Currently unavailable

5

Briggs & Stratton 77304

Engine Support

$

$

Not available

6

Briggs & Stratton 77303

Alternator, Support

$

$

Currently unavailable

7

Briggs & Stratton 75465

Fuel Tank
(Superseded to 7075465YP)

$15.99

$

In Stock, only 1 left!

0

8

Briggs & Stratton 77300

V-Twin Cradle

$

$

Not available

9

Briggs & Stratton 77594C

Control Panel Cover Assembly

$

$

Currently unavailable

11

Briggs & Stratton 75938

Fuel Shut-Off Valve

$

$

Currently unavailable

12

Briggs & Stratton 76272

Fuel Cap Gauge

$

$

Not available

13

Briggs & Stratton 75494

No. 10-24 x 5/8" Screw

$

$

Not available

14

Briggs & Stratton 42568

M6-1.0 x 20mm Capscrew
(Superseded to 42568GS)

$3.99

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 52857

M6-1.0 Hex Lock Nut
(Superseded to 52857GS)

$3.49

$

Usually ships in 2-12 days

0

16

22473

1/4" Flat Washer

$

$

Not available

17

Briggs & Stratton 24114

5/16"-24 Hex Nut

$

$

Not available

18

UNKNOWN

$

$

Not available

19

Briggs & Stratton 49815

M5-0.8 x 16mm Capscrew
(Superseded to 49815GS)

$3.49

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 22152

No. 10 Lock Washer
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 23152

3/8"-16 x 3/4" Capscrew
(Superseded to 5101614)

$450.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 22237

3/8" Lock Washer

$

$

Not available

23

Briggs & Stratton 22241

3/8"-16 Hex Nut

$

$

Not available

24

Briggs & Stratton 75246

3/8"-16 x 1-1/4" Screw
(Superseded to 75246GS)

$3.99

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 63036

No. 8-18 x 1/4" Screw
(Superseded to 63036GS)

$2.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 35097

Vibration Mount
(Superseded to 35097GS)

$16.99

$

In Stock, only 2 left!

0

27

Briggs & Stratton 56892

No. 10-24 x 3/8" Screw
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 25433

Grounding Lug

$

$

Not available

29

Briggs & Stratton 78807

Wire Shield

$

$

Currently unavailable

30

Briggs & Stratton 22097

M6 Lock Washer
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 77301

Lifting Bar

$

$

Currently unavailable

32

Briggs & Stratton 39287

M8-1.25 x 45mm Capscrew
(Superseded to 39287GS)

$3.99

$

In Stock, only 2 left!

0

33

Briggs & Stratton 52858

M8-1.25 Hex Lock Nut
(Superseded to 52858GS)

Note: Contact Generac for quantity required

$3.99

$

In Stock, only 2 left!

0

34

Briggs & Stratton 22145

M8 Flat washer

Note: Contact Generac for quantity required

$

$

Not available

35

UNKNOWN

$

$

Not available
