580.327071 (9162-1) - Craftsman 8,000 Watt Portable Generator Generator Repair Parts No. 78805 Parts Diagram

8,000 Watt Portable Generator

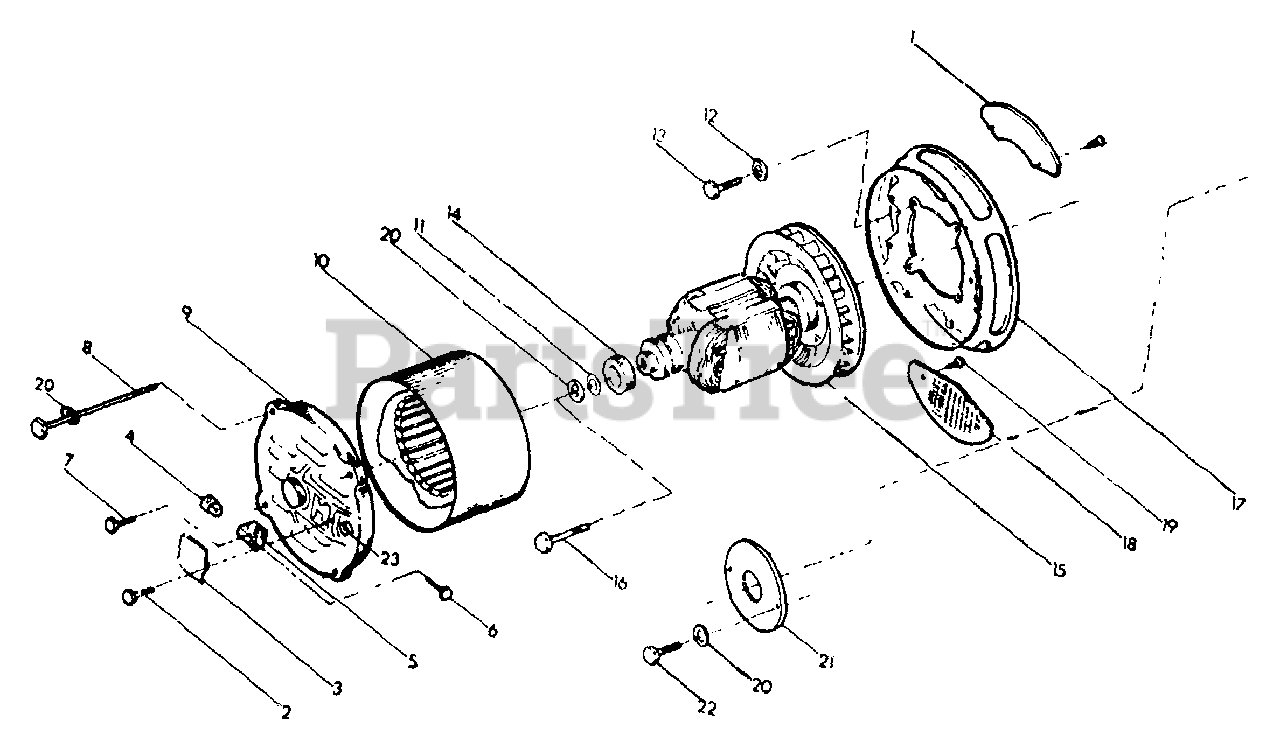

Generator Repair Parts No. 78805 Parts Diagram

  • Title
1

$

$

Not available

2

Briggs & Stratton 26902

SCREW, NO. 8-32 x 1/4"

$

$

Not available

3

Briggs & Stratton 43844

COVER, INSPECTION
(Superseded to 7043844YP)

$34.99

$

In Stock, Qty 20+

0

4

Briggs & Stratton A24044A

BRUSH
(Superseded to A24044AGS)

$11.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 23877D

HOLDER, BRUSH
(Superseded to 23877DGS)

$11.99

$

Usually ships in 2-12 days

0

6

Briggs & Stratton 25105

SCREW-NO. 6-32 x 1/4"
(Superseded to 25105GS)

$1.49

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 24488

SCREW-NO. 8-32 x 5/8"

$

$

Currently unavailable

8

Briggs & Stratton 77324

CAPSCREW, HEX HEAD-5/16"-24 x 12.25

$

$

Not available

9

Briggs & Stratton 49410

CARRIER, REAR BEARING
(Superseded to 49410AGS)

$

$

Not available

10

Briggs & Stratton 77218

STATOR ASSEMBLY 8-KW
(Superseded to 77218GS)

$1365.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 77571

STATOR ASSEMBLY 6-KW

$

$

Currently unavailable

11

Briggs & Stratton 50190

WASHER, FLAT-5/16"
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 22237

WASHERLOCK-3/8"

$

$

Not available

13

Briggs & Stratton 23152

CAPSCREW, HEX HEAD-3/8"-16 x 3/4"
(Superseded to 5101614)

$450.99

$

Usually ships in 2-12 days

0

$

$

Not available

15

Briggs & Stratton 77321

ROTOR ASSEMBLY 8-KW

$

$

Not available

15

Briggs & Stratton 77572

ROTOR ASSEMBLY 6-KW

$

$

Not available

16

Briggs & Stratton 39654

CAPSCREW, HEX HEAD-5/16"-24 x 9.50"

$

$

Currently unavailable

17

Briggs & Stratton 78806

CASTING, ADAPTER
(Superseded to BB2700GS)

$182.99

$

Usually ships in 2-12 days

0

18

$

$

Not available

19

Briggs & Stratton 46852

SCREW, NO. 10-32 x 1/4"

$

$

Not available

20

Briggs & Stratton 22129

WASHER, LOCK-5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

21

Briggs & Stratton 55277

GUARD, CENTER

$

$

Not available

22

Briggs & Stratton 22336

CAPSCREW, HEX HEAD-5/16"-24 x 3/4"

$

$

Not available

23

Briggs & Stratton 38057

GROMMET, RUBBER
(Superseded to 38057GS)

$3.49

$

Usually ships in 2-12 days

0
