580.327071 (9162-1) - Craftsman 8,000 Watt Portable Generator Engine Repair Parts Parts Diagram

8,000 Watt Portable Generator

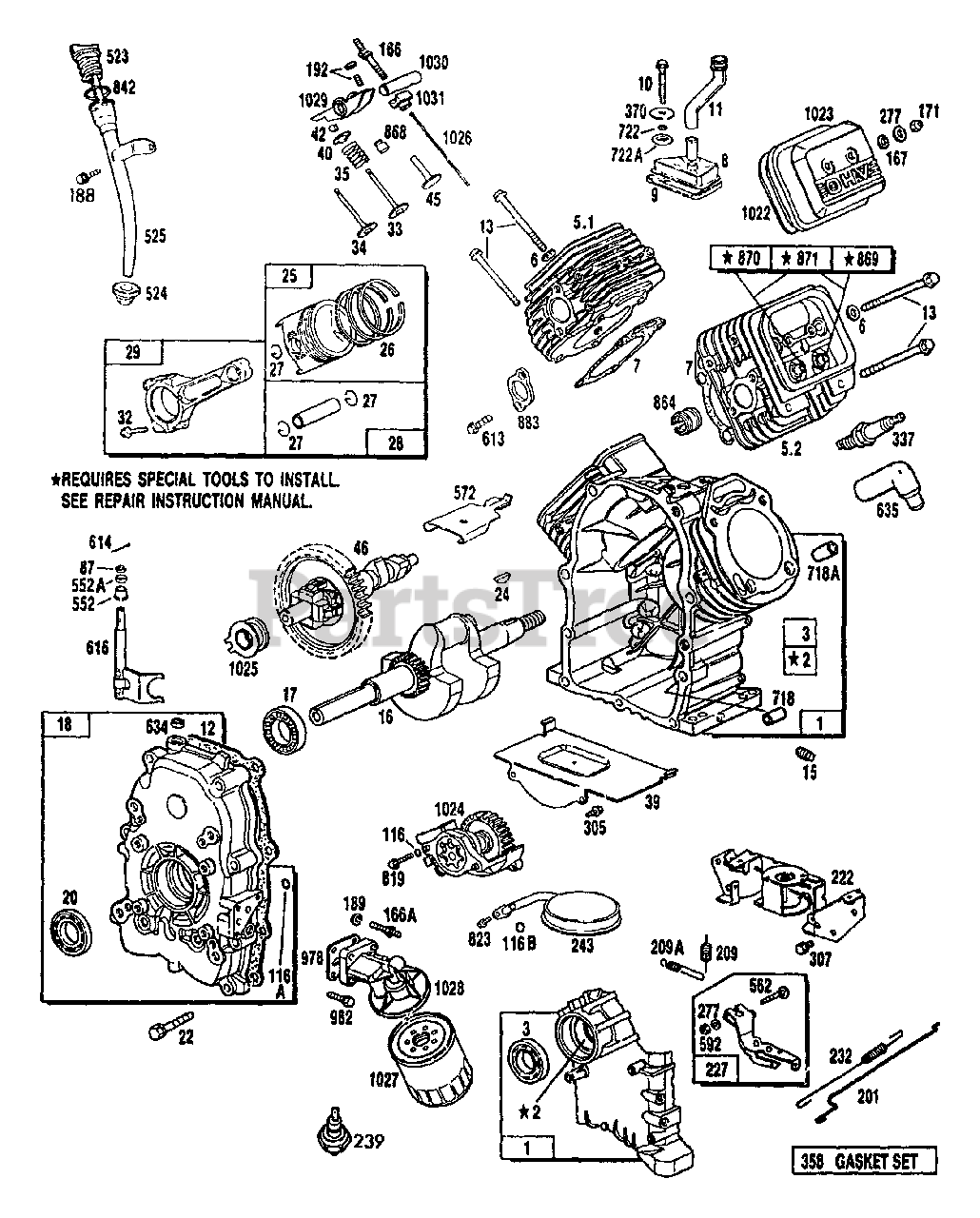

Engine Repair Parts Parts Diagram

  • Title

1

Briggs & Stratton 69376

807521 -- Cylinder assembly

Note: Contact Generac for quantity required

$

$

Currently unavailable

2

Briggs & Stratton 69333

805107 -- Cylinder bearing

Note: Contact Generac for quantity required

$

$

Currently unavailable

3

Briggs & Stratton 67805

805101 -- Oil seal

Note: Contact Generac for quantity required

$

$

Currently unavailable

5.1

Briggs & Stratton 69311

807508 -- Cylinder head (cyl. #1)

Note: Contact Generac for quantity required

$

$

Not available

5.2

Briggs & Stratton 69312

807510 -- Cylinder head (cyl. #2)

Note: Contact Generac for quantity required

$

$

Currently unavailable

6

Briggs & Stratton 70169

805193 -- Cylinder head washer

Note: Included in Valve Overhaul Kit, Part No. #807668; Contact Generac for quantity required

$

$

Currently unavailable

7

Briggs & Stratton 69332

805111 -- Cylinder head gasket

Note: Included in Valve Overhaul Kit, Part No. #807668; Contact Generac for quantity required

$

$

Currently unavailable

8

Briggs & Stratton 72301

807553 -- Breather assembly

Note: Contact Generac for quantity required

$

$

Currently unavailable

9

Briggs & Stratton 72315

805379 -- Breather gasket

Note: Included in Gasket Set, Part #807640; Inlcuded in breather gasket Set, Part No. #807640; Contact Generac for quantity required

$

$

Currently unavailable

10

Briggs & Stratton 70190

805194 -- Screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

11

Briggs & Stratton 70596

805362 -- Breather tube

Note: Contact Generac for quantity required

$

$

Currently unavailable

12

Briggs & Stratton 69336

805112 -- Crankcase cover gasket

Note: Included in Gasket Set, Part #807640; Contact Generac for quantity required

$

$

Not available

13

Briggs & Stratton 69325

805097 -- Cylinder head screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

15

Briggs & Stratton 67888

805048 -- Oil drain plug
(Superseded to 67888GS)

Note: Contact Generac for quantity required

$9.49

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 80014

807745 -- Crankshaft

Note: Contact Generac for quantity required

$

$

Currently unavailable

17

Briggs & Stratton 69315

805213 -- Ball bearing

Note: Contact Generac for quantity required

$

$

Currently unavailable

18

Briggs & Stratton 70540

807628 -- Crankcase cover assembly

Note: Contact Generac for quantity required

$

$

Currently unavailable

20

Briggs & Stratton 67924

805049 -- Oil seal

Note: Contact Generac for quantity required

$

$

Currently unavailable

22

Briggs & Stratton 67878

805017 -- Crankcase cover screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

24

Briggs & Stratton 67877

805016 -- Flywheel key

Note: Contact Generac for quantity required

$

$

Currently unavailable

25

Briggs & Stratton 75248

807619 -- Piston assembly

Note: Contact Generac for quantity required

$

$

Currently unavailable

26

Briggs & Stratton 75249

807620 -- Piston ring set

Note: Contact Generac for quantity required

$

$

Currently unavailable

27

Briggs & Stratton 69327

805099 -- Piston pin lock

Note: Contact Generac for quantity required

$

$

Currently unavailable

28

Briggs & Stratton 75250

807621 -- Piston pin assembly

Note: Contact Generac for quantity required

$

$

Currently unavailable

29

Briggs & Stratton 75251

807622 -- Connecting rod assembly

Note: Contact Generac for quantity required

$

$

Currently unavailable

32

Briggs & Stratton 72346

805395 -- Connecting rod screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

33

Briggs & Stratton 69316

805089 -- Exhaust valve

Note: Contact Generac for quantity required

$

$

Currently unavailable

34

Briggs & Stratton 69317

805090 -- Intake valve

Note: Contact Generac for quantity required

$

$

Not available

35

Briggs & Stratton 67816

805078 -- Valve spring

Note: Contact Generac for quantity required

$

$

Currently unavailable

39

Briggs & Stratton 70523

805300 -- Windage plate

Note: Contact Generac for quantity required

$

$

Currently unavailable

40

Briggs & Stratton 69320

805092 -- Valve spring retainer

Note: Contact Generac for quantity required

$

$

Currently unavailable

42

Briggs & Stratton 70513

805161 -- Valve retainer

Note: Contact Generac for quantity required

$

$

Currently unavailable

45

Briggs & Stratton 70584

805354 -- Valve tappet

Note: Contact Generac for quantity required

$

$

Currently unavailable

46

Briggs & Stratton 80016

807764 -- Cam gear -- 4WT

Note: Contact Generac for quantity required

$

$

Currently unavailable

87

Briggs & Stratton 68554

805054 -- Governor shaft seal

Note: Contact Generac for quantity required

$

$

Currently unavailable

116

Briggs & Stratton 68573

805058 -- O-ring (oil pump)

Note: Contact Generac for quantity required

$

$

Currently unavailable

116A

Briggs & Stratton 70506

805198 -- O-ring (crankcase cover)

Note: Included in Gasket Set, Part #807640; Included in Carburetor Overhaul Kit, Part No. #807726; Contact Generac for quantity required

$

$

Currently unavailable

116B

Briggs & Stratton 70541

805316 -- O-ring (pick-up tube)

Note: Included in Gasket Set, Part #807640; Contact Generac for quantity required

$

$

Currently unavailable

166

Briggs & Stratton 70567

805342 -- Rocker arm stud

Note: Contact Generac for quantity required

$

$

Currently unavailable

166A

Briggs & Stratton 70131

805073 -- Oil filter adapter stud

Note: Contact Generac for quantity required

$

$

Currently unavailable

171

Briggs & Stratton 67885

805019 -- Nut
(Superseded to 67885GS)

Note: Included in Valve Overhaul Kit, Part No. #807668; Contact Generac for quantity required

$6.99

$

In Stock, only 1 left!

0

187

Briggs & Stratton 47662AA

393815 -- Fuel hose

Note: Contact Generac for quantity required

$

$

Currently unavailable

188

Briggs & Stratton 39253

805247 -- Screw
(Superseded to 39253GS)

Note: Contact Generac for quantity required

$3.49

$

In Stock, Qty 6

0

189

Briggs & Stratton 22129

805449 -- Lockwasher
(Superseded to 22129GS)

Note: Contact Generac for quantity required

$2.99

$

In Stock, only 2 left!

0

192

Briggs & Stratton 75254

807623 -- Valve adjusting screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

201

Briggs & Stratton 74946

805480 -- Governor link
(Superseded to 7074946YP)

Note: Contact Generac for quantity required

$22.99

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 77348

805630 -- Governor spring - 2WT
(Superseded to 77348GS)

Note: Contact Generac for quantity required

$29.99

$

Usually ships in 2-12 days

0

209A

Briggs & Stratton 79282

805450 -- Governor idle spring

Note: Contact Generac for quantity required

$

$

Not available

222

Briggs & Stratton 79285

807610 -- Governor control bracket
(Superseded to 7079285YP)

Note: Contact Generac for quantity required

$3.49

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 72320

807528 -- Governor lever assembly

Note: Contact Generac for quantity required

$

$

Currently unavailable

232

Briggs & Stratton 70125

805465 -- Governor link spring

Note: Contact Generac for quantity required

$

$

Currently unavailable

239

Briggs & Stratton 60108

491657 -- Oil pressure switch

Note: Contact Generac for quantity required

$

$

Not available

243

Briggs & Stratton 70531

807598 -- Oil pump pick-up screen

Note: Contact Generac for quantity required

$

$

Currently unavailable

277

Briggs & Stratton 67884

805018 -- Washer

Note: Contact Generac for quantity required

$

$

Currently unavailable

305

Briggs & Stratton 66886

805406 -- Screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

307

Briggs & Stratton 67898

805025 -- Screw

Note: Contact Generac for quantity required

$

$

Not available

337

Briggs & Stratton 72347

491055 -- Spark plug
(Superseded to 491055S)

Note: Contact Generac for quantity required

$4.99

$

In Stock, Qty 20+

0

358

Briggs & Stratton 75258

807640 -- Gasket set

Note: Contact Generac for quantity required

$

$

Currently unavailable

370

Briggs & Stratton 75259

805484 -- Breather screw -- washer

Note: Contact Generac for quantity required

$

$

Currently unavailable

523

Briggs & Stratton 70158

807585 -- Dipstick

Note: Contact Generac for quantity required

$

$

Currently unavailable

524

Briggs & Stratton 67181

805259 -- Filter tube seal

Note: Contact Generac for quantity required

$

$

Currently unavailable

525

Briggs & Stratton 70151

807584 -- Oil filter tube

Note: Contact Generac for quantity required

$

$

Currently unavailable

552

Briggs & Stratton 72361

805412 -- Governor shaft bushing

Note: Contact Generac for quantity required

$

$

Not available

552A

Briggs & Stratton 72362

805413 -- Governor shaft bushing
(Superseded to 7072362YP)

Note: Contact Generac for quantity required

$13.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 80003

805381 -- Bolt

Note: Contact Generac for quantity required

$

$

Currently unavailable

572

Briggs & Stratton 70199

805197 -- Breather baffle

Note: Contact Generac for quantity required

$

$

Currently unavailable

592

Briggs & Stratton 72321

805383 -- Hex nut
(Superseded to 7072321YP)

Note: Contact Generac for quantity required

$26.99

$

Usually ships in 2-12 days

0

613

Briggs & Stratton 69397

805158 -- Screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

614

Briggs & Stratton 72366

805417 -- Cotter pin

Note: Contact Generac for quantity required

$

$

Currently unavailable

616

Briggs & Stratton 72367

807596 -- Governor fork

Note: Contact Generac for quantity required

$

$

Currently unavailable

634

Briggs & Stratton 72365

805416 -- Governor shaft washer
(Superseded to 7072365YP)

Note: Contact Generac for quantity required

$22.99

$

Usually ships in 2-12 days

0

635

Briggs & Stratton 70562

805529 -- Spark plug elbow

Note: Contact Generac for quantity required

$

$

Currently unavailable

718

Briggs & Stratton 68555

805103 -- Crankcase dowel

Note: Contact Generac for quantity required

$

$

Currently unavailable

718A

Briggs & Stratton 67806

805102 -- Cylinder head dowel

Note: Contact Generac for quantity required

$

$

Currently unavailable

722

Briggs & Stratton 75262

805482 -- Breather screw seal

Note: Included in Gasket Set, Part #807640; Included in Valve Overhaul Kit, Part NO. #807640; Contact Generac for quantity required

$

$

Currently unavailable

722A

Briggs & Stratton 75263

805483 -- Breather screw seal

Note: Included in Gasket Set, Part #807640; Included in Valve Overhaul Kit, Part NO. #807640; Contact Generac for quantity required

$

$

Currently unavailable

819

Briggs & Stratton 68572

805057 -- Screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

823

Briggs & Stratton 70542

805317 -- Mounting screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

842

Briggs & Stratton 80007

805386 -- O-ring

Note: Contact Generac for quantity required

$

$

Currently unavailable

864

Briggs & Stratton 67195

805083 -- Exhaust port liner

Note: Contact Generac for quantity required

$

$

Currently unavailable

868

Briggs & Stratton 70122

805094 -- Valve guide seal

Note: Contact Generac for quantity required

$

$

Currently unavailable

869

Briggs & Stratton 67910

805085 -- Intake valve

Note: Contact Generac for quantity required; Reqires Special Tools To Install See Repair Instruction Manual

$

$

Currently unavailable

870

Briggs & Stratton 67911

805086 -- Exhaust valve seat

Note: Contact Generac for quantity required; Reqires Special Tools To Install See Repair Instruction Manual

$

$

Currently unavailable

871

Briggs & Stratton 67813

805084 -- Valve guide
(Superseded to 67813GS)

Note: Contact Generac for quantity required; Reqires Special Tools To Install See Repair Instruction Manual

$9.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 67897

805024 -- Exhaust manifold gasket
(Superseded to 691613)

Note: Included in Gasket Set, Part #807640; Contact Generac for quantity required

$5.49

$

Usually ships in 2-12 days

0

978

Briggs & Stratton 68548

805250 -- Oil filter adapter gasket

Note: Included in Gasket Set, Part #807640; Contact Generac for quantity required

$

$

Not available

982

Briggs & Stratton 88527

805030 -- Screw

Note: Contact Generac for quantity required

$

$

Currently unavailable

1022

Briggs & Stratton 67920

805028 -- Valve cover gasket

Note: Included in Gasket Set, Part #807640; Included in Valve Overhaul Kit, Part NO. #807640; Contact Generac for quantity required

$

$

Currently unavailable

1023

Briggs & Stratton 69328

805100 -- Valve cover

Note: Contact Generac for quantity required

$

$

Currently unavailable

1024

Briggs & Stratton 70539

807644 -- Oil pump assembly

Note: Contact Generac for quantity required

$

$

Currently unavailable

1025

Briggs & Stratton 70536

805313 -- Governor slider

Note: Contact Generac for quantity required

$

$

Currently unavailable

1026

Briggs & Stratton 70577

805352 -- Rod intake push

Note: Contact Generac for quantity required

$

$

Currently unavailable

1027

Briggs & Stratton 70185

491056 -- Oil filter
(Superseded to 70185GS)

Note: Contact Generac for quantity required

$

$

Not available

1028

Briggs & Stratton 70514

805292 -- Oil filter adapter

Note: Contact Generac for quantity required

$

$

Currently unavailable

1029

Briggs & Stratton 70599

807557 -- Rocker arm

Note: Contact Generac for quantity required

$

$

Currently unavailable

1030

Briggs & Stratton 70567

805342 -- Rocker arm shaft

Note: Contact Generac for quantity required

$

$

Currently unavailable

1031

Briggs & Stratton 70566

805341 -- Rocker arm support

Note: Contact Generac for quantity required

$

$

Currently unavailable
